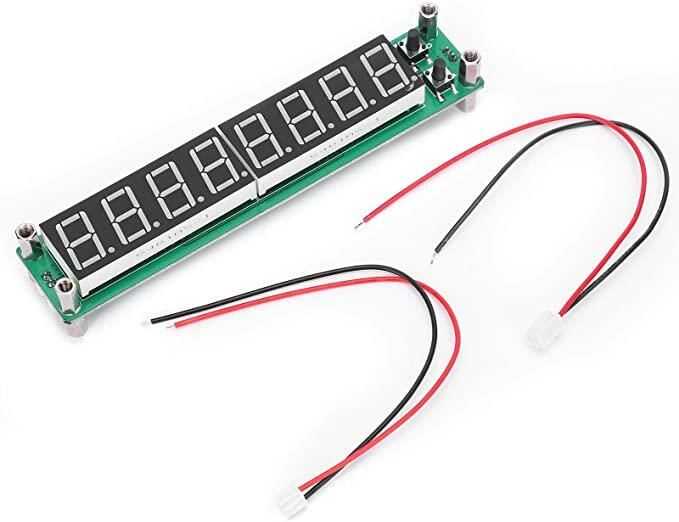

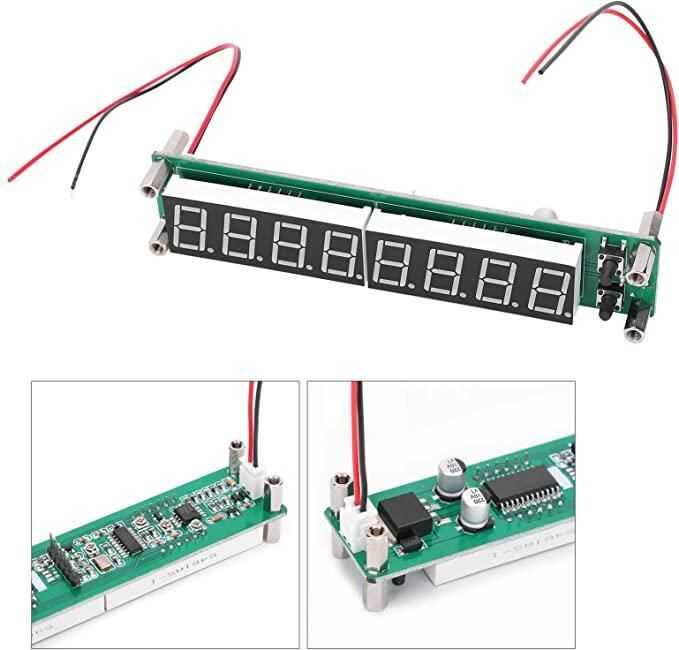

0.1-60MHz 20MHz~2.4GHz RF Signal Frequency Counter Simometer - Green
0.1-60MHz 20MHz~2.4GHz RF Signal Frequency Counter Simometer - Green.0.01 / It is a real-time signal frequency counter with 0.1 / 1 second screen refresh modes. It has 3 different frequency measurement modes (low / high / automatic channel). It is easy to use with 2 button controls.
Features
- Operating Voltage: 9-15VDC
- Operating Current: Max. 160mA
- Display Color: Green
- Dimensions: 125.5x25.5x21.5mm
Measurement Channels:
Low Channel
- Measurement Range: 0.1 MHz - 60 MHz
- Accuracy; 100Hz (0.01s at screen refresh)
- 10Hz (0.1s at screen refresh)
- 1Hz (1s at screen refresh)
Low Channel Sensitivity
- 0.1MHz - 10MHz: >60 mVPP
- 10MHz - 60MHz: >60mVPP
High Channel
- Measurement Range: 20 MHz - 2.4 GHz
- Accuracy; 6400Hz (0.01s at screen refresh)
- 640Hz (0.1s at screen refresh)
- 64Hz (1s at screen refresh)
High Channel Sensitivity
- 20MHz - 30MHz: >100 mVPP
- 30MHz - 60MHz: >50mVPP
Automatic Channel
Input signal frequency defining the 60 MHz frequency according to the high or low channel channel is selected automatically.
When the input signal amplitude is greater than 60 MHz, it cannot automatically select the high channel, you need to select the high channel manually.
