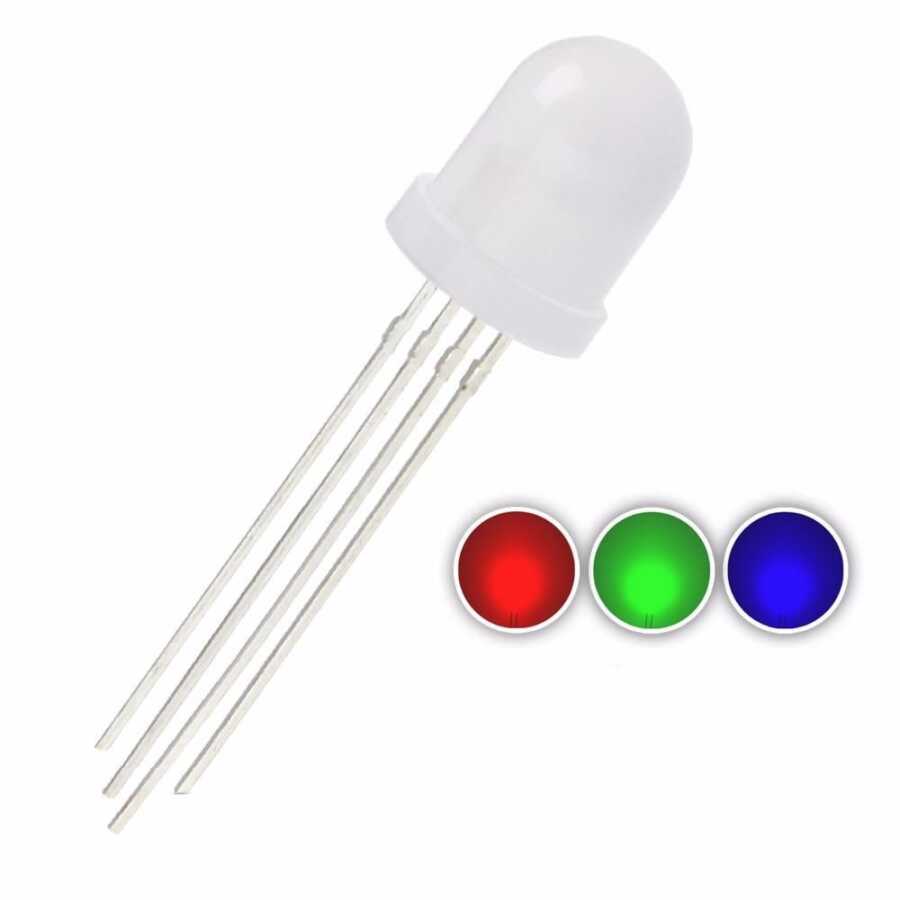

10mm RGB LED
RGB 4-Legged Common Cathode LED that can light in Red, Blue and Green colors. It is 10mm in size and has a 60 degree viewing angle. The longest leg is the minus (-) end. Colors can be controlled one by one by giving + voltage to the other legs, that is, it is the common cathode.
Technical Specifications
- RGB LED package
- 10mm diameter
- Red: 630 nm wave length, Green: 525 nm, Blue: 460 nm
- Red: 2-2.2V Voltage, at 20mA current, Green: 3.0-3.2V, Blue: 3.0-3.2V
- Red : 3000 mcd typical brightness, Green: 5000 mcd, Blue: 900 mcd
