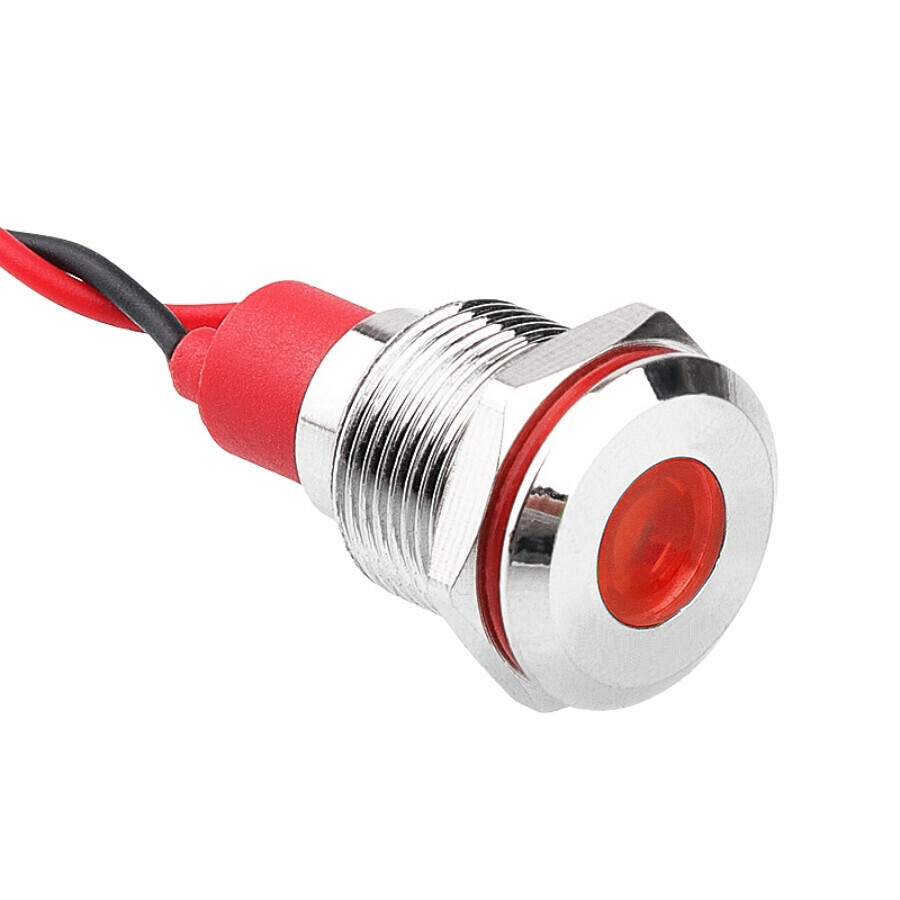

12L-P2 12mm 12-24V Wired Metal Signal Lamp - Red
12mm Wired Metal Signal Lamp is a product with IP67 waterproofness that you can use in various industrial applications, electronic projects, mass production projects. It is made of stainless steel. The product is sent with a sealing gasket.
Since it is stainless steel and has IP 67 protection, the signal lamps are suitable for outdoor and indoor use. It is preferred in places where long-lasting use is desired due to these features.
Technical Specifications:
- Working Voltage: 12-24V (LED starts to light after 3V, brightness increases as the voltage increases.)
- Color: Red
- Mounting Diameter: 12mm
- Material: Stainless Steel
- Waterproof Level: IP67
- Protection Class: Ik10
- Current: 3mA~20mA
- Cable Thickness: 26AWG
- Insulation resistance: ≥1000mΩ
- Working Temperature: -30 °C ~ 85 °C
For more detailed information and product technical drawings, you can access the detailed technical document of the product by clicking the link below.
