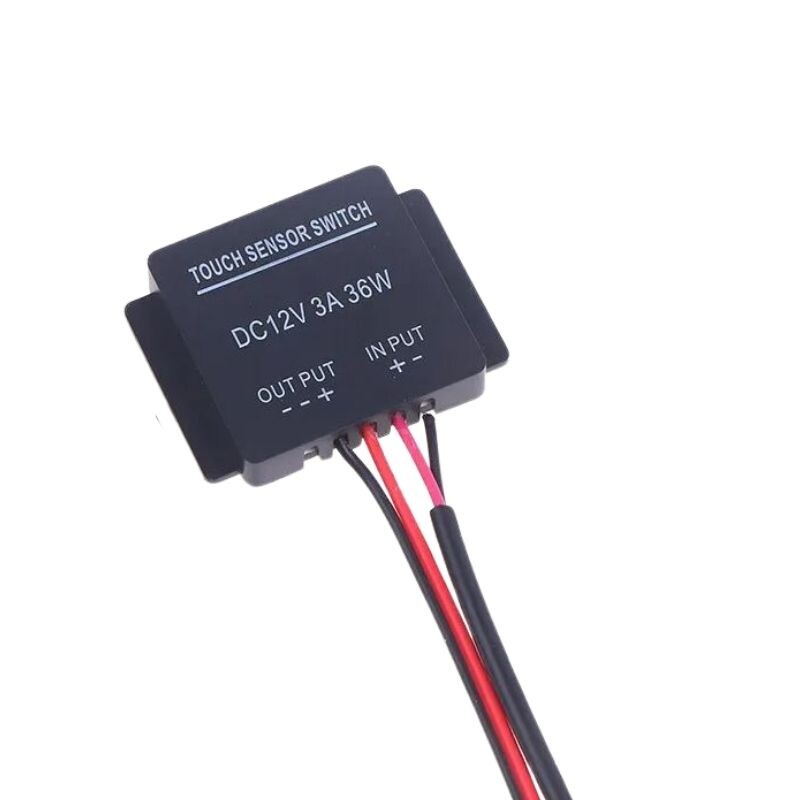

12V 3A Dokunmatik Led Sürücü Dimmer Modül

12V 3A Touch Led Driver Dimmer Module

12V 3A Touch LED Driver Dimmer Module is a 12V powered LED driver. It has on-off and dimming features. Since it is touch-sensitive, it opens when you press it once and closes when you press again. It dims when you press and hold it while it is on. If you want to reverse the dimming process, you need to release it and hold it down again. Thanks to the adhesives on the back, you can easily stick it wherever you want and use it. It can be used in various areas of the house, such as bathroom mirrors, make-up mirrors or wherever there is lighting. It supports up to 3 amps. You can use up to 3mm glass or transparent plastic over the touch contact area.

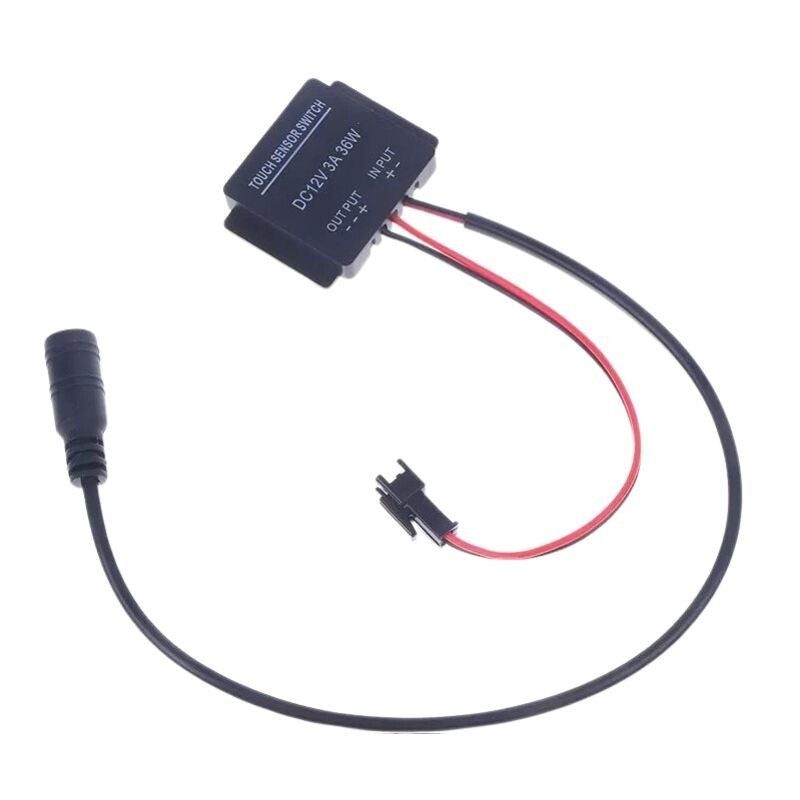

It is easy to connect. The input is made by supplying 12V power with a DC barrel jack. It can be powered by a 12V 3 amp adapter with a 5.5x2.5mm jack. Its output is JST-SM connector. You can use it by connecting it to your LED.

Technical Specifications

• Supply: 12VDC
• Rated Current: 3A
• Electrical Life: 300,000 uses
• Mechanical Life: 2,000,000 uses
• Input Cable Length: Approx. 280mm
• Output Cable Length: Approx. 140mm
• Inductive Thickness: 3mm
• Application Area: Home smart lighting, mirror

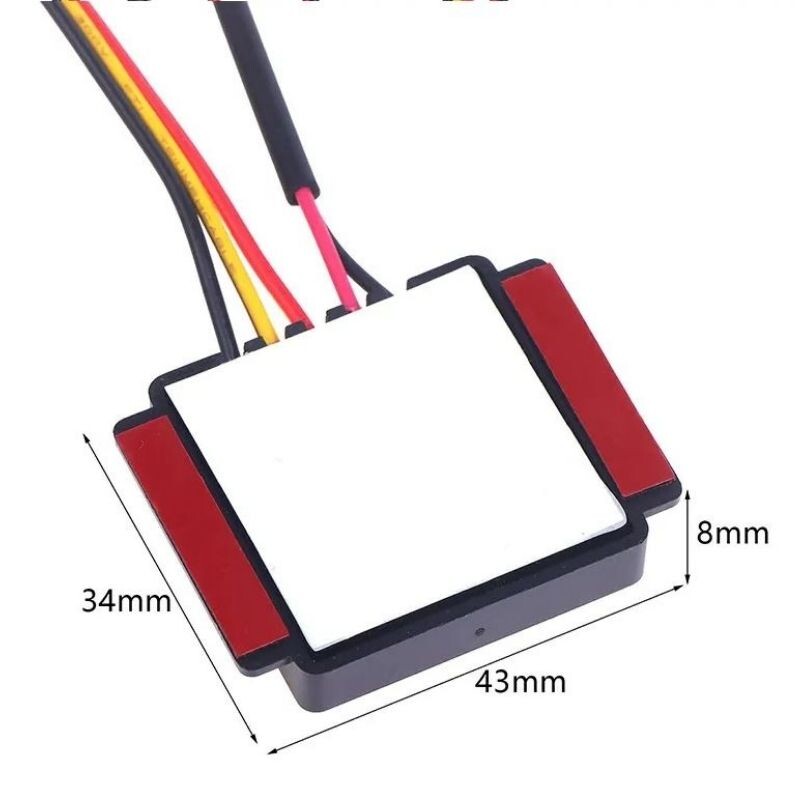

• Size: 43x34x8mm
