16Y-P1 16mm Keyed Latch Button 2NO+2NC

Ratings & Reviews (0)
Comment
Show More: Metal Latch Button
Brand: WDELE
Product Code: BTN.MTL.01.000624
Stokta 10+ ürün
193.60 TL + VAT
VAT Included: 232.32 TL

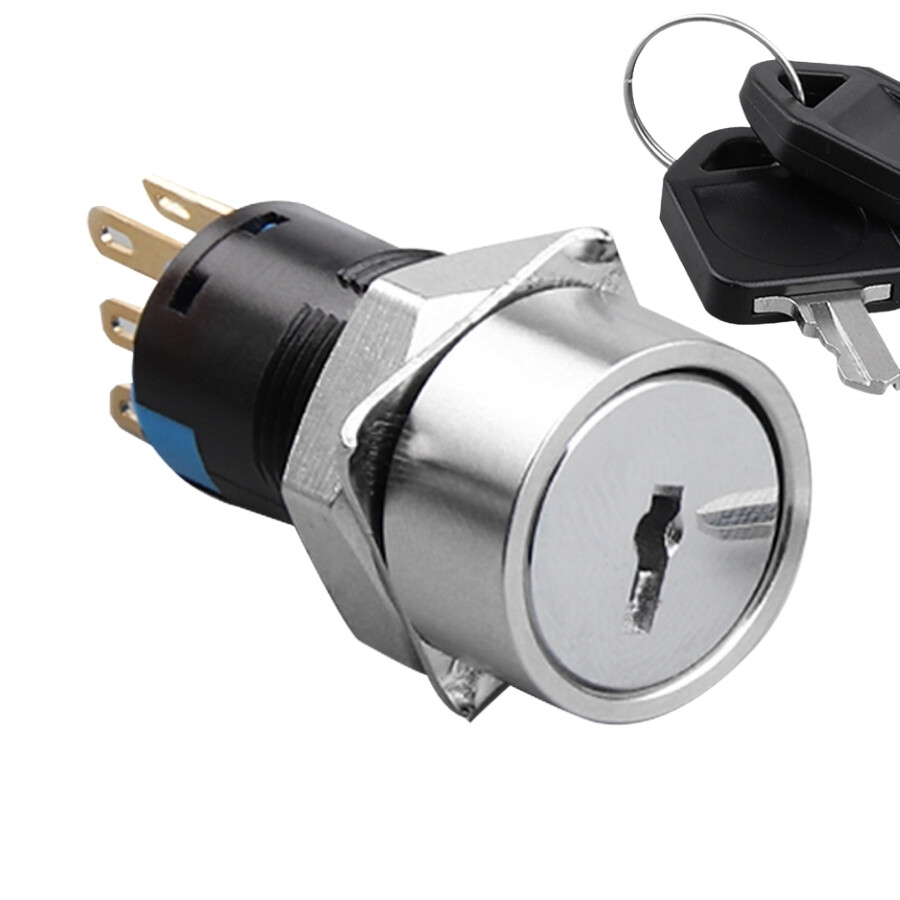

16Y-P1 16mm Keyed Latch Button 2NO+2NC

16Y-P1 16mm Keyed Latch Button 2NO+2NC. It is a product that is turned on and off by turning the latch on it. When the latch button is turned, it opens the NO terminal on the back and closes the NC terminal. This situation does not change until the key is returned to its original position.
The Latch Button is a product with IP65 waterproofness that you can use in various industrial applications, electronic projects, and mass production projects. It is made of stainless steel. The product is shipped with a sealing gasket.
The Latch Button is suitable for outdoor and indoor use due to its stainless steel and IP 65 protection. It is preferred in places where long-lasting use is desired due to these features.


Technical Specifications:

  • Switching Voltage: 250V AC/DC Max.
  • Current: 3A Max.
  • Contact: 2NO+2NC
  • Mounting Diameter: 16mm
  • Material: Stainless Steel
  • Water Resistance Level: IP65
  • Operating Temperature: -30 °C ~ 80 °C

For more detailed information, you can reach the detailed technical document of the product by clicking the link below.

Special symbols and logos are produced for you. For special productions, you can send an e-mail to info@motorobit.com.
Weight(Kg)
0.05
