19A-P1-E 19mm Flat Momentary Illuminated Metal Button - Red

Ratings & Reviews (0)
Comment
Show More: 19mm Metal Button
Brand: WDELE
Product Code: BTN.MTL.01.000093
Stokta 100+ ürün
113.34 TL + VAT
VAT Included: 136.01 TL

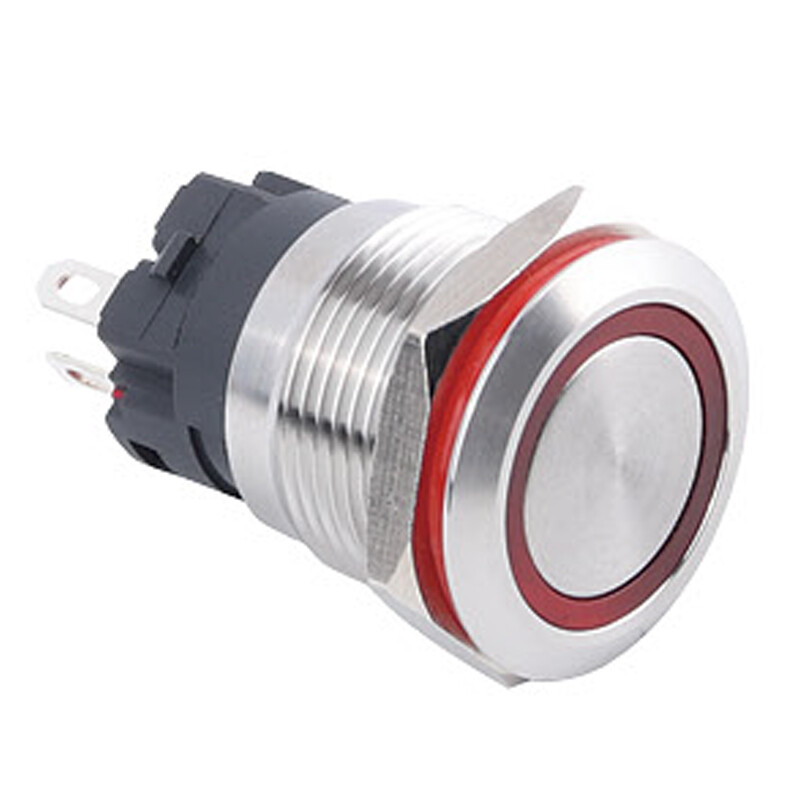

19A-P1-E 19mm Flat Spring Illuminated Metal Button - Red

19mm metal button is an IP65 waterproof product that you can use in various industrial applications, electronics projects and mass production projects. It is made of stainless steel. The product is shipped with a sealing gasket.

Metal buttons are suitable for outdoor and indoor use because they are stainless steel and have IP 65 protection. It is preferred due to these features in places where long-lasting use is required. In addition, as a button pressing structure, they have a much longer lifespan than plastic button types. The spring-loaded model has a lifespan of 500,000 presses, and the key-operated model has a lifespan of 250,000 presses.


19mm Metal Button Types

19mm Metal Button Types can be Spring-loaded or Key-operated depending on their usage. They are divided into two as follows. Spring buttons allow voltage to pass as long as they are held down. Models with a switch transmit energy when pressed for the first time, and turn off when pressed again.
The factors to consider when choosing a product are as follows;
  • Head Type: Protruding or Straight
  • Light: With or without light
  • Light Type: With or without Power Icon
  • Product Type: Key or Spring
This is what you need when choosing a product Details are clearly stated in the product image and name. Please pay attention to the name and image before purchasing.

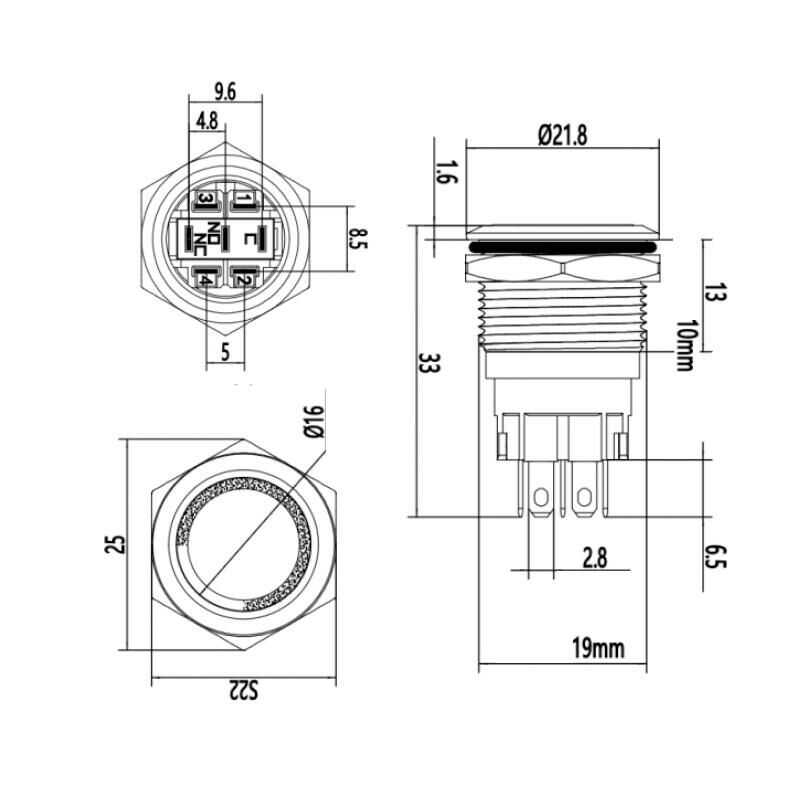

Technical Specifications:

  • Operation: Spring-Loaded
  • Mounting Diameter: 19mm
  • Material: Stainless Steel
  • Protection Level: IP65
  • Voltage: 12-24V
  • Current: 1.5A
  • Switch Contacts : 1NO and 1NC
  • Electrical Working Life: >50000
  • Compression Life: 500000 (spring model), 250000 (switch model)
  • Wiring: 26AWG
  • Operating Temperature: -30 °C ~ 85 °C

For more detailed information, you can access the detailed technical document of the product by clicking the link below.

We can produce for you with special symbols and logos. For special products, you can send an e-mail to info@motorobit.com.

Datasheet
Weight(Kg)
0.05
