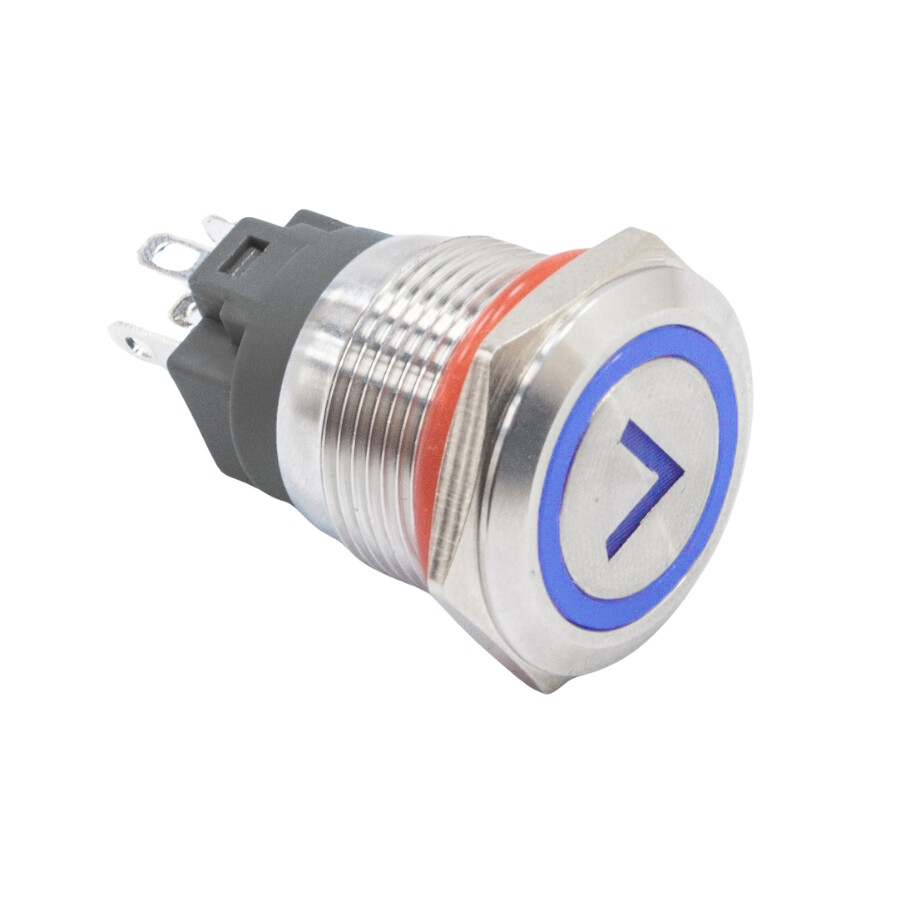

19FXHX 19mm Metal Button with Flat Momentary and Illuminated Arrow Mark - Blue
19mm metal button is an IP66 waterproof product that you can use in various industrial applications, electronic projects, mass production projects. It is made of stainless steel. The product is shipped with a sealing gasket.
Due to its IP 66 protection, metal buttons are suitable for outdoor and indoor use. It is preferred due to these features in places where long-lasting use is required.
19mm Metal Button Types
19mm Metal Button Types are divided into two types, Spring and Key, depending on their usage. They leave. Spring buttons allow voltage to pass as long as they are held down. Models with a switch transmit energy when pressed for the first time, and turn off when pressed again.
The factors to consider when choosing a product are as follows;
- Head Type: Protruding or Straight
- Light: With or without light
- Product Type: With Switch or Spring
These details required when choosing a product are clearly stated in the product image and name. Please pay attention to the name and image before purchasing.
Technical Specifications:
- Operation: Momentary

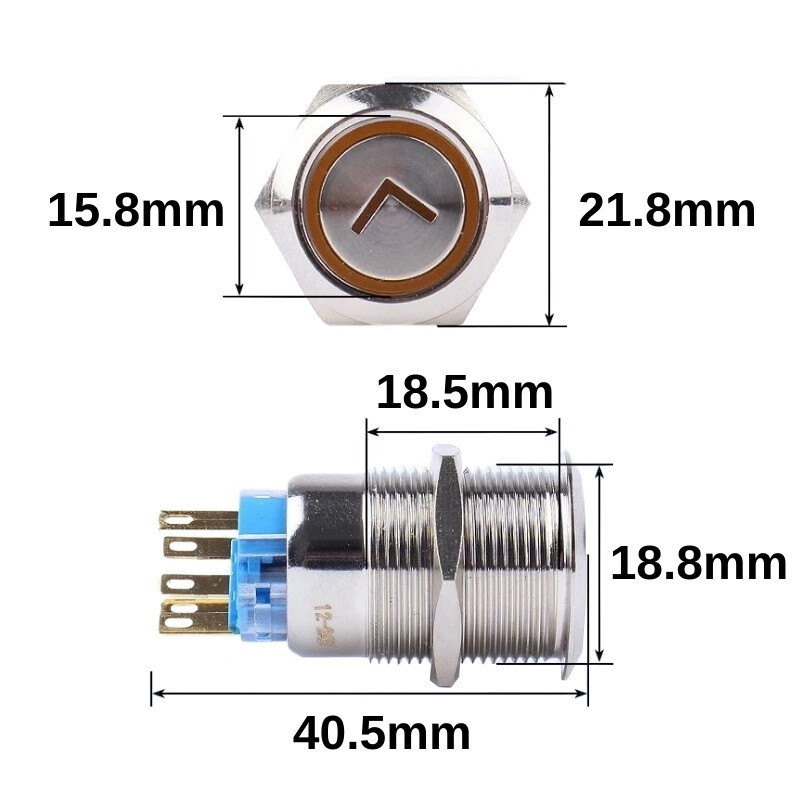

- Mounting Diameter: 19mm
- Protection Level: IP66
- Voltage: 12-24V
- Current: 3A
- Switch Contacts: 1NO 1NC
- Wiring: 26AWG
- Operating Temperature: -30 °C ~ 85 °C
Pinout
Connection
