1S 6A 18650 & Lipo Charging Circuit 3.7V - 4.2V
This is the charging circuit where you can charge your rechargeable batteries. It has a charging cut-off feature when the charge is full. It has small size and high amperage capacity. ,
Circuit Features:
- Overcharge protection
- Overdischarge protection.
- Short circuit protection.
- Overcurrent protection.
- Overcharge detection voltage: 4.25 + 0.05 V.
- Overcharge output voltage: 4.23 + 0.05V.
- Discharge detection voltage: 2.45 + 0.1 V.
- Ceiling continuous current: 6A.
- Overcurrent detection current: 7.5A.
- Input Charging voltage: 4.2V.
- IC components: DW01 + 8205A.

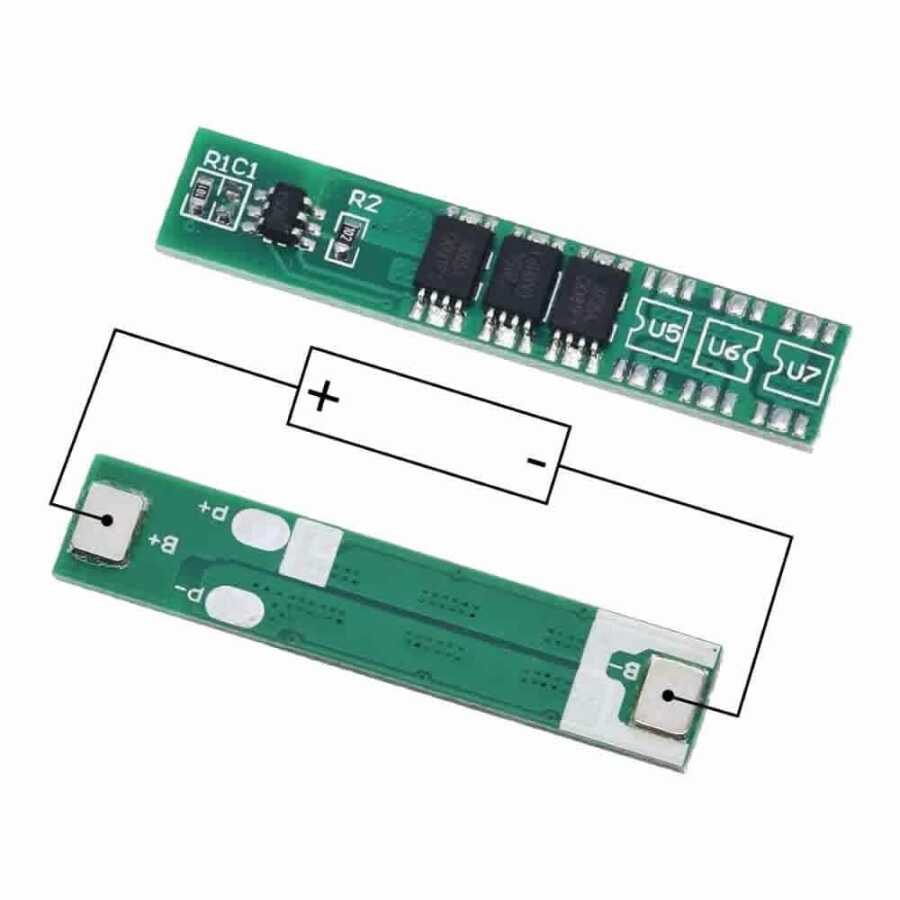

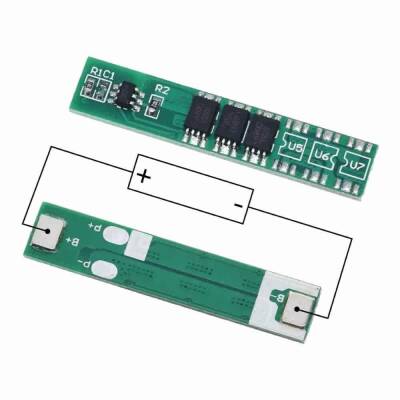

Wiring instructions:
Wiring instructions:
- B + battery positive.
- B - battery negative.
- P +, Positive Input
- P -, Negative Input
