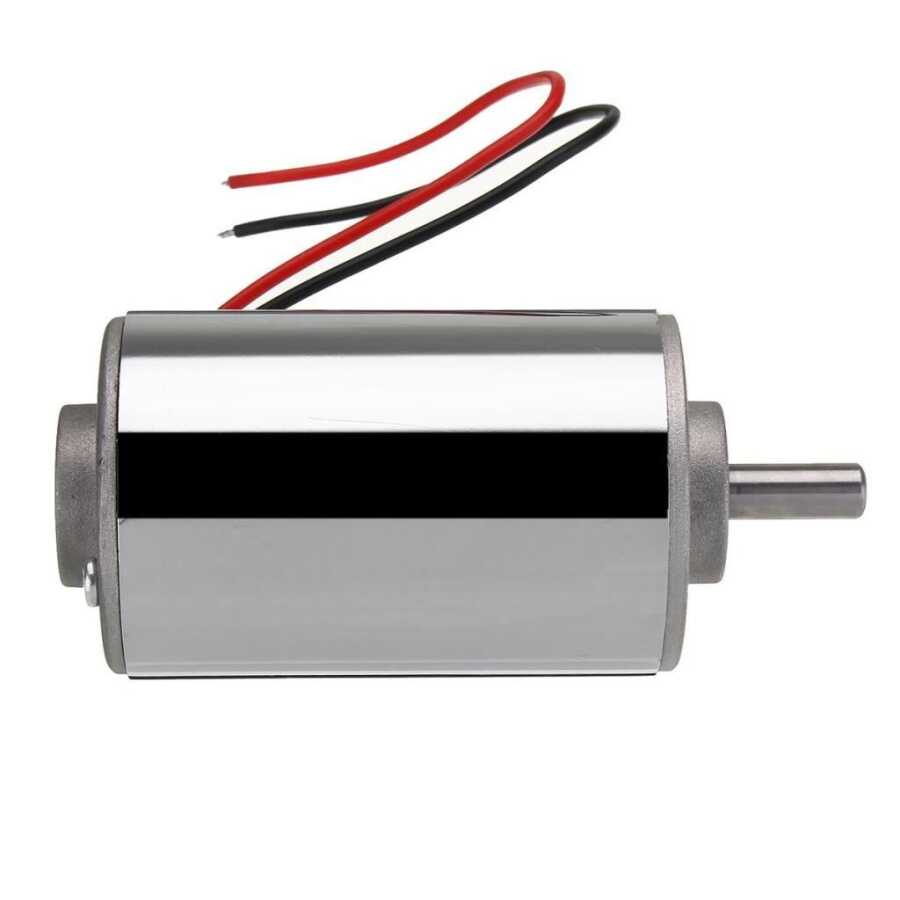

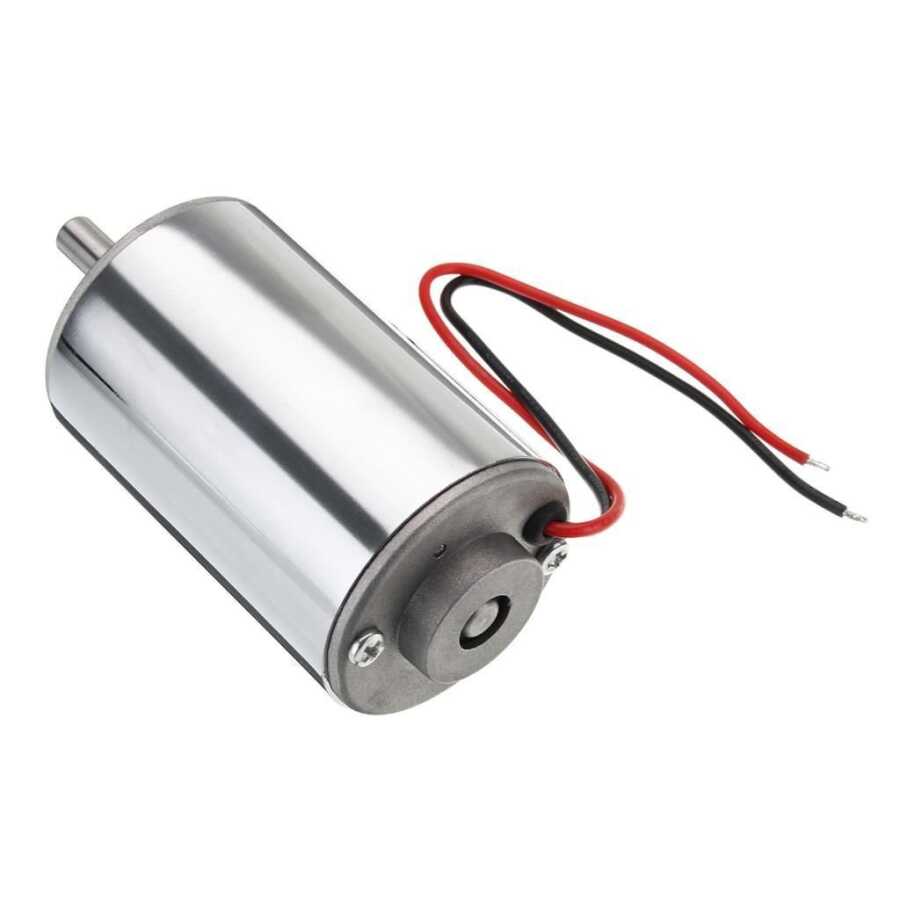

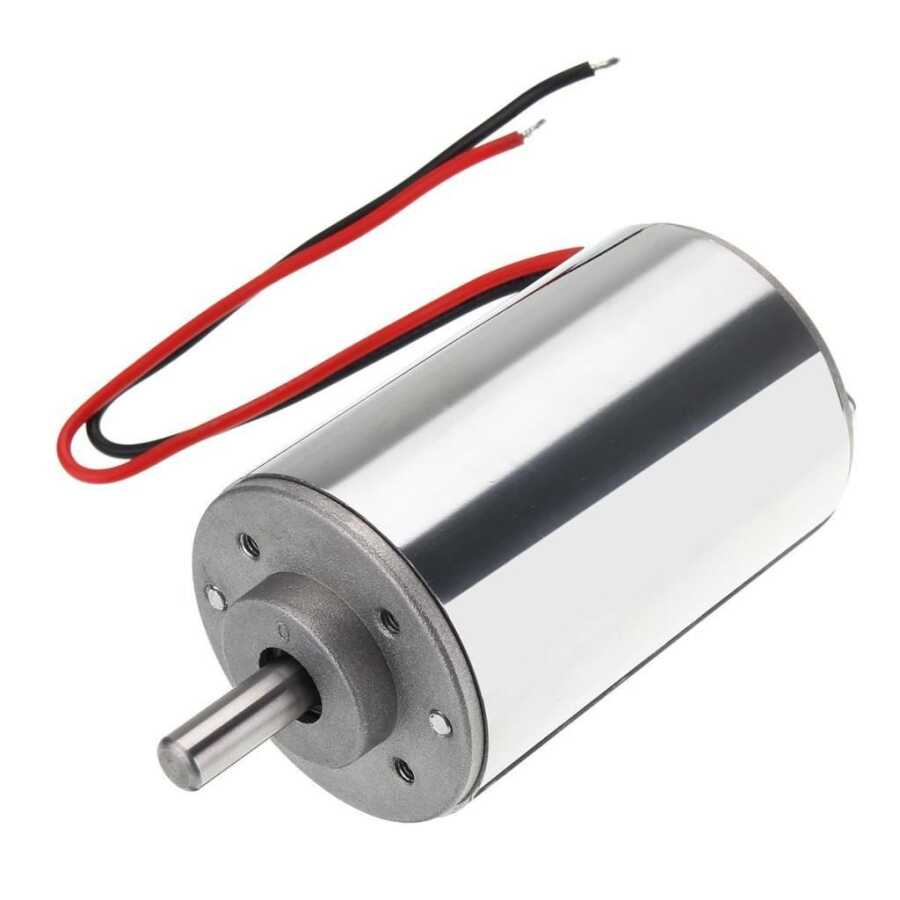

200W 12-48V CNC Spindle Motor
200W is a spindle motor that you can use in your CNC projects working with 12-48V. It is small in size. It requires fan cooling when it needs to be operated for a long time.
NOTE: Collet connections are not included.
Technical Specifications
- Operating Voltage: 12-48W
- Power: 200W
- Speed: 12V - 3000Rpm | 24V - 6000Rpm | 36V - 9000Rpm | 48V -12000Rpm
- Diameter: 52mm
- Total Length: 113mm
- Shaft Diameter: 8mm
- Shaft Length: 20mm
- Weight: 610g
