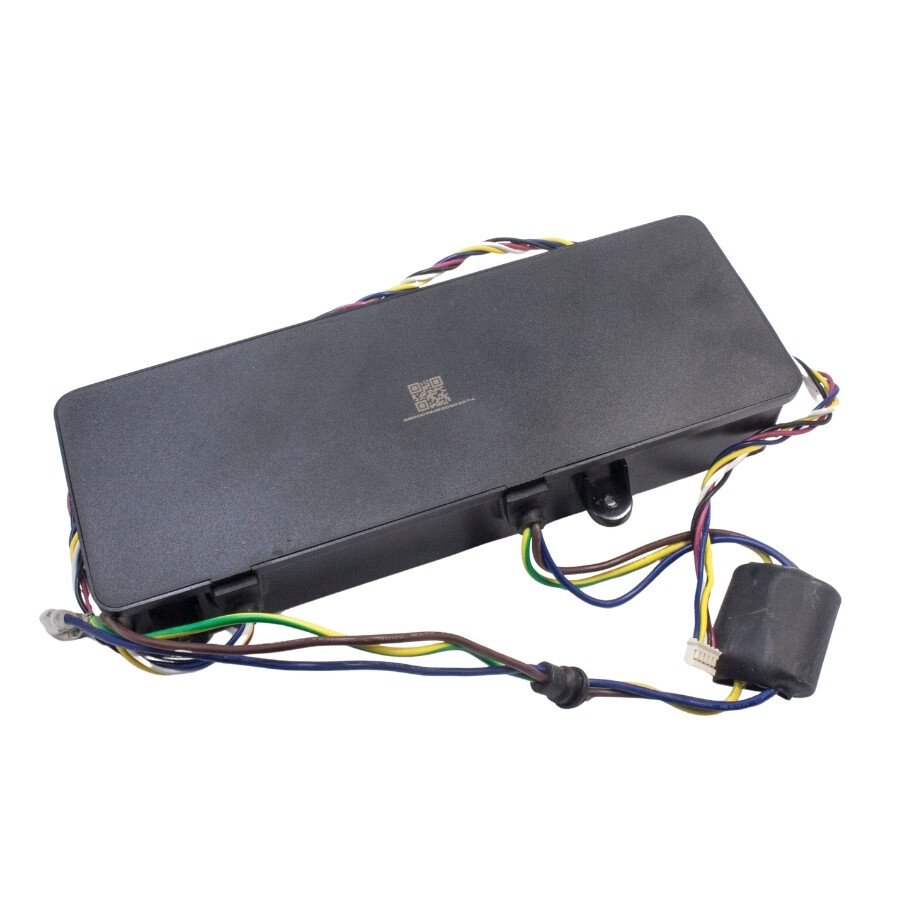

20V 6A Roborock Empty Washer Filling Dock Power Supply
20V 6A Roborock Empty Washer Filling Dock Power Supply is a power supply manufactured specifically for Roborock Dock and can also be used as an ac-dc converter. There is a plastic protective box on the outside of the circuit. You can also use it to power devices up to DC 20V 6 amps by providing power with a power cable.
There is a 3-way power socket on the product for voltage input. For the appropriate cable
you can click here. Product size is 20.5x7.5x3.5 cm. Cable is about 50 cm.
Output Pinout
- Red: +20V
- Black: GND
- White: Signal
- Yellow: PG-3V
- Blue: VO-3V

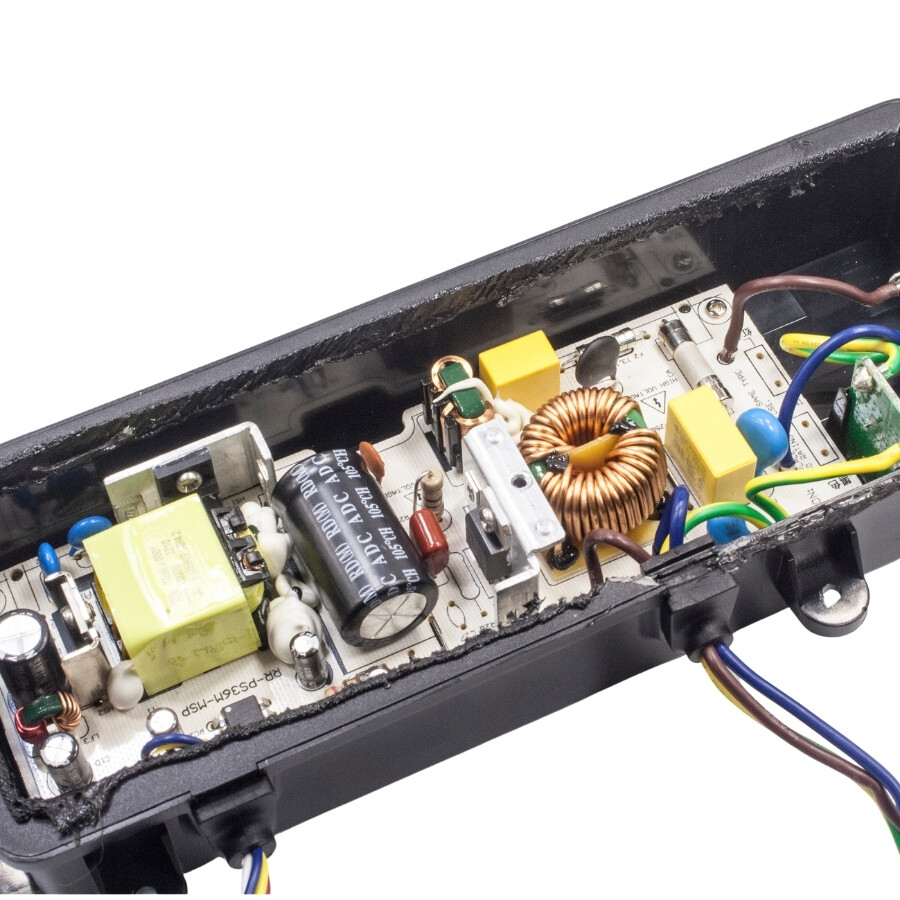

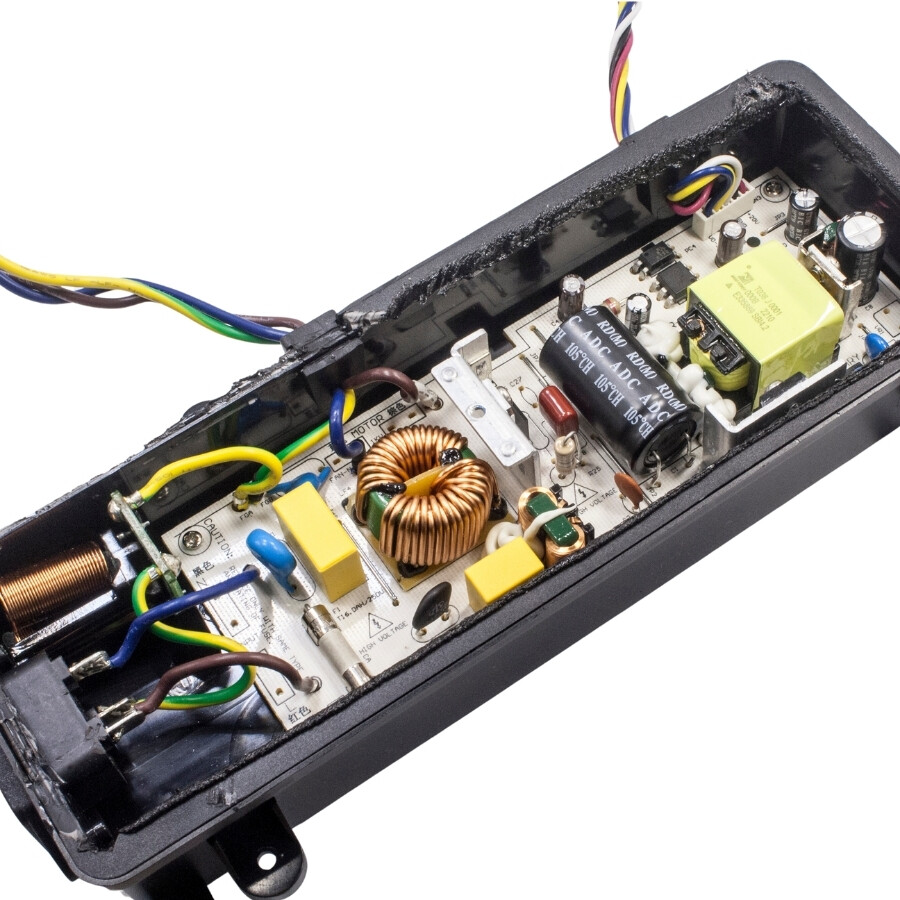

Circuit Board Code is RR-PS36M-MSP.
