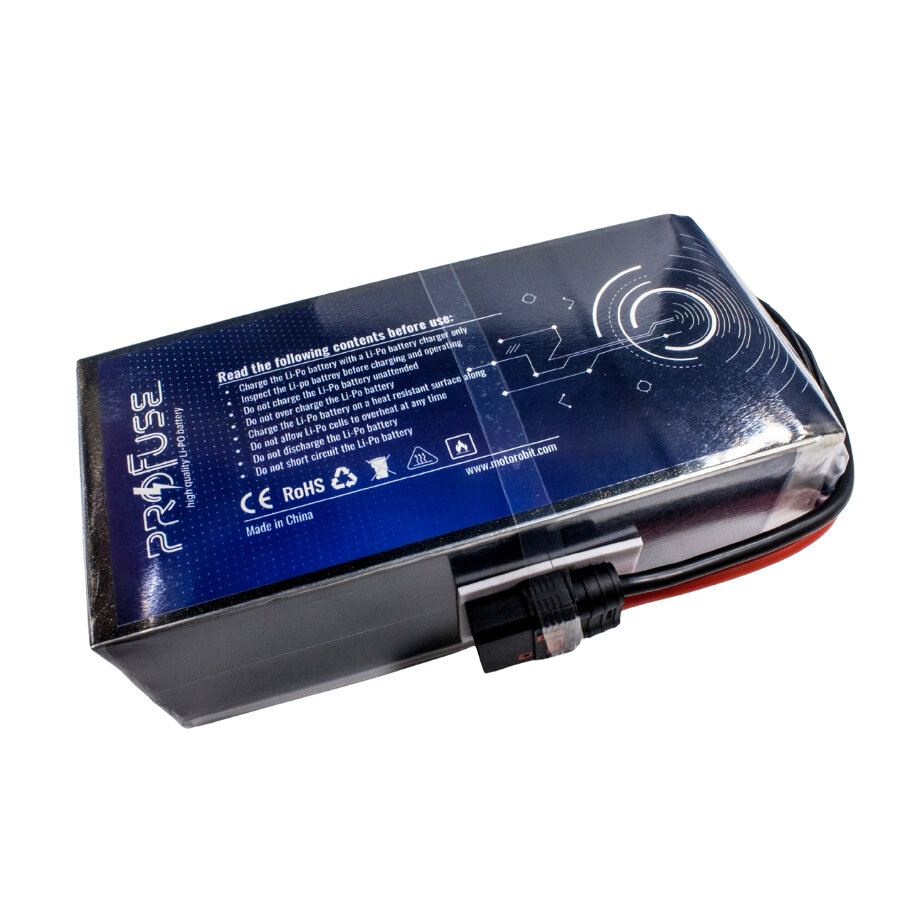

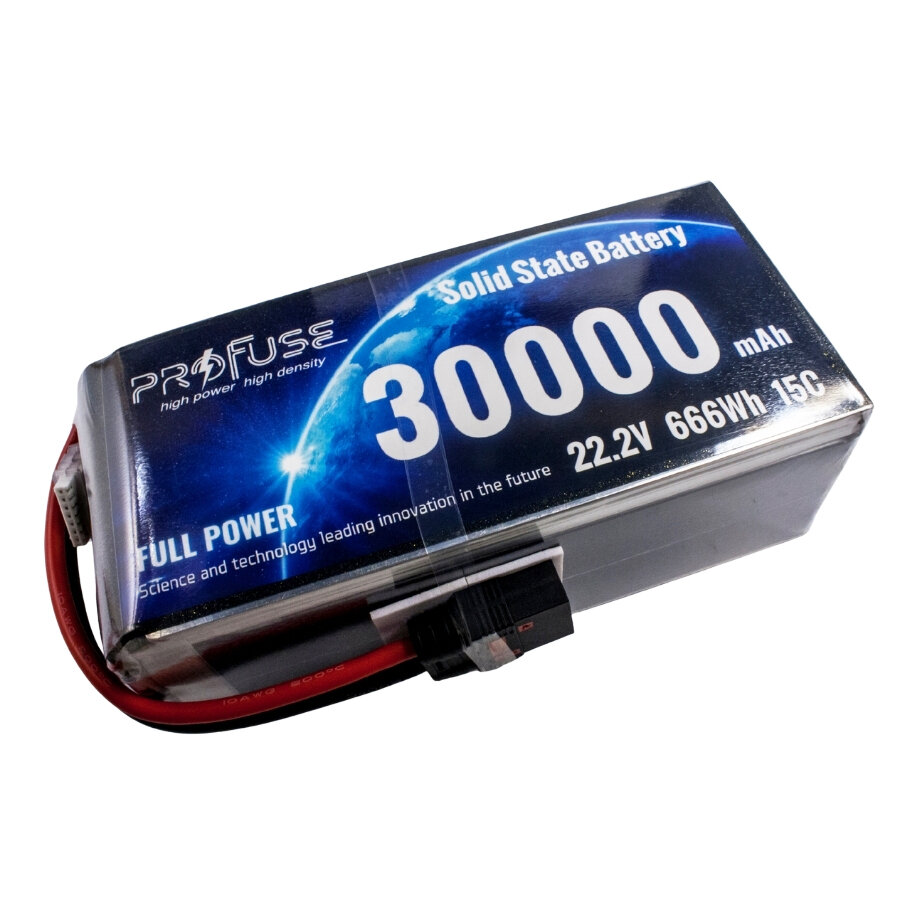

22.2V 6S 30000mAh 15C Solid State Lipo Battery
Power That Pushes the Limits! The highest performance, lowest weight and longest life are now in Motorobit Solid-State Li-Po batteries!
The innovative Solid-State technology offers a much safer, higher energy density and longer-lasting solution compared to traditional Li-Po batteries thanks to its solid electrolyte structure. It transmits energy with maximum efficiency with lower internal resistance, higher current capacity and ultra-fast charging support. Work without heat problems and safety risks in your projects requiring high power, get superior performance even in the most difficult conditions!
Each cell is selected with millimeter precision and produced to the highest quality standards. The Solid-State electrolyte structure minimizes energy losses and provides a longer-lasting and more stable power source. It is the perfect choice for drones, robotic projects, defense industry and competitive applications!
Use Motorobit Solid-State Li-Po batteries for real power and reliable energy, feel the difference!
Technical Specifications
- Voltage: 22.2V
- Capacity: 30000mAh
- 15C
- Weight: 2600gr
- Dimensions: 205x90x68mm
- 6 Cell
- XT150Has a socket tip
Measuring Your Lipo Battery’s Cell Levels
Your LiPo battery
Lipo Level Meter and Alarm Module We recommend using it with . This device can monitor each cell in your battery and alarm when the battery is too low. This is important for the maintenance of your battery. If you allow your battery voltage to get too low, the battery can be permanently damaged and unusable.
Charging Lipo Battery
C Value What is it?
The C value indicates how fast the battery can deliver energy compared to its capacity. For example, a battery with a capacity of 2200mAh and a value of 25C can deliver 2200mAh x 25 = 55,000mA or 55A current. This means that the battery can deliver such a high current for a short time.
Things to Consider When Using Lipo Batteries
- The terminal cables of Lipo batteries should NEVER touch each other. Short circuits should not be made.
- For efficient operation of lipo batteries, it is necessary to pay attention to the range of 3.00V - 4.20V per cell.
- If any cell of the battery you are using falls below 3V, there is a risk of the battery ending its life.
- Overcharging, i.e. charging more than 4.20V, also has safety risks.
- A LiPo battery should not be discharged below 3V. Considering that the capacity will decrease as the battery ages, the battery should be discharged by following the 80% rule. In other words, the LiPo battery should be discharged to the value that occurs when 80% of its capacity value is calculated. If this rule is not followed, the batteries may swell and explode.
- LiPo batteries should not be opened and LiPo batteries should not be allowed to come into contact with water.
- Lipo batteries should only be charged with lipo battery chargers. Charging with the wrong charger causes the battery to swell and is dangerous.
We recommend that you read our blog post about Lipo Battery usage.
