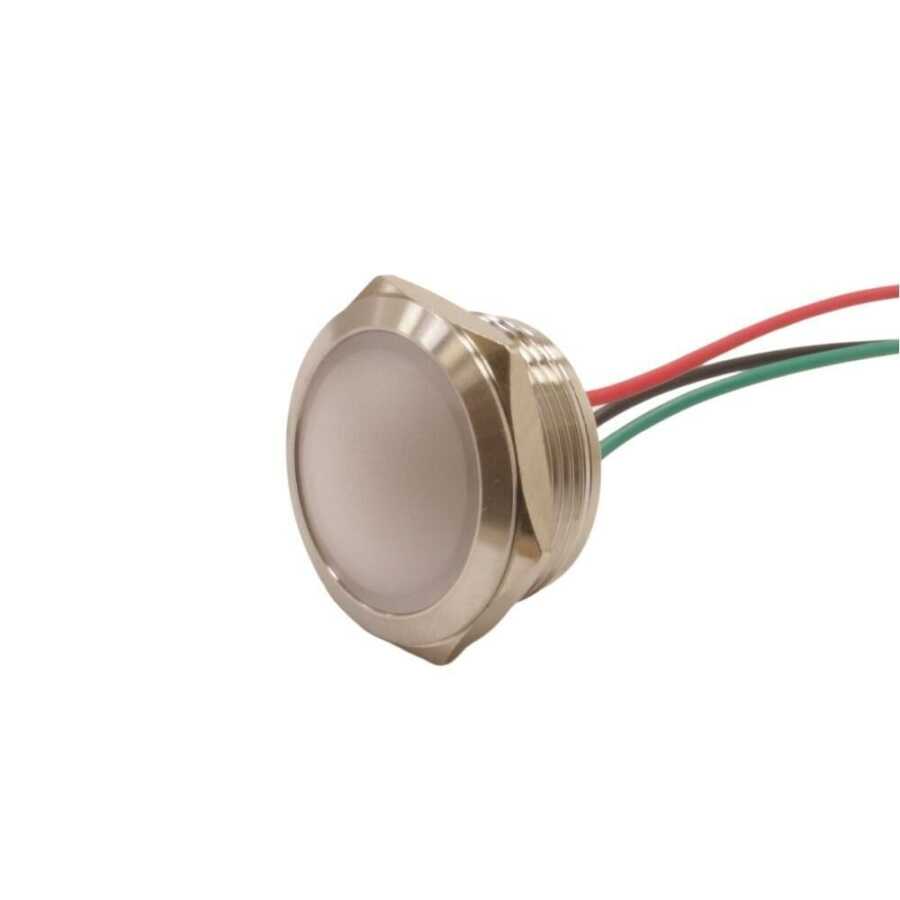

22L-P1/RGY- 22mm 12-24V Wired Metal Signal Lamp - 3 Colors Cathode
22mm Wired Metal Signal Lamp is an IP67 waterproof device that you can use in various industrial applications, electronic projects, mass production projects. is the product. It is made of stainless steel. The product is shipped with a sealing gasket.
Since it is made of stainless steel and has IP 67 protection, the signal lamps are suitable for outdoor and indoor use. It is preferred due to these features in places where long-lasting use is required.
Technical Specifications:
- Operating Voltage: 12-24V (LED starts to give light after 3V, the brightness increases as the voltage increases.)
- Color: Red/Green/Yellow
- Mounting Diameter: 22mm
- Material: Stainless Steel
- Waterproofing Level: IP67
- Protection Class: Ik10
- Current : 3mA~20mA
- Cable Thickness: 26AWG
- Insulation resistance: ≥1000mΩ
- Operating Temperature: -30 °C ~ 85 °C
For more detailed information and product technical drawing, you can access the detailed technical document of the product by clicking the link below.
