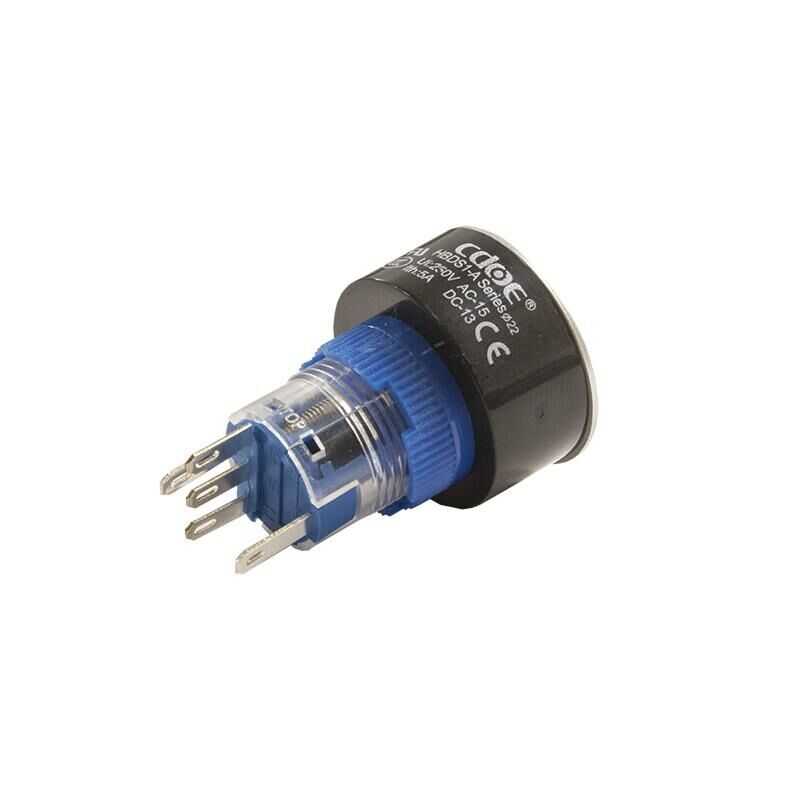

22mm 24V White Permanent Button CD-AWY-11DZ/24V/W



22mm 24V Permanent Button. It is a type of button that you can use in various electronic and industrial applications. The light on the product operates with 10-30V. This button is both NO and NC contact. These two contacts can also be used together.



It is sufficient to press this button once to transfer energy. When pressed again, energy transfer ends. So the button is the permanent model. Our models, which transmit energy as long as they are pressed, have spring in their name.



Features:

• Led Voltage: 10-30V
• Contact Current: 250VAC 5A
• Number of Pins: 5 Pin
• Contact: 1NO / 1NC
