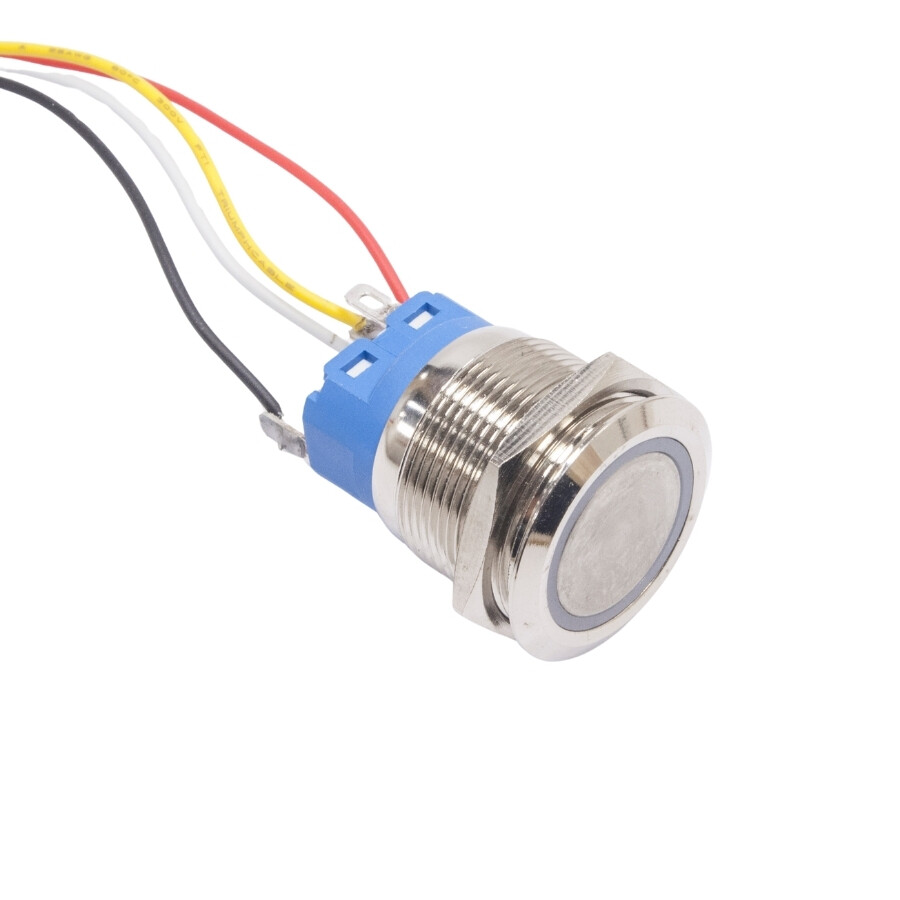

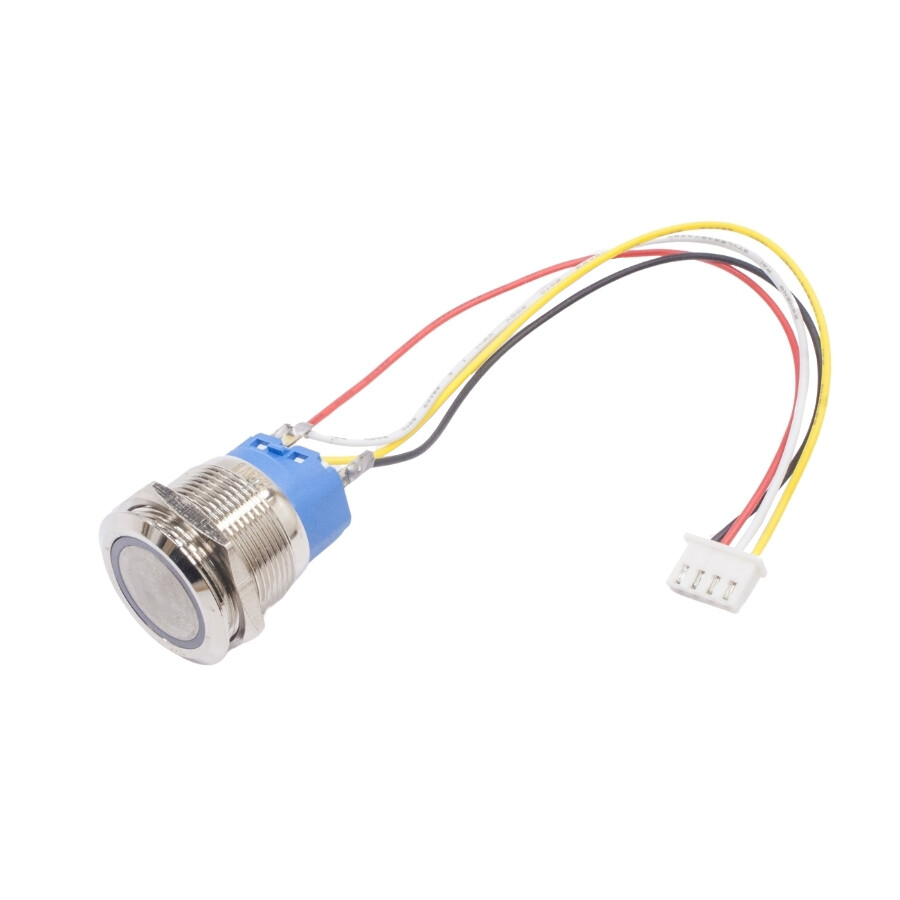

22mm Flat Spring Blue Illuminated Metal Button - Wired
22mm metal button is a product with IP66 waterproofness that you can use in various industrial applications, electronic projects and mass production projects. It is made of stainless steel. The product is shipped with a sealing gasket.
Metal buttons are suitable for outdoor and indoor use because they are stainless steel and have IP 66 protection. It is preferred due to these features in places where long-lasting use is required. In addition, as a button pressing structure, they have a much longer lifespan than plastic button types. The spring-loaded model has a lifespan of 500000 presses, and the key-operated model has a lifespan of 250000 presses.
22mm Metal Button Types
22mm Metal Button Types can be Spring or Keyed depending on their usage. They are divided into two as follows. Spring buttons allow voltage to pass as long as they are held down. Models with a switch transmit energy when pressed for the first time, and turn off when pressed again.
The factors to consider when choosing a product are as follows;
- Head Type: Protruding or Straight
- Light: With or without light
- Light Type: Power With Icon or Not
- Product Type: With Switch or Spring
These details required when choosing a product are in the product image and It is clearly stated in the name. Please pay attention to the name and image before purchasing.
Technical Specifications:
- Operating Method: With Switch
- Mounting Diameter: 22mm
- Material: Stainless Steel
- Protection Level: IP66
- Voltage: 12-24V
- Current: 3A
- Switch Contacts: 1NO and 1NC
- Electrical Working Life: >250000
- Compression Life: 500000 (spring model), 250000 (switch model)
- Wiring: 20AWG
>- Operating Temperature: -30 °C ~ 85 °C
