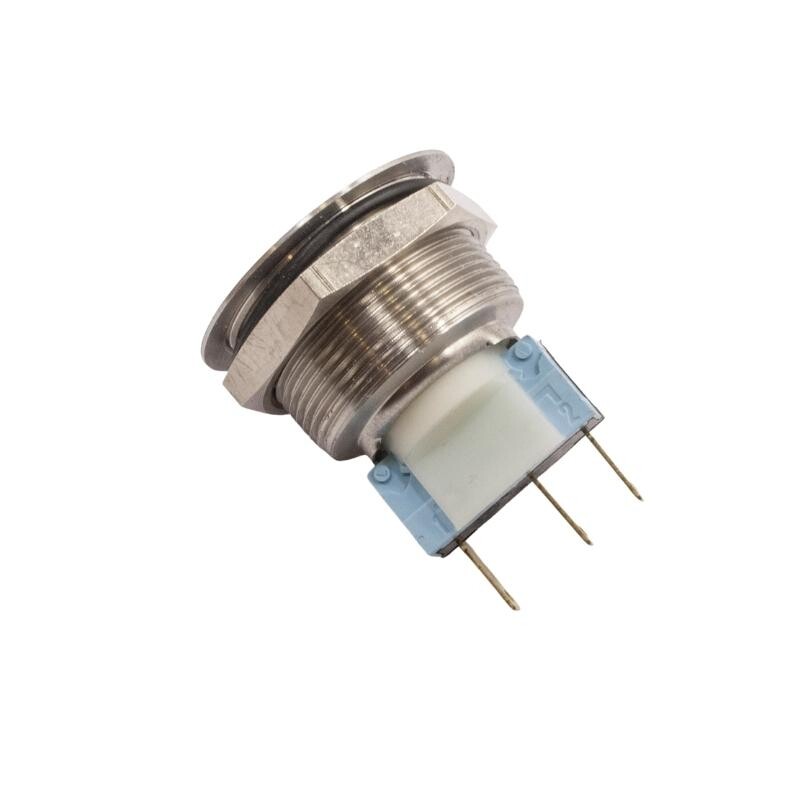

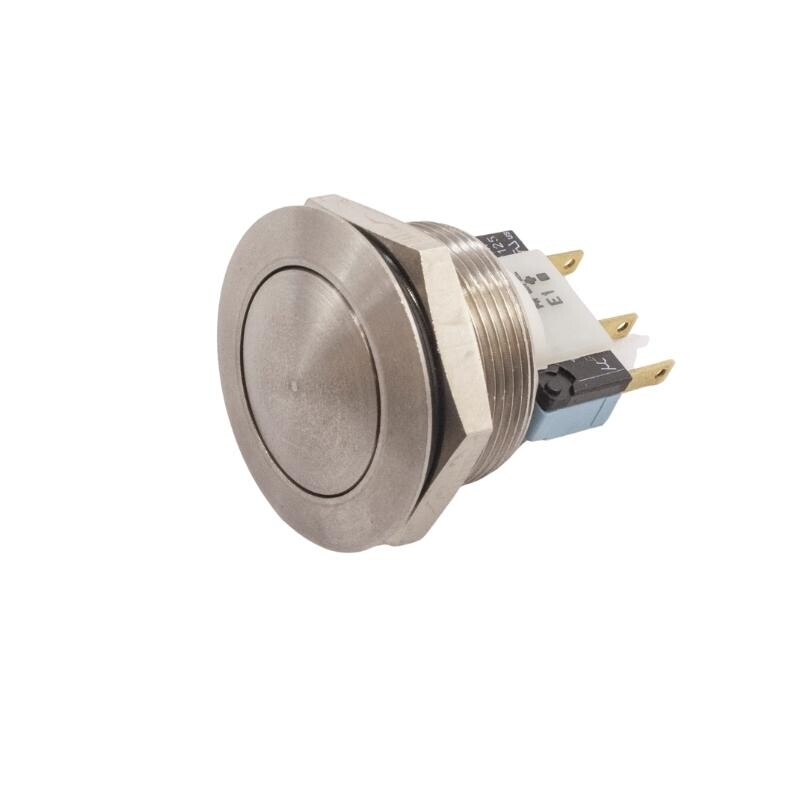

24mm Flat Momentary Metal Button - AV24LB404
24mm metal button is a product that you can use in various industrial applications, electronic projects and mass production projects. The product is shipped with a sealing gasket.
24mm Metal Button Types
24mm Metal Button Types are divided into two, Spring and Key, depending on their usage. Spring buttons allow voltage to pass as long as they are held down. Models with a switch transmit energy when pressed for the first time, and turn off when pressed again.
The factors to consider when choosing a product are as follows;
- Head Type: Protruding or Straight
- Light: With or without light
- Light Type: Power With Icon or Not
- Product Type: With Switch or Spring
These details required when choosing a product are in the product image and It is clearly stated in the name. Please pay attention to the name and image before purchasing.
Technical Specifications:
- Operation: Momentary
- Mounting Diameter: 24mm
- Protection Class: IP65
- Voltage: 12-24V
- Current: 5A
- Switch Contacts: 1NO and 1NC
- Operation Temperature: -30 °C ~ 70 °C
Datasheet
