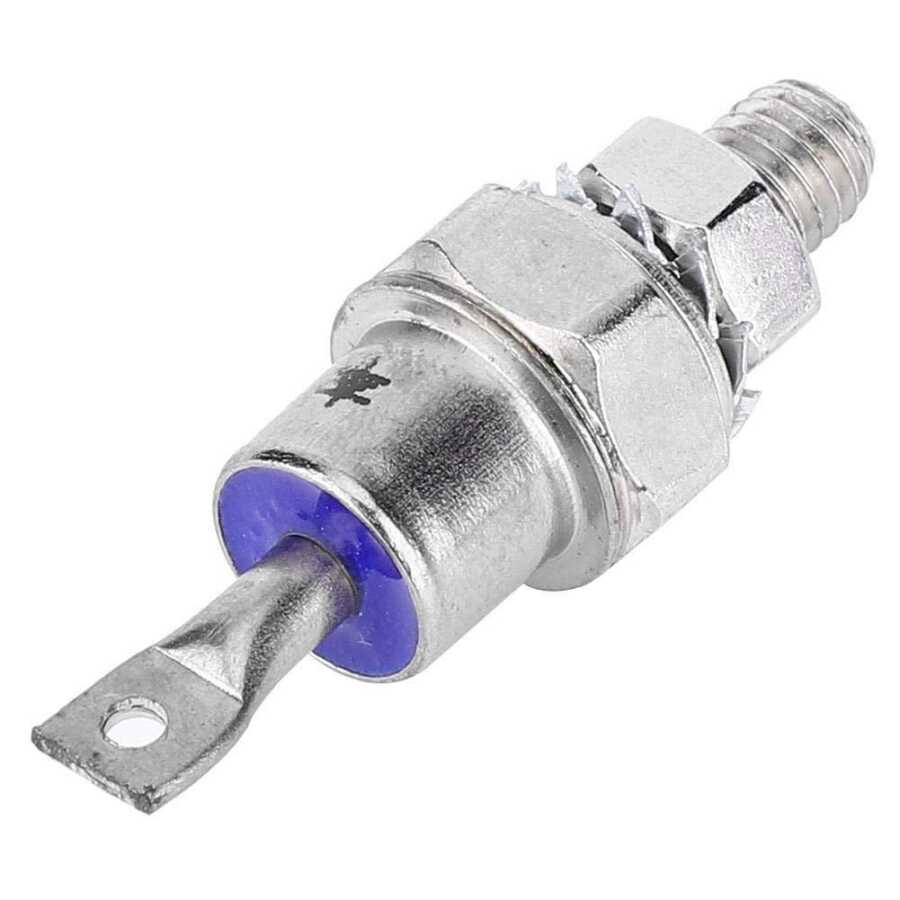

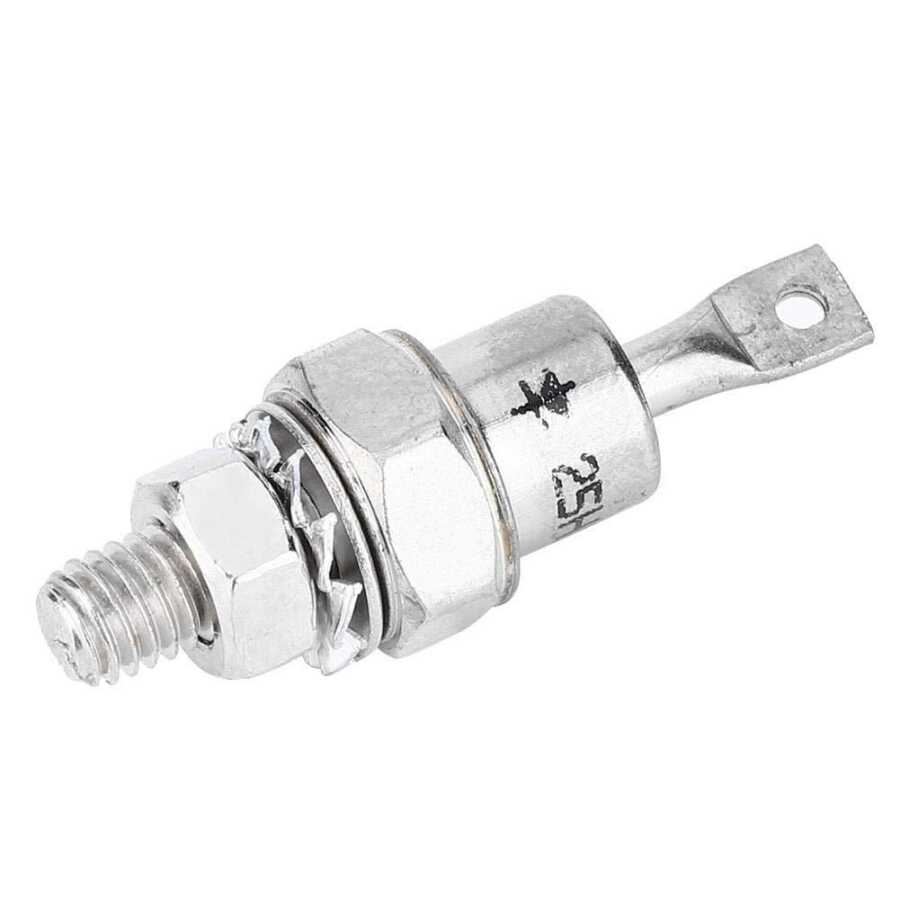

25HF120 25A 1200V Metal Screw Diode - Anode
High energy resistant screw diode with metal sheath. Metal screw diodes are preferred circuit elements especially due to their resistance to high amperage and voltage.
Features:
- Package: DO-4
- Voltage (Vr) ): 1200 V
- Current: 25 A
- Vf - Forward Voltage:1.3 V
- Minimum Operating Temperature:- 65 C
Maximum Operating Temperature:+ 190 C
- Length: 33 mm
- Width: 12 mm
- Anode
