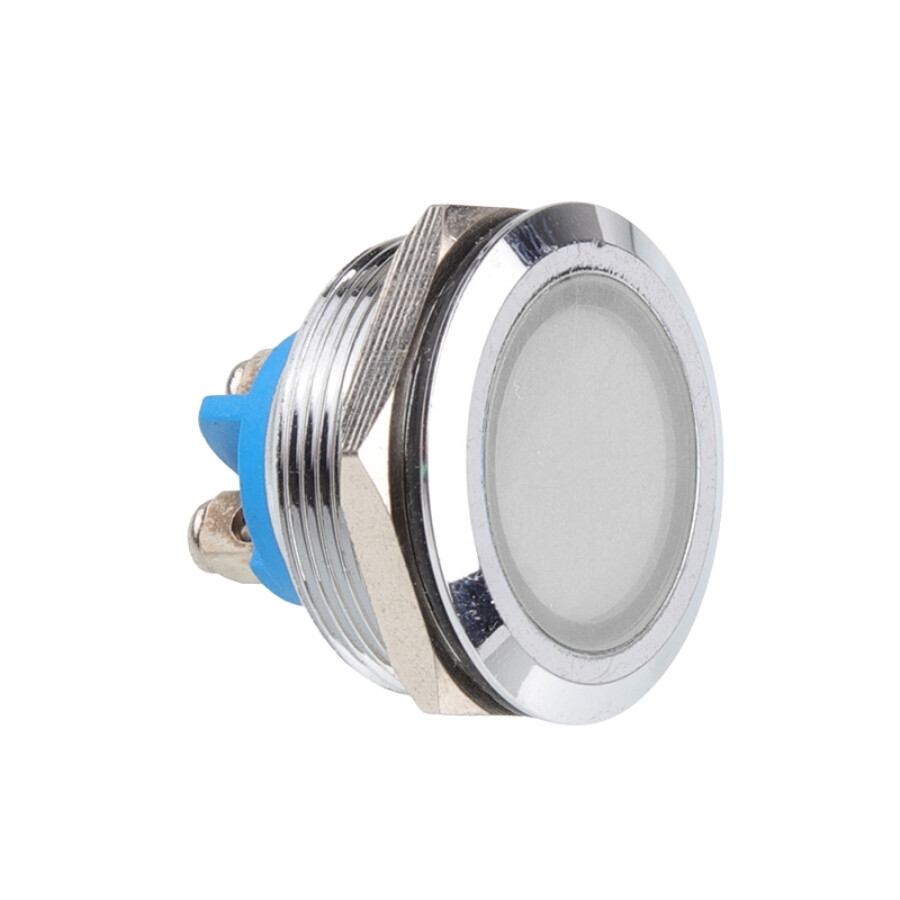

25L-P1 25mm 12-24V Metal Signal Lamp - White

Ratings & Reviews (0)
Comment
Show More: 25mm Signal Lamp
Brand: WDELE
Product Code: BTN.MTL.01.000513
Stokta 100+ ürün
139.39 TL + VAT
VAT Included: 167.27 TL

25L-P1 25mm 12-24V Metal Signal Lamp - White


25mm Metal Signal Lamp is a product with IP67 waterproofness that you can use in various industrial applications, electronic projects, mass production projects. It is made of stainless steel. The product is shipped with a sealing gasket.

Since it is made of stainless steel and has IP 67 protection, the signal lamps are suitable for outdoor and indoor use. It is preferred due to these features in places where long-lasting use is required.


Technical Specifications:

  • Operating Voltage: 12-24V (LED starts to give light after 3V, the brightness increases as the voltage increases.)
  • Color: White
  • Mounting Diameter: 25mm
  • Material: Stainless Steel
  • Waterproofing Level: IP67
  • Protection Class: Ik10
  • Current: 3mA~20mA
  • Insulation resistance: ≥1000mΩ
  • Operating Temperature: -30 °C ~ 85 °C

For more detailed information and product technical drawing, you can access the detailed technical document of the product by clicking the link below.

Weight(Kg)
0.05
