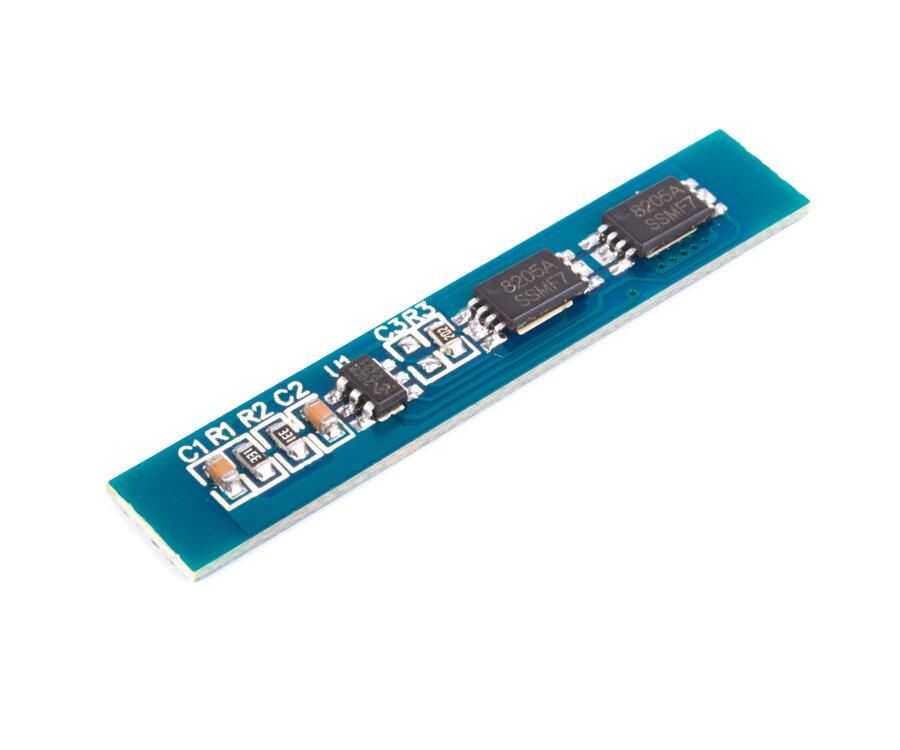

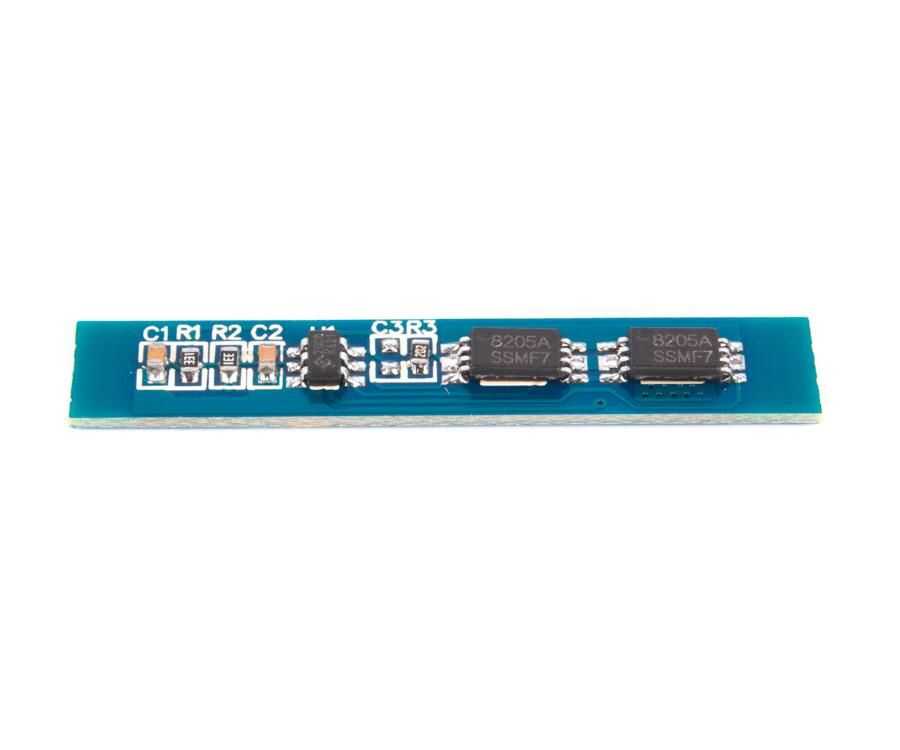

2S LiPo & Lion & 18650 Battery Charging Circuit
2S 3A FCD-2S-2 You can charge your rechargeable batteries with the lithium battery charging circuit. Since its size is quite small, it is ideal especially for your projects with space constraints. This small and smart battery charging protector The module has various features such as Short circuit protection, Overcharge protection, Overdischarge protection, Overcurrent protection.
FCD-2S-2 Pin Descriptions:
- MB: Connection point between batteries
- B +: Battery V + Positive
- B-: Battery V-Negative
- P + Charge V +
- P-: Charge V-
Specifications:

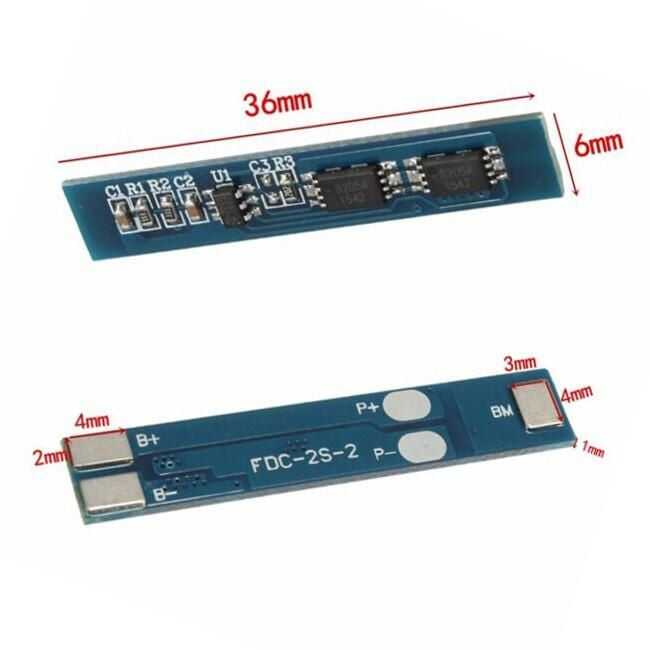

- Size: Approx. .36 x 6 x 1 mm (LxWxH).
- Over Discharge Detection Voltage: 2.3-3.0V ± 0.05V
- Maximum Operating Current: 3A
- Transient current: 5a
- Operating Temperature: -40-50 C
- Internal Resistance: Less than 45m
- B + B-: Battery core interface
- P + P-: Connector of the battery board
- MB: Connection point between the batteries.
