2W-160-15J AC 220V NC Electromagnetic Valve - Solenoid Valve

2W-160-15J AC 220V NC Electromagnetic Valve - Solenoid Valve

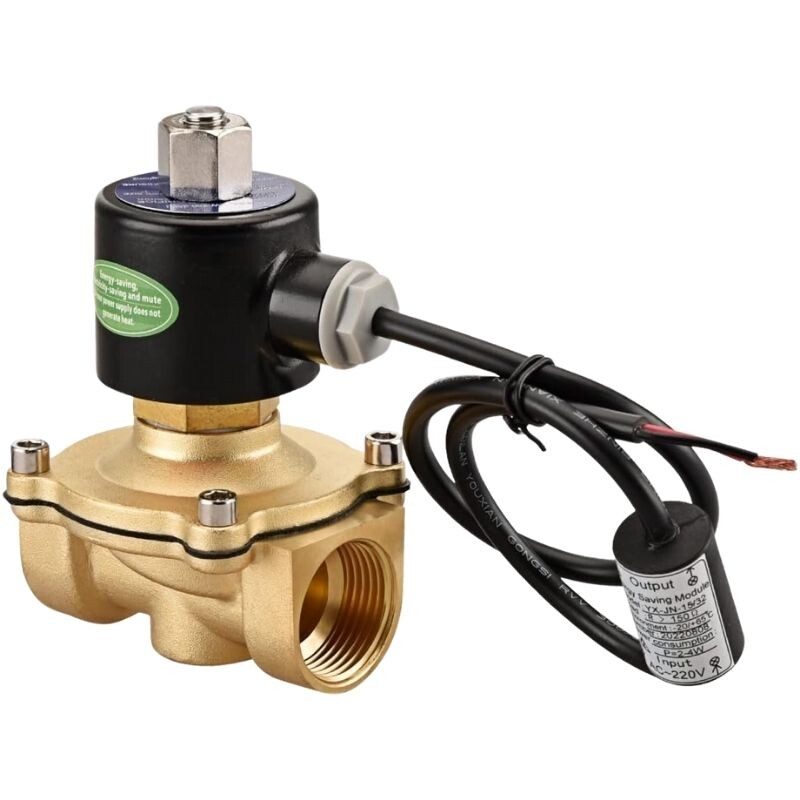

2W-160-15 AC 220V NC Electromagnetic Valve - Solenoid Valve, this electric valve made of brass material is long-lasting and rust-proof. The valve with NC operation type has low leakage rate, saves water, making it an efficient choice for various household and industrial applications. It can be used in water, gas and oil.

The product cable has an energy saving module.

Features

• Model: 2W-160-15
• Working Voltage: 220V AC
• Power: 2W
• Material: Brass, rubber
• Working Type: NC
• Control: Water, Gas, Oil
• Pressure Range;
  • Air: 0 ~ 1.0 Mpa
  • Water: 0 ~ 0.7 Mpa
  • Oil: 0 ~ 0.7 Mpa
• Flow Aperture: 16mm
• Nozzle Diameter: G1/2

Energy Saving Module Features

• Model: YX-JN-15/32
• Load Resistance: 150 Ohm
• Power Consumption: 2-4W

Dimensions

 Usage
