2W UV Lamp with 5V Driver

2W UV Lamp with 5V Driver

2W UV Lamp with 5V Driver, Ultraviolet light, electric current in the lamp passes between the electrodes thanks to the metal vapor. Electrons are emitted when the cathodes (negative electric charge) collide with metal or gas atoms, raising their electrons to a higher energy level. After the reaction and collision are completed, the electrons immediately begin to emit as ultraviolet light energy. The gas and metal vapor in the lamp are also a determining factor in determining the spectrum of ultraviolet light energy. Ultraviolet lamps are manufactured from high quality quartz (high silicon dioxide containing high heat resistance) glass. Ultraviolet lamps have a minimum working capacity of 1000 hours and a maximum working capacity of 8000 hours.

It should not be forgotten that the life of the ultraviolet lamp is directly proportional to the correct use and maintenance period. It should be known that the life of an ultraviolet lamp that is turned on and off very often will quickly end, and it is recommended that it be left on at low power if it will continue to work at short intervals.

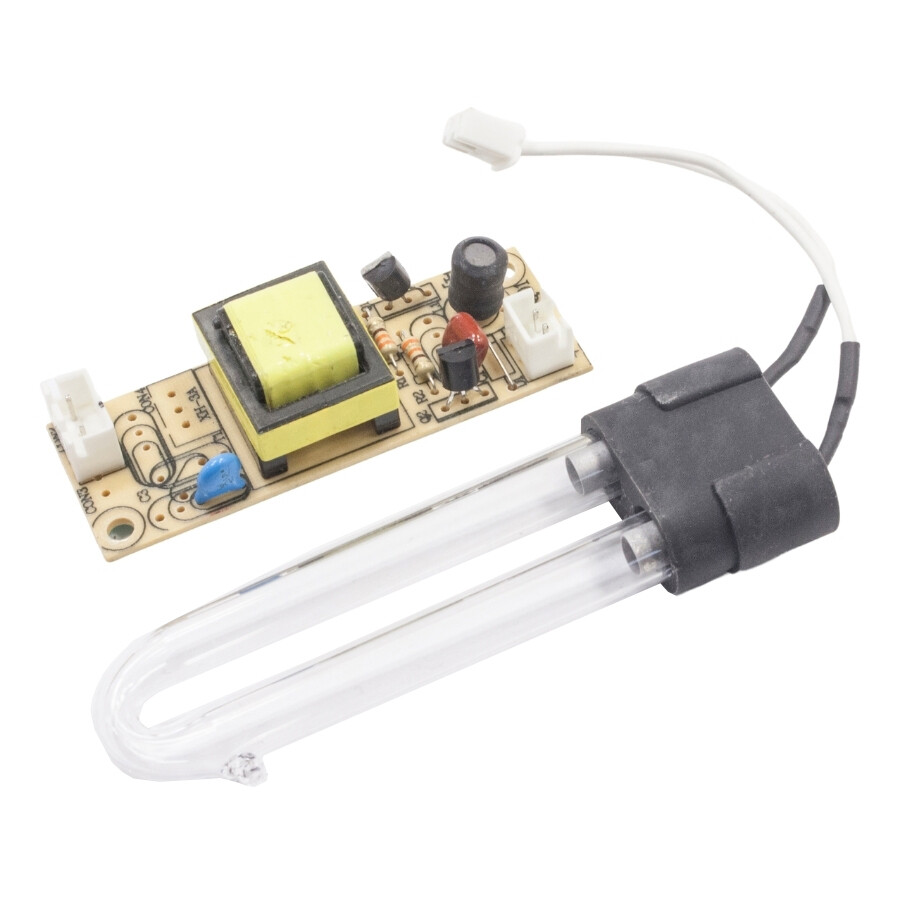

You can use it with 5V power input from the "+" "-" terminal on the card and UV lamp connection from the terminal on the other side. PCB Size: 60x20mm.

UV Lamp size is 25x80x10mm. Cable length is approximately 7.5cm.
