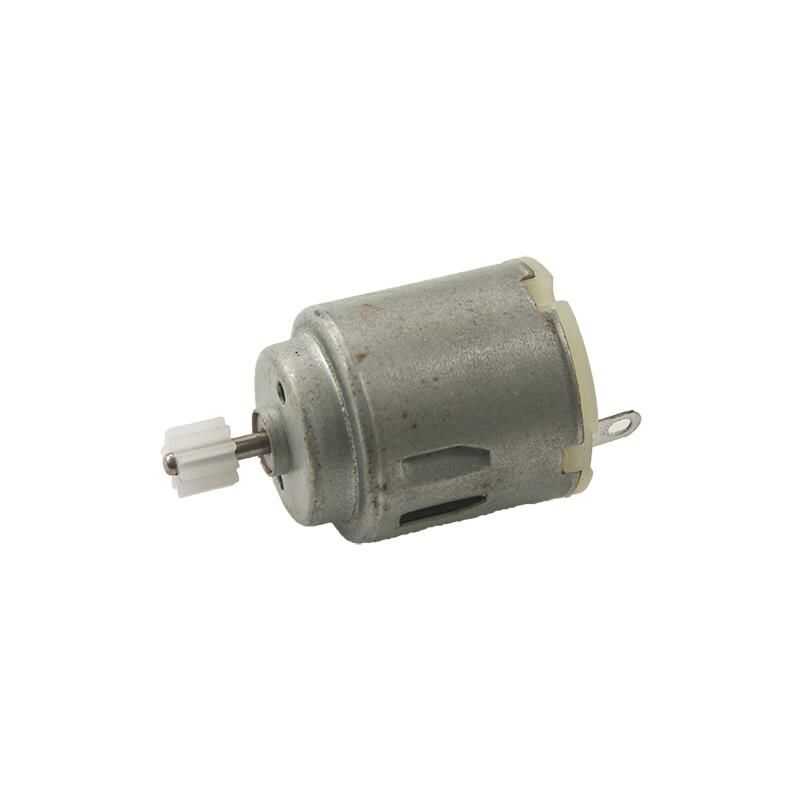

3-6V Mini 140 DC Motor - Gear Output
RE-140 (FA-140) which operates between 3-6V and is generally used in school projects or inside toys. DC Motor. It is a frequently preferred product due to its low power consumption.
Technical Specifications:
- Operating Voltage: 3-6V DC
- Idle Current: 0.06-0.08 A
- Stress Current: 1A Max.
- Power: 0.5W
- Speed: 4000 RPM @3V, 7500 RPM @6V
Motor Dimensions:
- Motor Diameter: 20.7mm
- Motor Length: 25mm (Excluding Shaft)
- Shaft Diameter: 2mm
- Shaft Length: 8mm
- Gear Diameter: 6mm
- Number of Teeth: 10
