3-Channel PWM Signal Generator Circuit XY-LPWM3

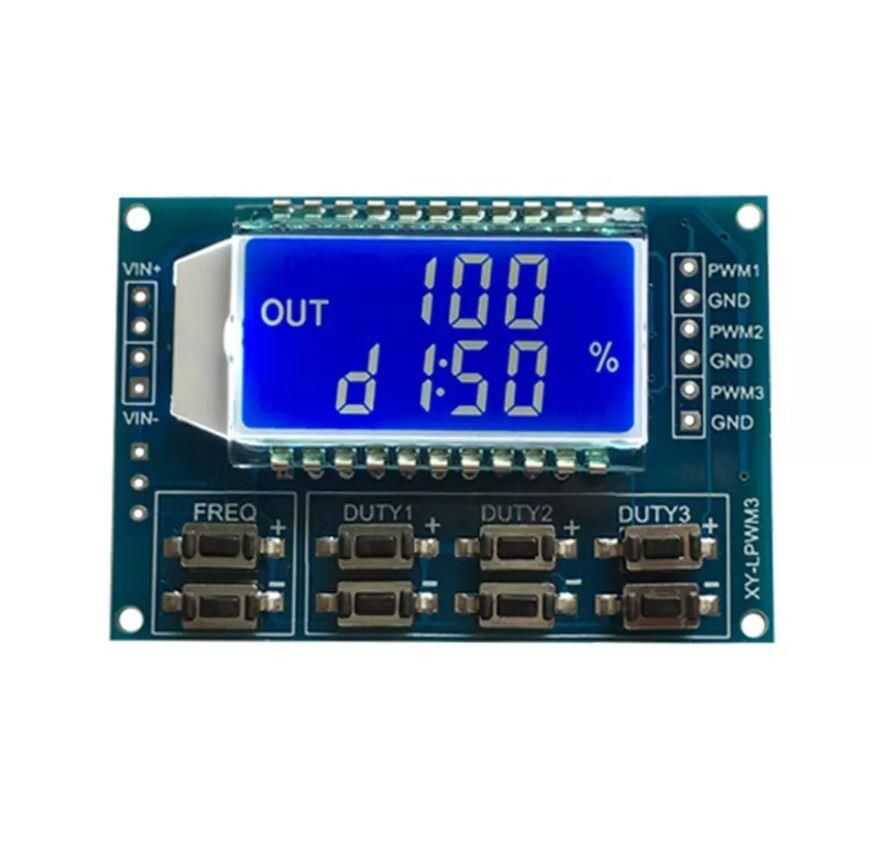

3-Channel PWM Signal Generator Circuit It has a frequency range and high sensitivity. It works with DC 3.3 - 30V. The device can be easily controlled with the LCD screen and control buttons on it.
Features
- Operating Voltage: 3.3 ~ 30V
- Frequency Range: 1Hz ~ 150KHz
- Operating Temperature Range: -20 ~ +70°C
- Signal Load Capacity: 5 - 30 mA
Communication Standard
- Baud Rate: 9600 bps
- Data Length: 8
- Stop Ends: 1
- "F101": Set Frequency 101Hz (001 ~ 999)
- "F1.05": Set Frequency 1.05Khz (1.00 ~ 9.99)
- "F10.5": Set Frequency 10.5Khz (10.0 ~ 99.9)
- "F1.0.5": Set Frequency 105Hz (1.0.0 ~ 1.5.0)
