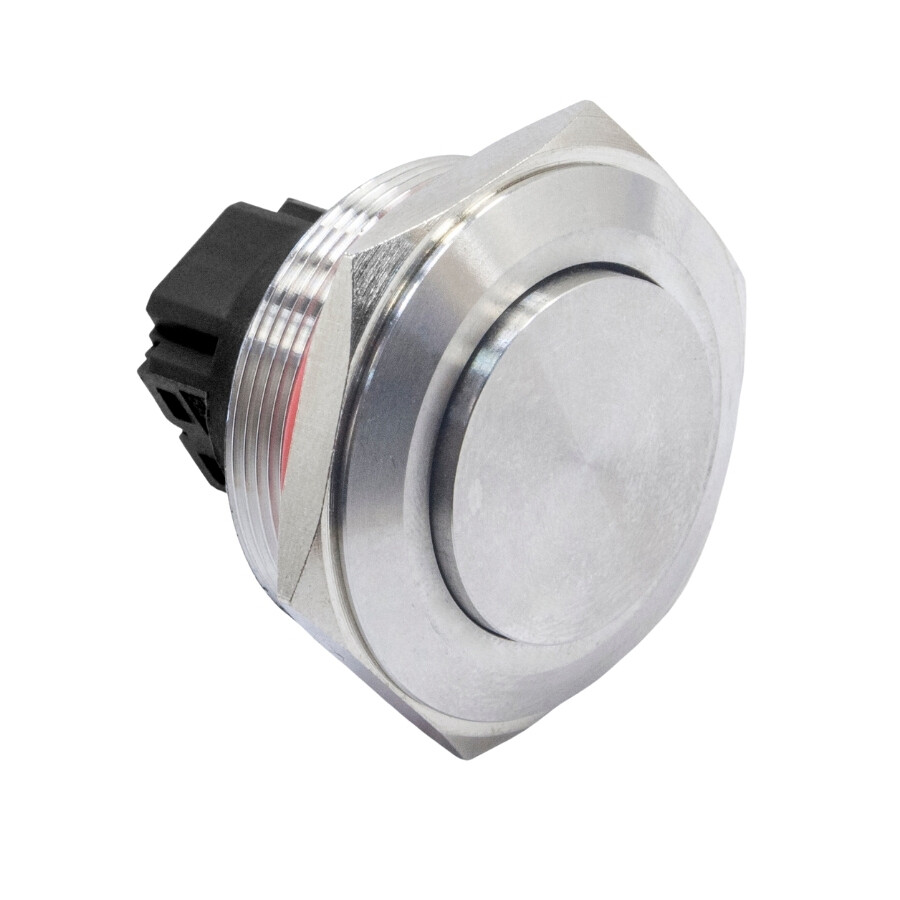

30B-G1Z 30mm Metal Button with Protruding Key
30mm metal button is a product with IP66 waterproofness that you can use in various industrial applications, electronic projects, mass production projects. It is made of stainless steel. The product is shipped with a sealing gasket.
Metal buttons are suitable for outdoor and indoor use because they are stainless steel and have IP 66 protection. It is preferred due to these features in places where long-lasting use is required. In addition, as a button pressing structure, they have a much longer lifespan than plastic button types. The spring-loaded model has a lifespan of 500,000 presses, and the key-operated model has a lifespan of 250,000 presses.
30mm Metal Button Types
30mm Metal Button Types can be divided into Spring-loaded and They are divided into two: keyed. Spring buttons allow voltage to pass as long as they are held down. Models with a switch transmit energy when pressed for the first time, and turn off when pressed again.
When choosing a product The elements to be considered are as follows;
- Head Type: Protruding or Straight
- Light: With or without light
- Light Type: With Power Icon or Not
- Product Type: With Switch or Spring
These details required when choosing the product are clearly stated in the product image and name. Please pay attention to the name and image before purchasing.
Technical Specifications:
- Operating Method: Switch-operated
- Mounting Diameter: 30mm
- Material: Stainless Steel
- Protection Level: IP66
- Voltage: 12-24V
- Current: 3A
- Switch Contacts: 1NO and 1NC
- Electrical Working Life: >250000
- Compression Life: 500000 (spring model), 250000 (switch model) )
- Wiring: 20AWG
- Operating Temperature: -30 °C ~ 85 °C
Read More For detailed information, you can access the detailed technical documentation of the product by clicking the link below.
