3S 10A 12V Li-ion & 18650 BMS Battery Protective Balance Circuit
3S 10A 18650 Lithium Battery Overcharge and Overcurrent Protection board (BMS) is the battery pack's ensures safety.
Suitable for 10.8V (Rated voltage of polymer battery), 11.1V (Rated voltage of 18650 or 3.7V lithium battery), 12.6V (Full charge voltage of lithium battery). Input voltage should not exceed 12.6V. Suitable for lithium batteries with 3.7V nominal and 4.2V full charge voltage.
Technical Specifications:
-

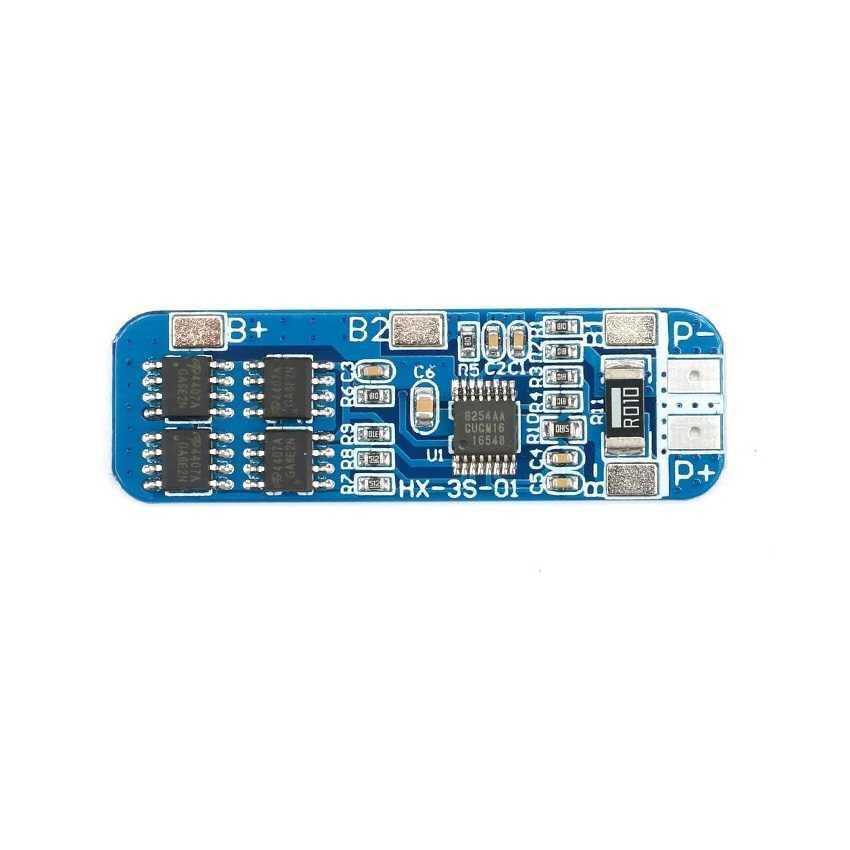

Model: HX-3S-01
-
Input Voltage: 12.6V
-
Operating Temperature (°C): -40 ~+50℃
-
Overcurrent Protection
-
Low Voltage Protection
- Short circuit protection
-
Overcharge protection
-
Life: >30,000h
-
Internal Resistance: ＜60mΩ
-
Maximum Operating Current: 5 ~ 8 A
-
Maximum Discharge Current: 10A
-
Overvoltage Range: 4.25-4.35V±0.05V.
-
Quiescent Current: ＜6μA
-
Dimensions: 50 x 16 x 2.6mm
NOTE: In case of a short circuit, you may damage the battery and circuit and cause a fire. Connecting dead batteries will also damage healthy batteries.
