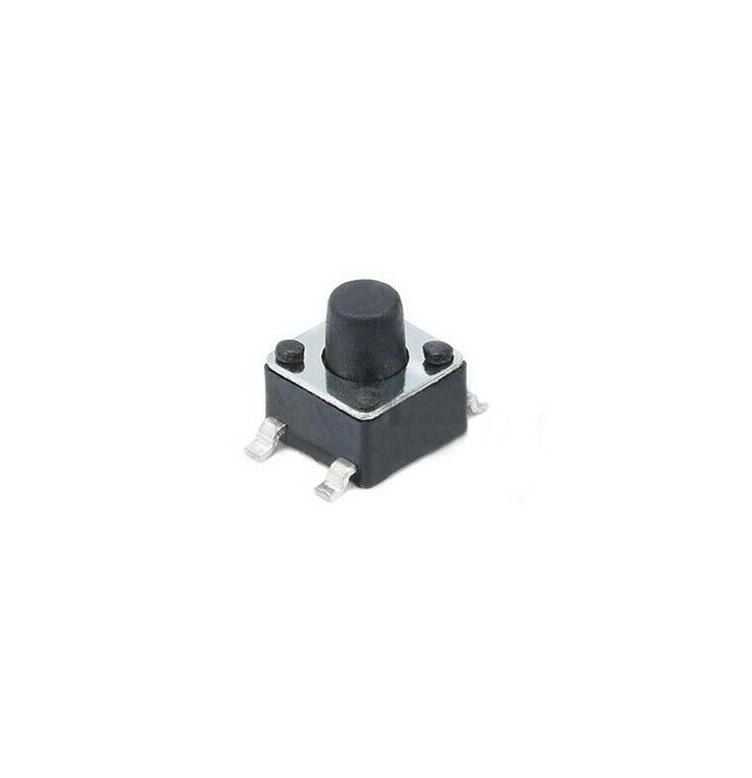

4.5x4.5x7mm SMD Tact Button
Widely used as standard input "buttons" in electronic projects. These work best when you mount them to the PCB, but They can also be used on breadboards for temporary connections in prototypes. They are normally open (disconnected) and momentarily closed when the button is pressed, completing the circuit.
Technical Specifications
- Operating Voltage: 12 V DC
- Operating Current: 50mA
- Switch Type: Momentary

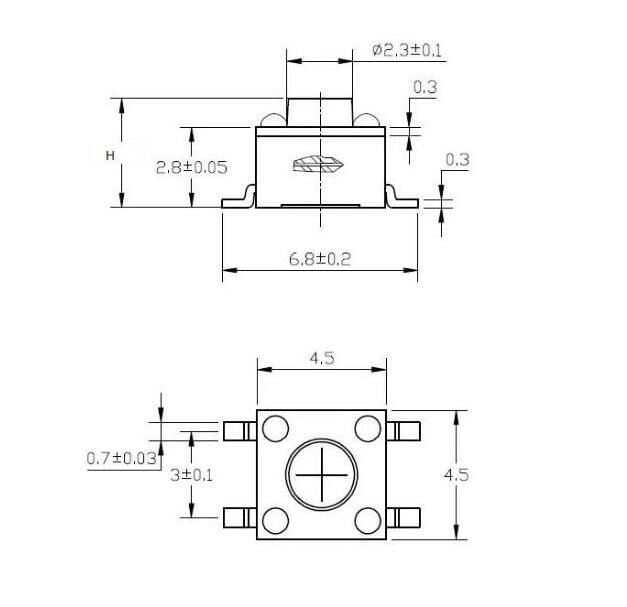

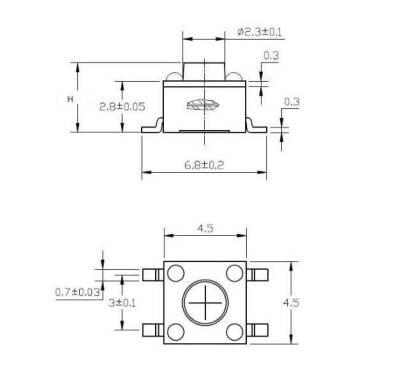

- Dimensions: 4.5x4.5x7mm
- Button Height: 4mm
- Number of Pins: 4
