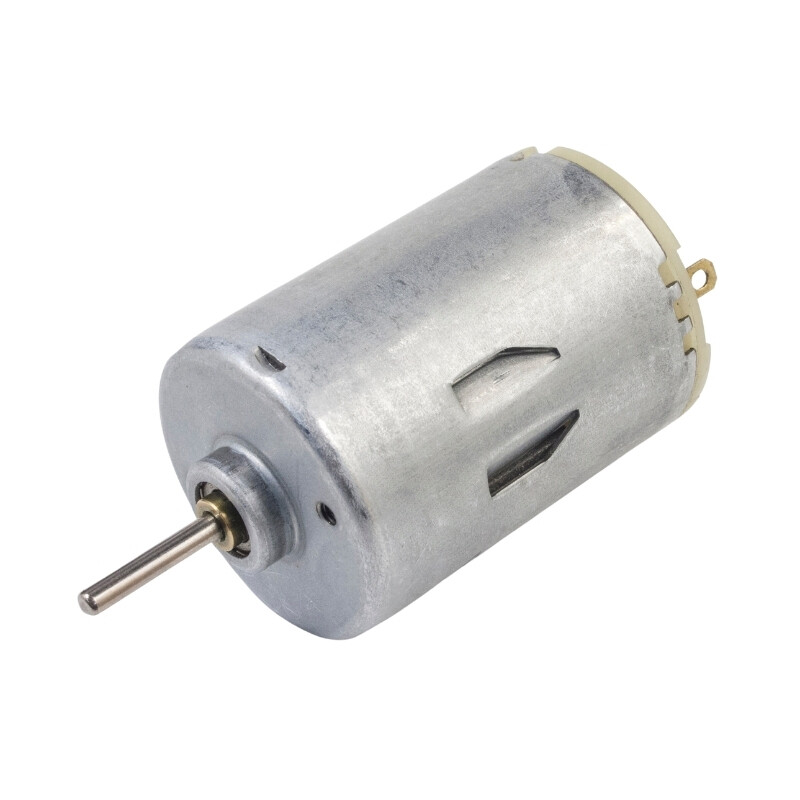

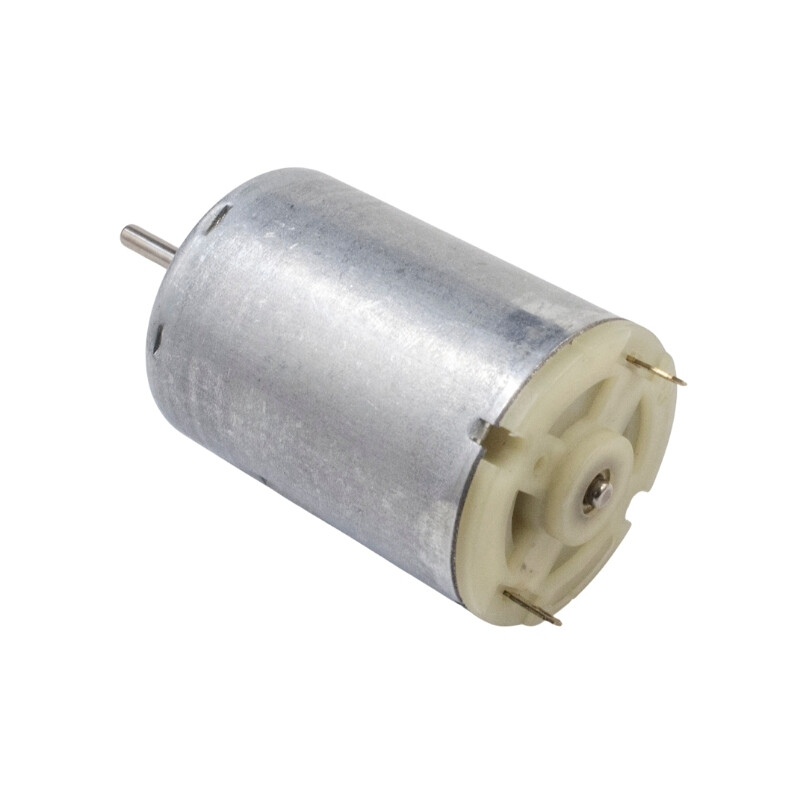

540 12-24V 5000Rpm Gearless DC Motor
540 12-24V 5000Rpm Gearless DC Motor. It has 12V DC operating voltage and 3000 rpm rotation speed. Thanks to its high-speed structure, it is especially suitable for use in small vehicle vacuum cleaners.
Technical Specifications:
- Working Voltage: 12 - 24VDC
- Speed: 5000 rpm @12V
- Idle Current: 250 mA @12V
- Load Current: 5A @12V
- Power: 60W (Strain Power) @12V
Product Dimensions:
- Motor Diameter: 35.5mm
- Motor Body Length: 50mm (Shaft (Excluded)
- Shaft Length: 16mm
- Shaft Diameter: 3.17mm D-shaft
