6V 600mA Waterproof Solar Panel - Aluminum Case 130x130mm

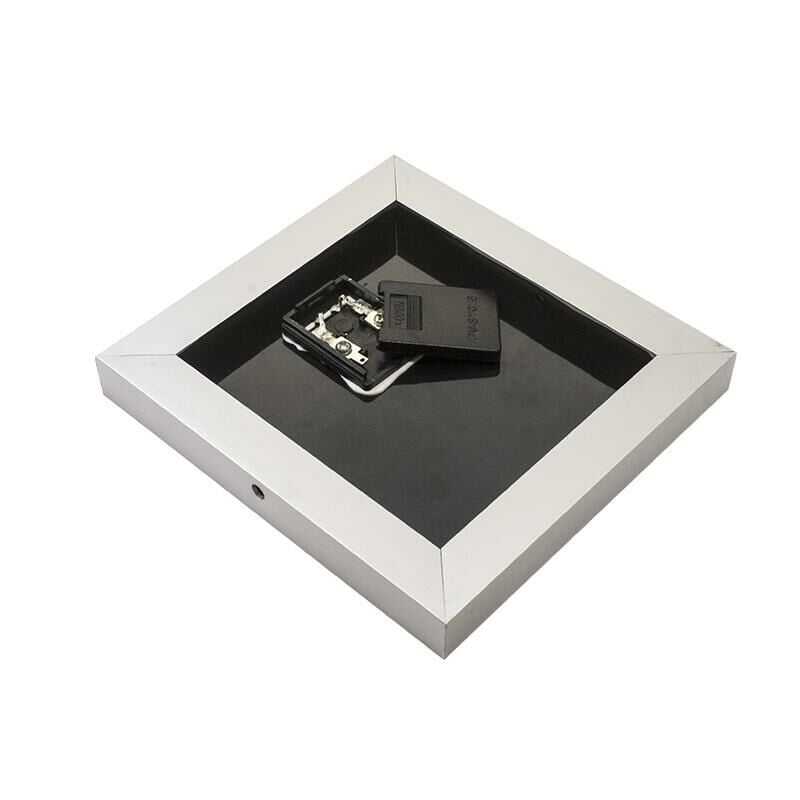

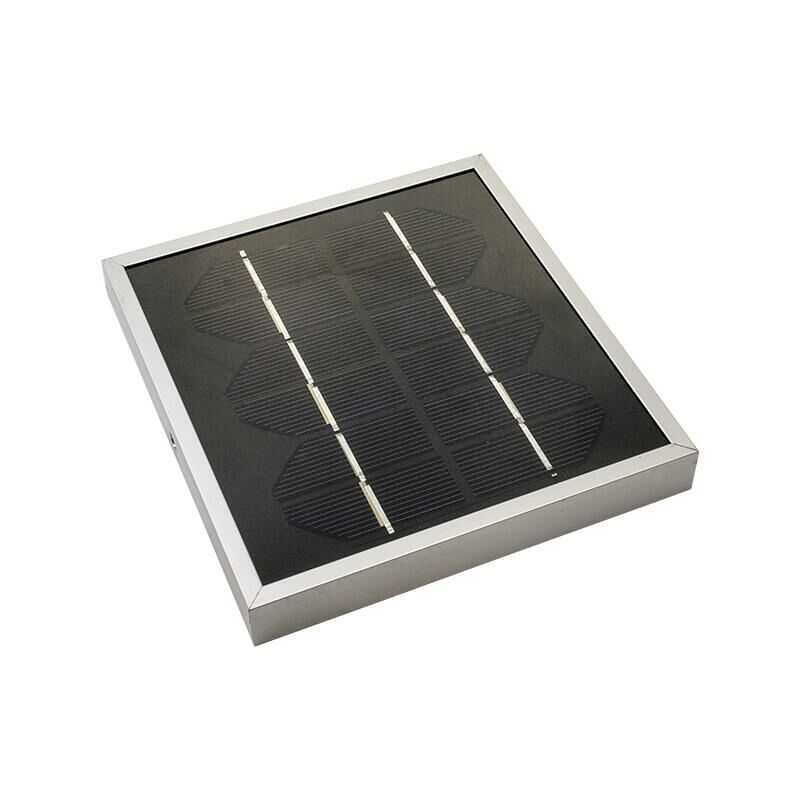

Solar panel that you can use in your projects. It works with maximum performance under sunlight. This product, which has an aluminum frame, is waterproof. The ends from which energy will be output on the back surface are protected by a cover. This product, with its high current output and efficiency, is suitable for use in many projects.

Operating Voltage: 6V

Operating Current: 600mA

Dimensions: 130x130x17.5mm

Solar Cell

A solar cell is an electronic device that captures sunlight and converts it directly into electricity. Just like the cells in a battery, the cells in a solar panel are designed to produce electricity; But where a battery's cells generate electricity from chemicals, a solar panel's cells generate power by capturing sunlight.

A solar cell is a sandwich of n-type silicon (blue) and p-type silicon (red). It generates electricity by using sunlight to make electrons jump between different silicones:

Güneş Pili Çalışma Prensibi

When sunlight shines on the cell, photons (light particles) bombard the upper surface.
Photons (yellow) pass their energy through the cell.
Photons release their energy to electrons (green) in the lower, p-type layer.
Electrons use this energy to jump across the barrier to the upper, n-type layer and escape into the circuit. This unidirectional flow of electrons creates direct current and lights the lamp.
