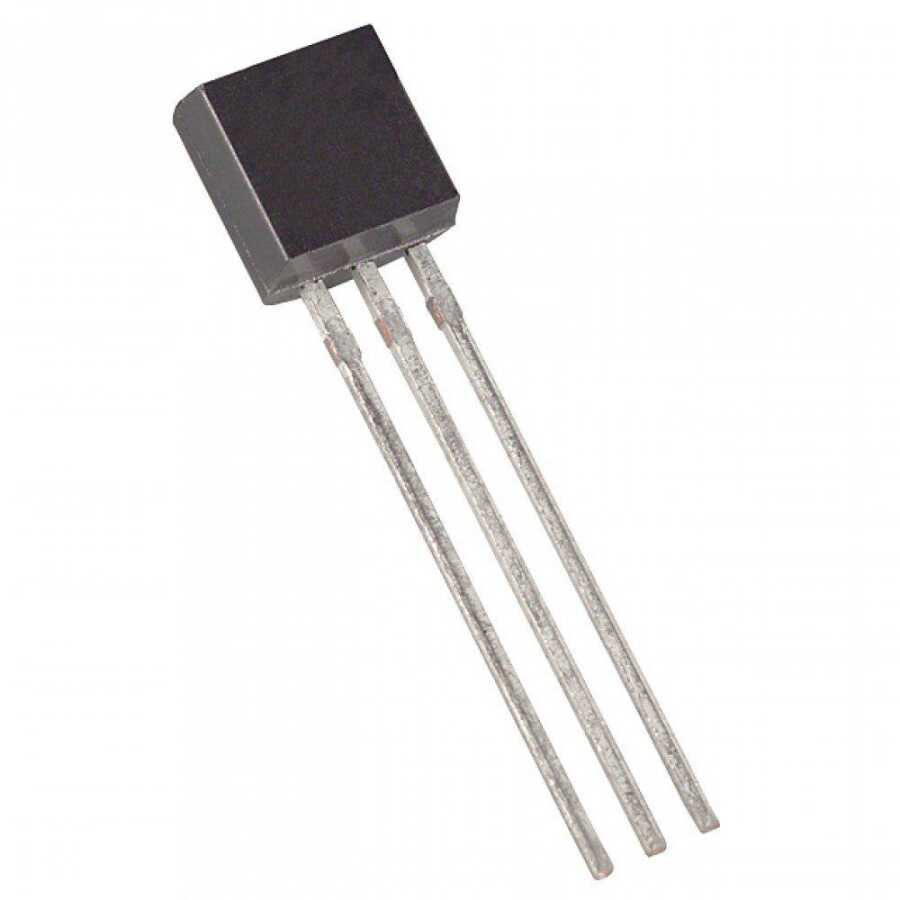

79L12 Voltage Regulator - TO92
The 79L Series is a fixed Negative Voltage Regulator designed for a wide variety of applications. This includes on-board editing to eliminate noise and distribution issues associated with single-point editing. Additionally, it can be used to control series switching elements to make high current voltage regulator circuits. This regulator can provide output current up to 100mA.
Areas of Use
-
Fixed - Circuits requiring 12v supply
-
Protection for devices with specific voltage sensitivity
-
DIY requiring specific voltage from an existing high/variable voltage source projects
| Series |
LM79L |
| Output Type |
Solid |
| Output Voltage |
-12V DC |
| Input Voltage |
-14.55 / -35VDC |
| Current Output |
100mA |
| Package Type |
TO-92 |
