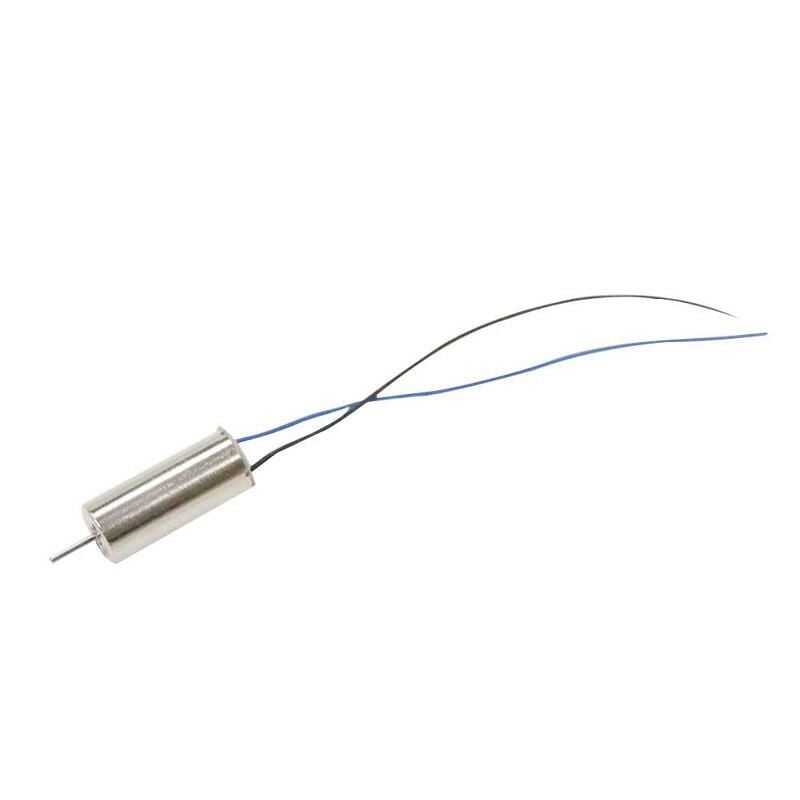

8520 8.5x20mm 28000 RPM 2.1V Drone Engine
Cylindrical shaped drone engine that you can easily use in your Drone, Quadcopter and Multicopter projects. 2 wires connected.
Coreless micro motor for Model Airplane Helicopter, electric toys.
Note: The product is stock material. For this reason, there may be small stains on it. The functionality of the products is tested and shipped.
Technical Specifications
- Motor Diameter: 8.5mm
- Shaft Diameter: 1mm
- Motor Length: 20mm
- Shaft Length: 6mm
- Operating voltage range: 1.5-4.2V DC
- Rated speed : 28000 ± 10% RPM
- Rated current: max. 200mA
- Rated Load: 20500 ± 6% RPM
- Rated load current: 2.7 ± 0.25A
- Direction of rotation: CW and CCW
- Cable Length: Approx. 65mm
