8x16 I2C Dot Matrix Led Module

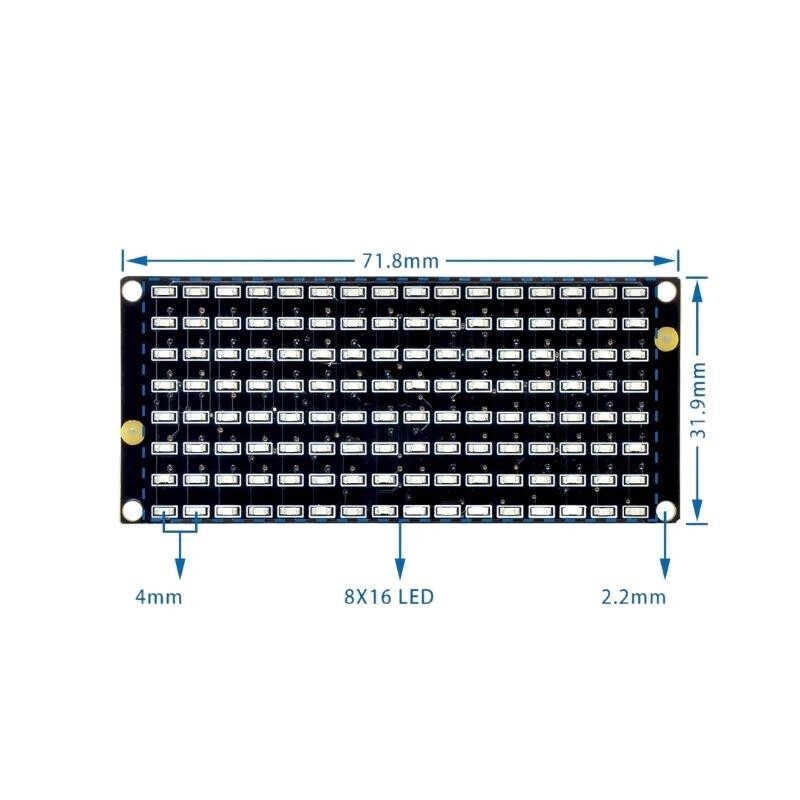

8x16 LED matrix panel comes with 8x16 LED and AIP1640 chip on the back surface.
< br />This matrix features 128 bright LEDs arranged in an 8x16 grid on the front. There is an AIP1640 chip and a 4Pin interface (GND, VCC, SDA, SCL) on the back
.

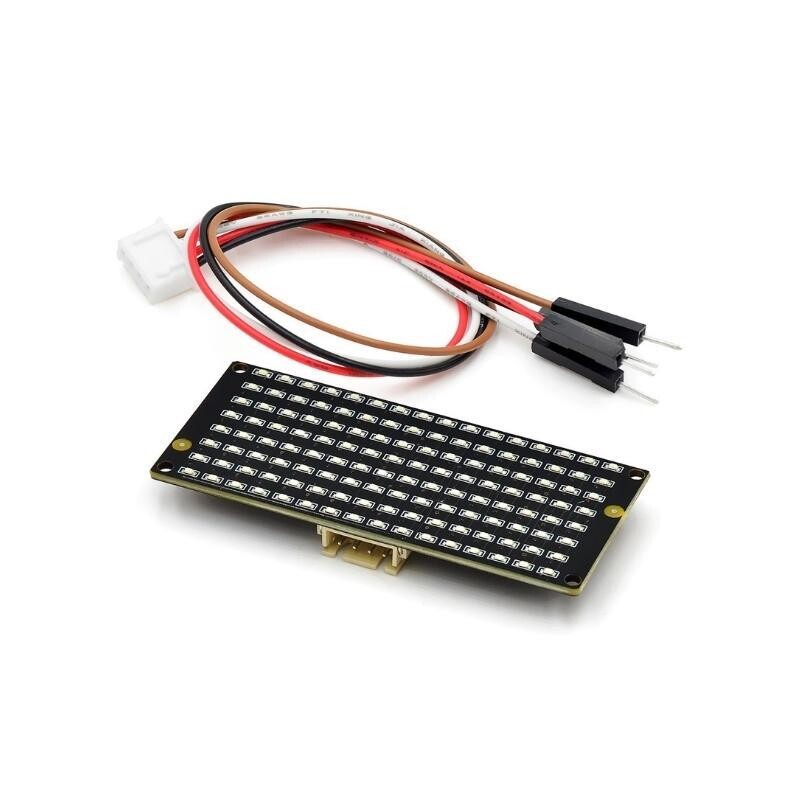

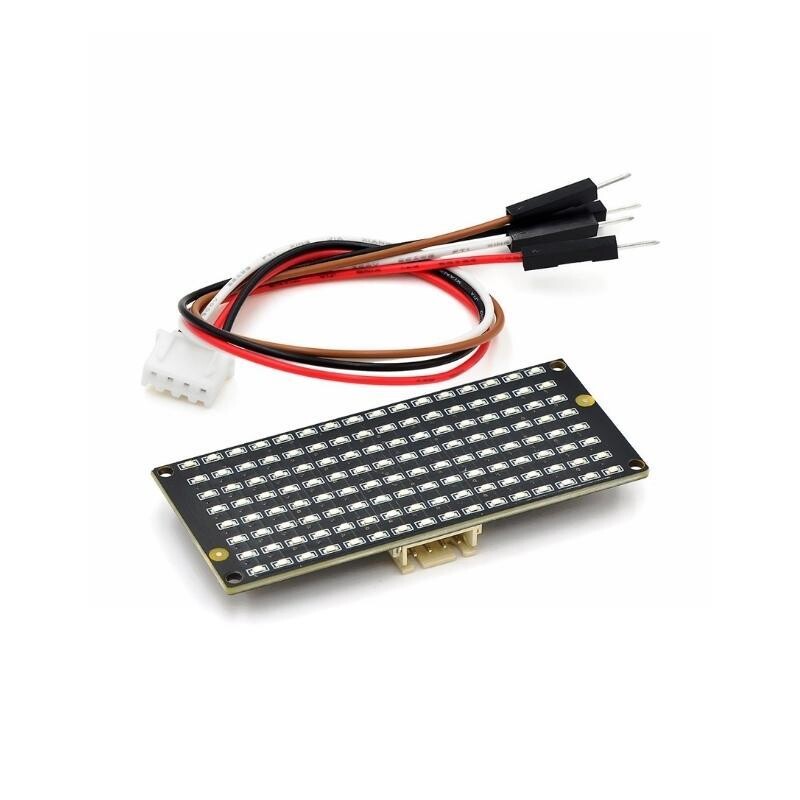

Transmit this matrix with microcontrollers via I2C communication. Control the AIP1640 chip to turn on and off the 128 LEDs on the panel, displaying the images you want to display on the LED matrix. And the brightness of LED displays can be adjusted in the code below. Includes a HX-2.54 4Pin cable for easy wiring.
Specifications:
- Power supply: 3.3-5V
- Module control interface: I2C
- Current: 200mA
- Controllable LED matrix: 16*8 pattern
