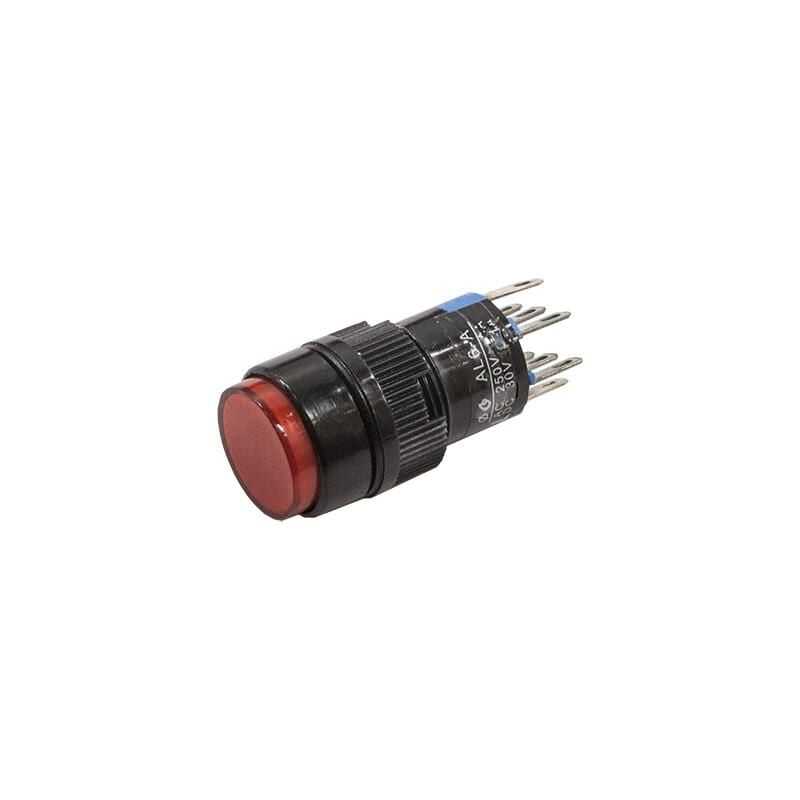

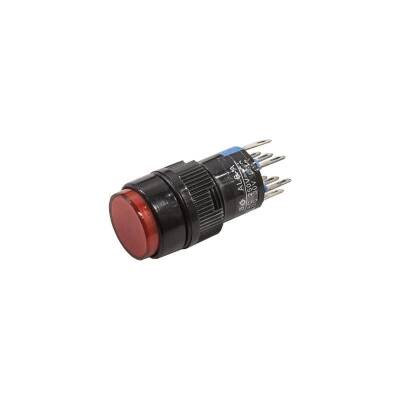

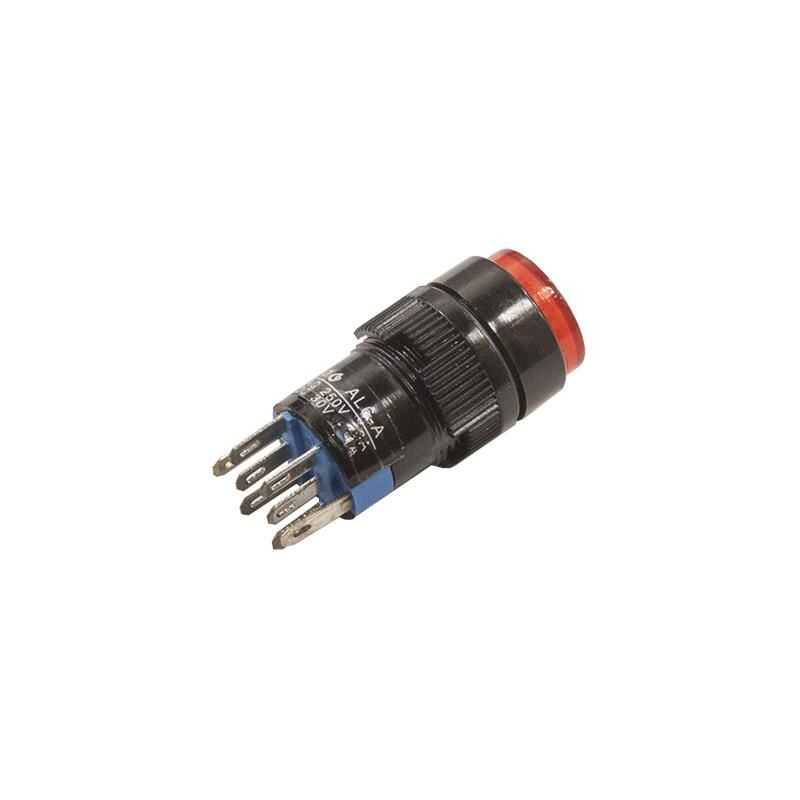

AL6-A 16mm 24V Permanent Button with Red Switch
16mm 24V Permanent Button. It is a type of button that you can use in various electronic and industrial applications. The light on the product operates with 5-30V. This button is both NO and NC contact. These two contacts can also be used together.
It is sufficient to press this button once to transfer energy. When pressed again, energy transfer ends. So the button is the permanent model. The name of our models, which transmit energy as long as it is pressed, says "spring loaded".
Features:
- Led Voltage: 5-30V
- Contact Current: 30VDC 5A | 250VAC 3A
- Number of Pins: 8 Pin
- Contact: 2NO / 2NC
