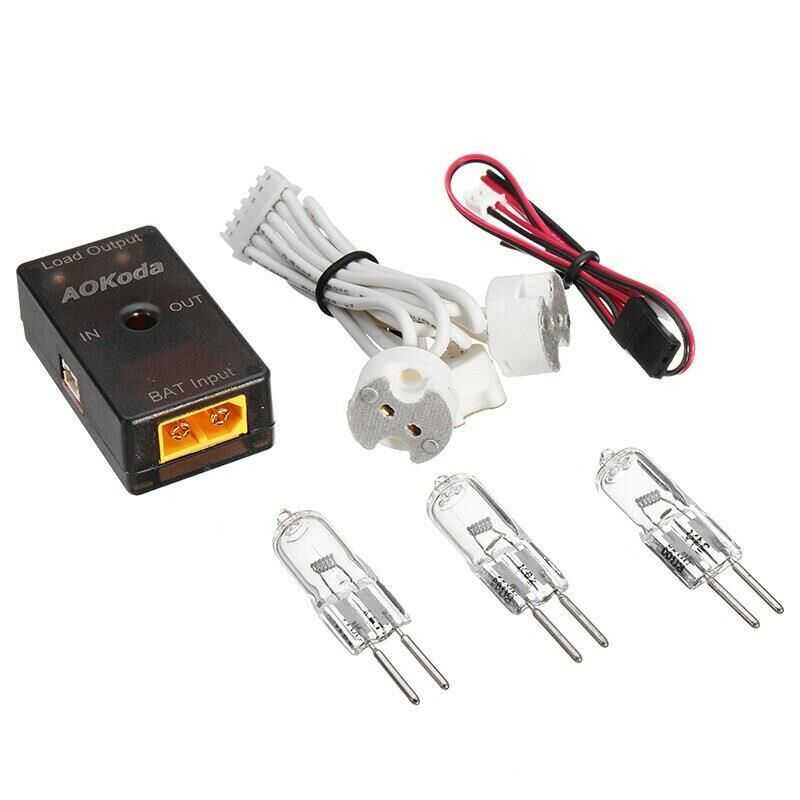

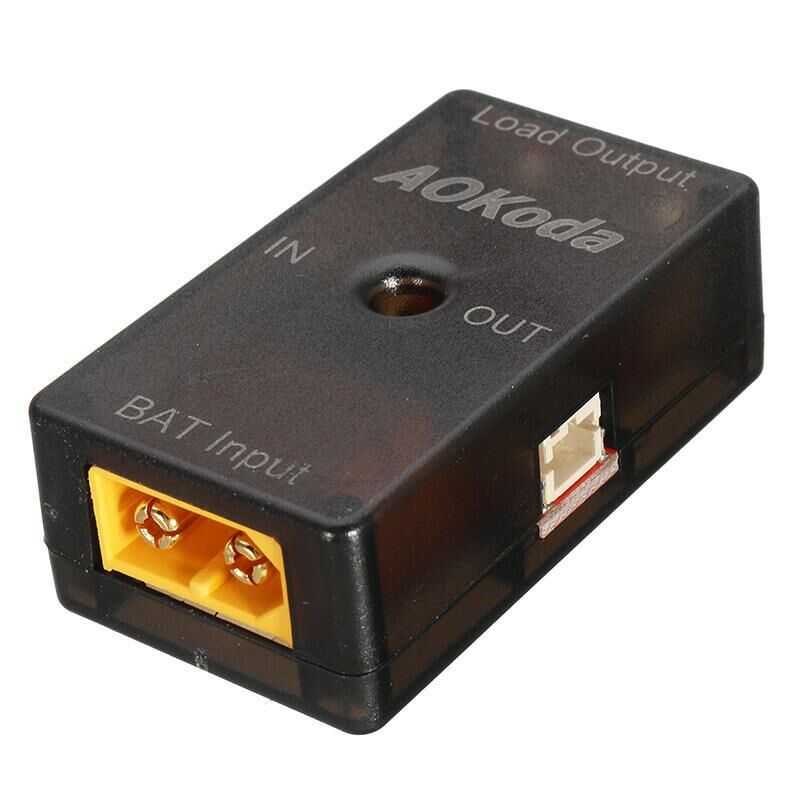

AOKoda CellMeter 8 150W Discharge Module Set

-Measurable battery type: Li-Polymer / Li-Fe 2 ~ 6 Cell (standard voltage 7.4 V ~ 22.2 V).

-Receiver battery 1.2 V ~ 8.5 V DC (Does not limit battery type, but needs 7.4 ~ 11.1V external power supply, use JST connection)

-Balance voltage adjustment range (lower limit): 2.0V ~ 3.9V (preset value 3.2V)

-Discharge voltage adjustment range (lower limit): 3.0V ~ 4.2 V (preset value 3.9V)

-Max. current: 450 mA (4.2V / in cell)

-Thermal backplane ventilation design to prevent overheating.

-Power of external expansion discharge module 150 watts.

-Discharge input port: XT60

-Discharge voltage range: DC 7-20V

-Max. discharge current: 25A @24V

-Supported discharge modules: 3in1 / 5in1 / CellMeter 8
