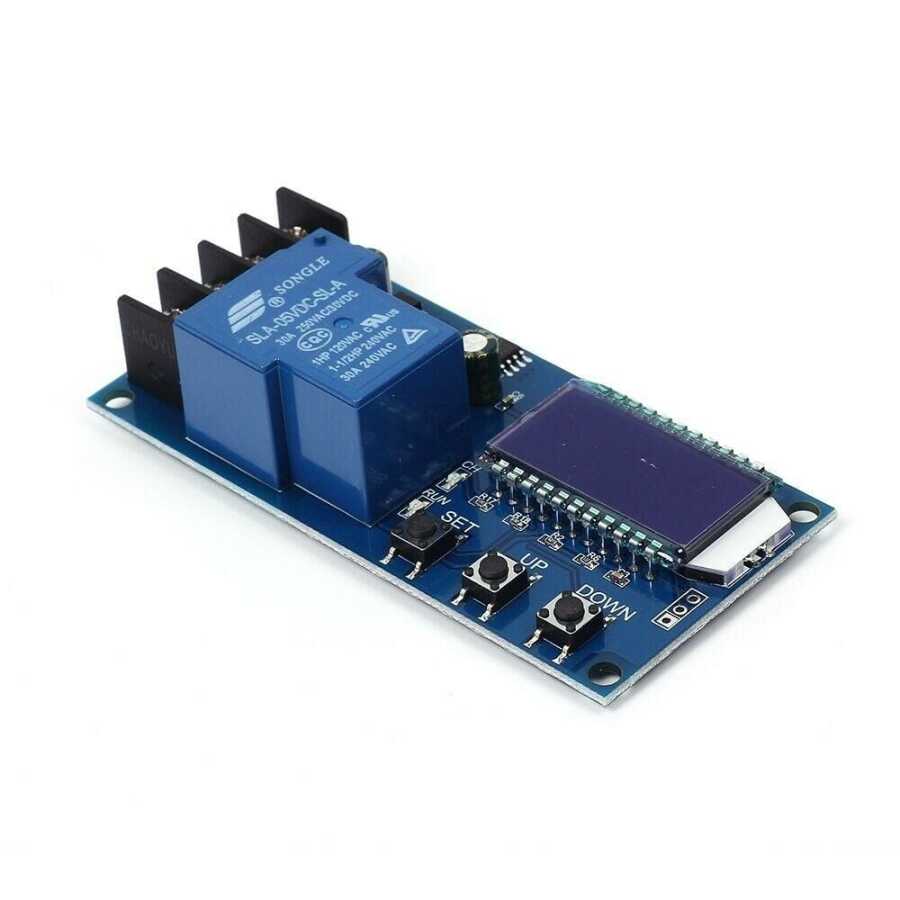

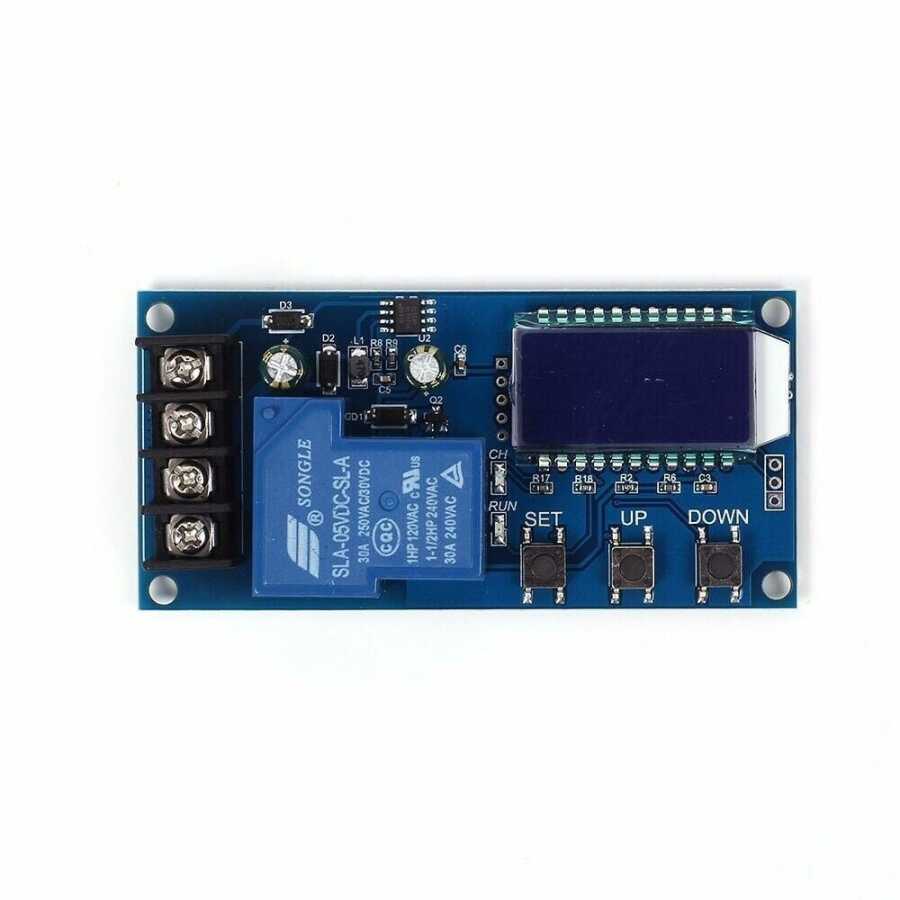

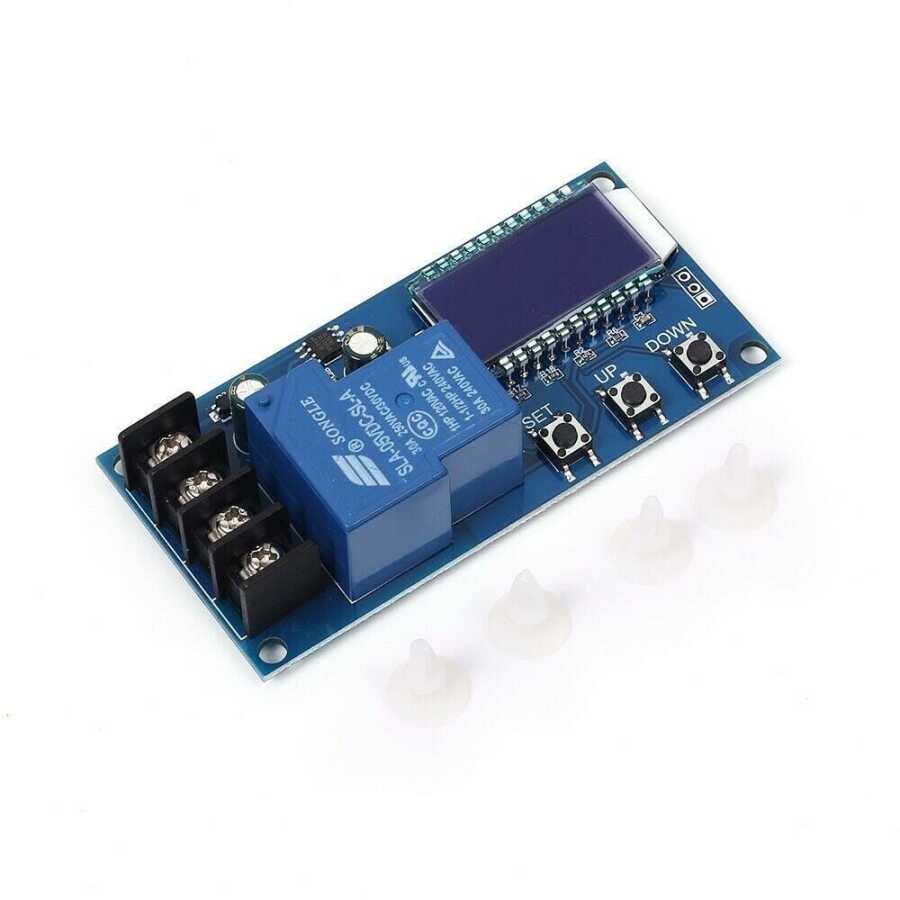

Battery and Lithium Battery Charging Circuit 30A
Charging circuit with display that controls the charge-discharge status of batteries or lithium batteries. Minimum and maximum voltage values, battery charge rate and charging time can be displayed on the screen. It can be supplied with max 30A in the range of 6-60V. The product has a relay feature and is not a fully controlled charging circuit. For this reason, for example, if you are going to charge a 12v battery, your power source must also be 12v.
Technical Specifications:
- Product model : : Direct output
- Voltage error: ±0.1V
- Scope of application: Battery, Li-on, Li-po Batteries
- Size: 79*42mm
XY-L30A Usage:
When the Set key is pressed, an interface will open to enter the parameters. You can switch between parameters by pressing the Set button briefly, and the values can be adjusted with the up and down buttons.
- dn: It is the charging subvoltage. If the battery is below this value, charging starts
- UP: It is the upper limit of charging. When the voltage exceeds this value, the charging process is interrupted.
- OP: Charging time can be done for a certain period of time by entering the op value.
