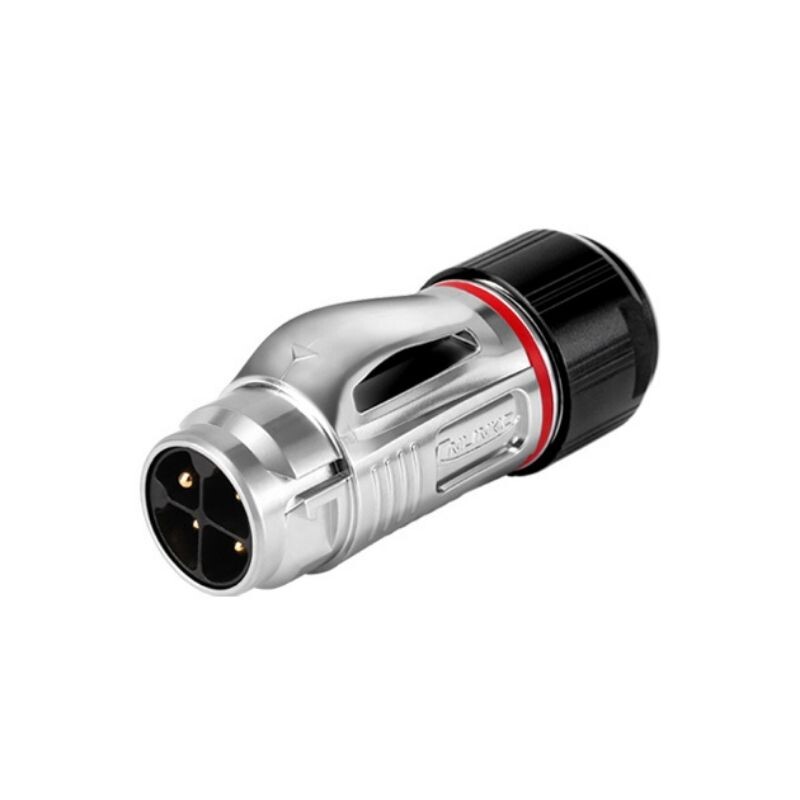

BD-20-C04PE-03-006A 4-Pin Waterproof Connector - Male
BD-20 series power and signal waterproof connectors can be used alone or fixed together to provide solutions for equipment connections in different industries. They are used in audiovisual equipment, medical equipment, industrial control, test and measurement equipment, AV system, broadcast television and communications, industry. Suitable for connecting equipment installed in front and back of the board.
The new BD-20 (M20 type) series waterproof connector adopts streamlined dynamic design, one-button device tip push and quick plug.
CNLINKO products Cable production can be done upon request. Special production is valid for bulk purchases. For special requests, you can send an e-mail to info@motorobit.com.
Technical Specifications
-
High temperature and pressure resistance
-
IP65/67/68 class when connected
-
Pin Count: 4
- Pin Diameter - 2.7 mm
-
Cable Connection - 4mm2 / 12 AWG
-
Rated Current - 20 Ampere
-
Operating Voltage - 500V AC
-
Contact Resistance - <1mOhm
-
Withstand Voltage - 2000V
-
Ingress Protection - IP65/67
-
Operating Temperature - -40 C - 85 C
-
Body Material - Zinc Alloy (pearl chrome)
-
Flammability Rating - UL94-V0

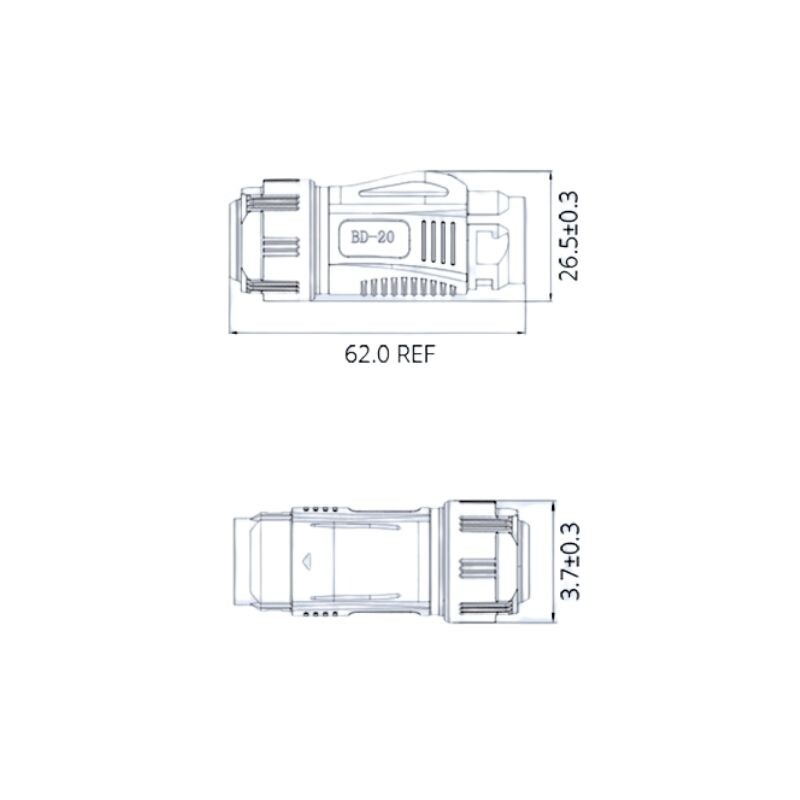

BD-20 Waterproof Connector Datasheet
