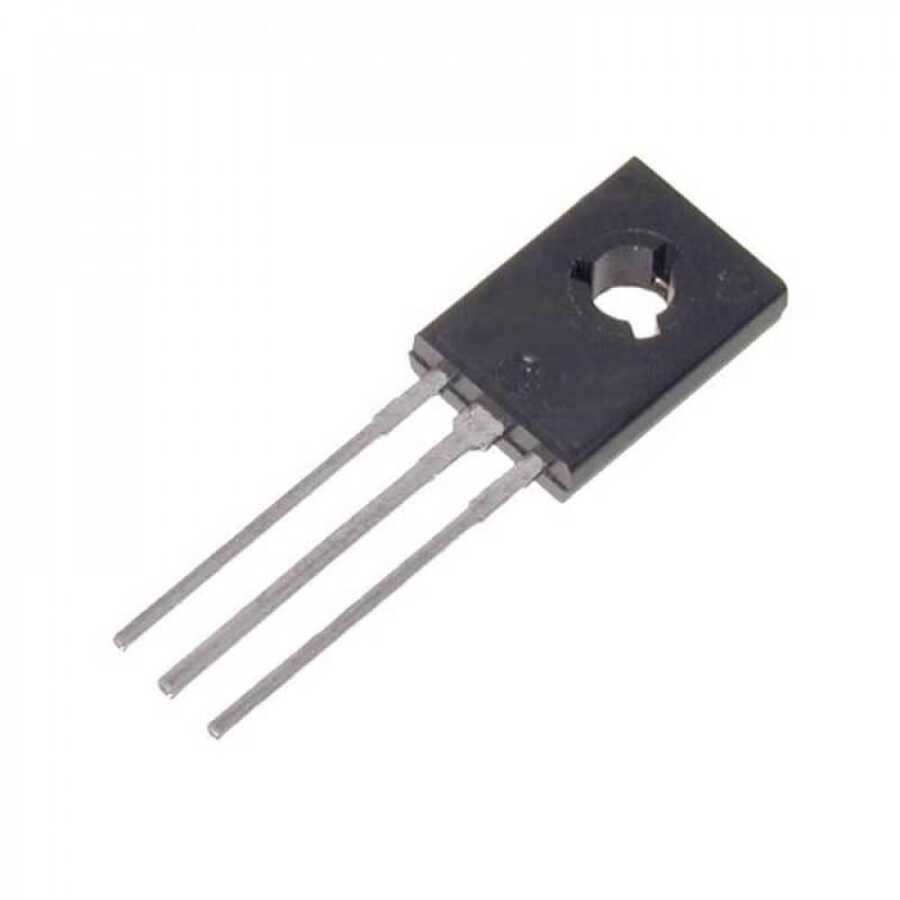

BD138 - TO126 PNP Transistor
The medium power silicon PNP transistor series is designed for use in audio amplifiers and drivers using complementary or semi-complementary circuits. Located in the TO-126 case. 60V is 1.5A.
Equivalent Transistors:
BD138G, BD140, BD140G, BD168, BD170, BD178, BD180, BD180G, BD190, BD229, BD231, BD236, BD236G, BD238, BD238G, BD378, BD380, BD788, BD790, BD792, MJE235, MJE252, MJE254 , MJE711, MJE712
| Product Code |
BD138 |
| Transistor Type |
PNP |
| Breakdown Voltage (Max) |
60V |
| Collector Current (Ic) (Max) |
1.5A |
| Base Current (IB) |
0.5A |
| Package Type |
TO-126 |
