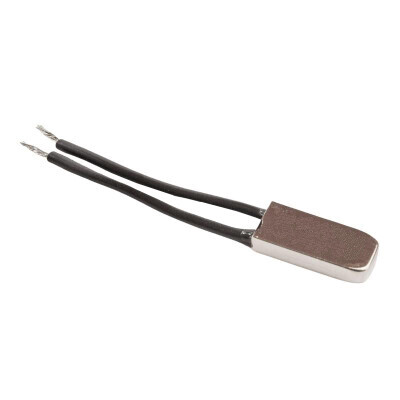

BR 250V 5A NC 155 °C Metal Thermostat
BR 250V 5A NC 155 °C Metal Thermostat is a type of thermostat that adopts a metal head as the temperature sensing element. Air conditioner motor, transformer, thermal devices, etc. It is widely used in motors and electrical equipment of home appliances.
Normally closed circuit limit thermostat. Since this product is a closed circuit, it passes voltage until the temperature reaches 155 degrees, and cuts off the voltage when it reaches 155 degrees.
Technical Specifications:
- Model: BR
- Material: Metal
- Type: Normally Closed
- Rated Voltage: 250V
- Current: 5A
- Cable Length (Approx): 85mm
- Head Size (Approx): 8 x 4 x 20 mm
- Temperature: 155℃
