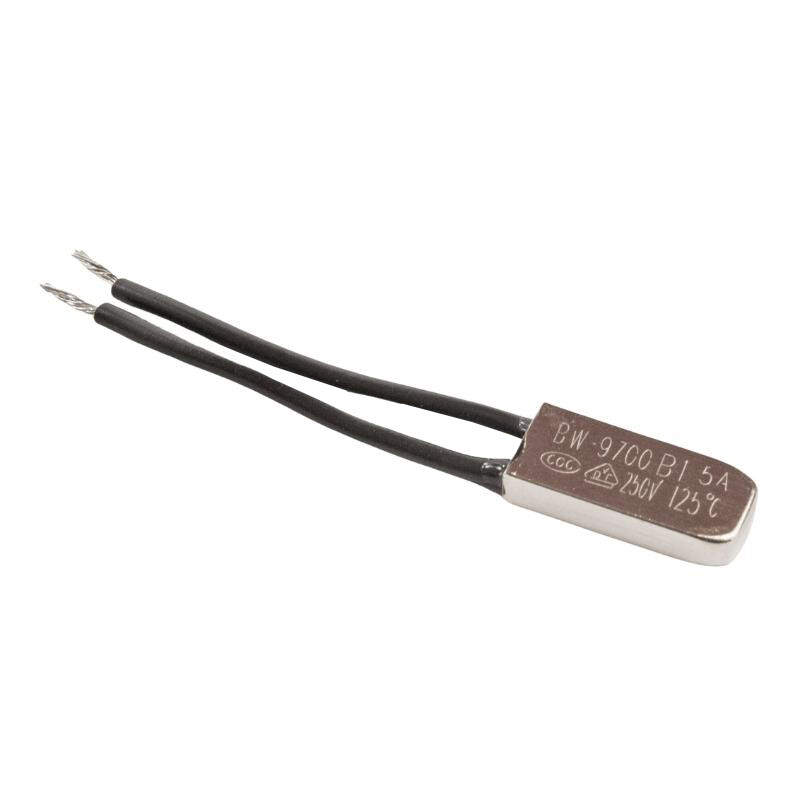

BW-9700 250V 5A NC 125 °C Metal Thermostat
BW-9700 is a kind of thermostat that adopts a metal head as the temperature sensing element. Air conditioner motor, transformer, thermal devices, etc. It is widely used in motors and electrical equipment of household appliances.
Normally closed circuit limit thermostat. Since this product is a closed circuit, it passes the voltage until the temperature reaches 125 degrees, and when it reaches 125 degrees, it cuts off the voltage.
Technical Specifications:
- Model: BW -9700
- Material: Metal
- Type: Normally Closed
- Rated Voltage: 250V
- Current: 5A
- Cable Length (Approx.): 40mm
- Head Size (Approx.): 8 x 4 x 17mm
- Temperature: 125℃
