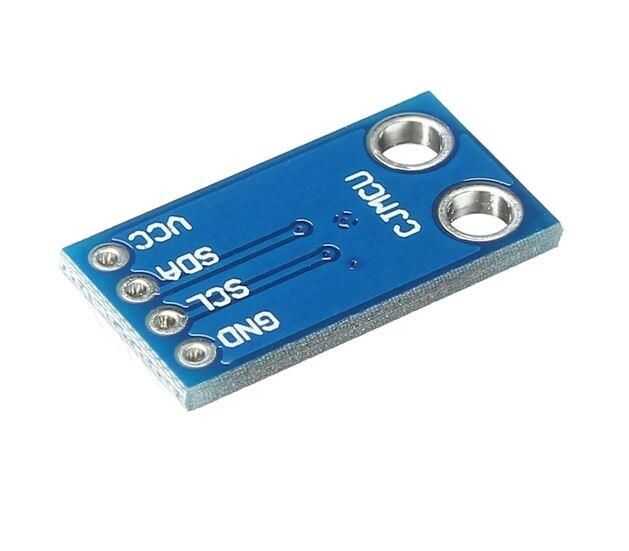

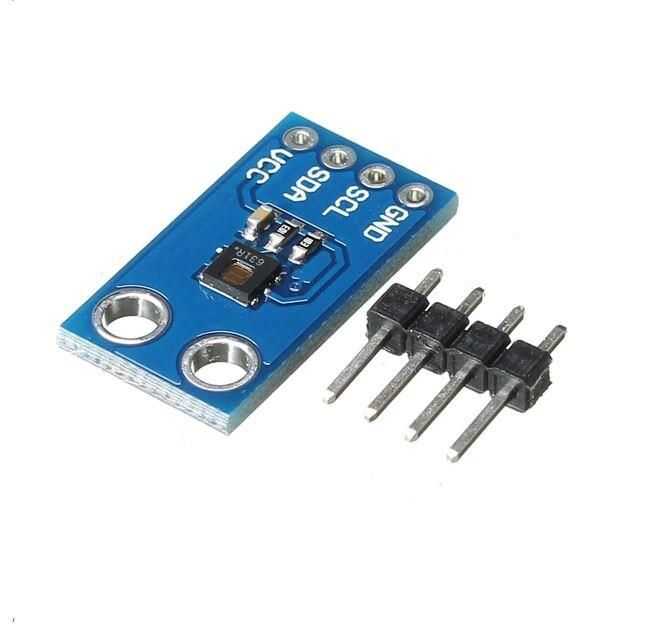

CJMCU-1080 HDC1080 High Precision Temperature And Humidity Sensor Module
HDC1080 is a digital humidity sensor with an integrated temperature sensor that provides excellent measurement accuracy at very low power. The HDC1080 operates over a wide supply range and is a low-cost, low-power alternative to competitive solutions in a wide range of common applications.
Specifications:
-
Relative Humidity Accuracy ±2% (typical)
-
Temperature Accuracy ±0.2°C (typical)
-
Excellent Stability in High Humidity
-
14 Bit Measurement Resolution
-
100 nA Sleep Mode Current
-
Average Supply Current:
710 nA @ 1sps, 11 bit RH Measurement
1.3 µA @ 1sps, 11 bit RH and Temperature Measurement
-
Supply Voltage 2.7 - 5.5 V
-
I2C Interface
Usage Areas
- HVAC
- Smart Thermostats and Room Monitors
- White goods
- Printers
- Handheld Counters
- Medical devices
- Wireless Sensor (TIDA: 00374, 00484, 00524)
