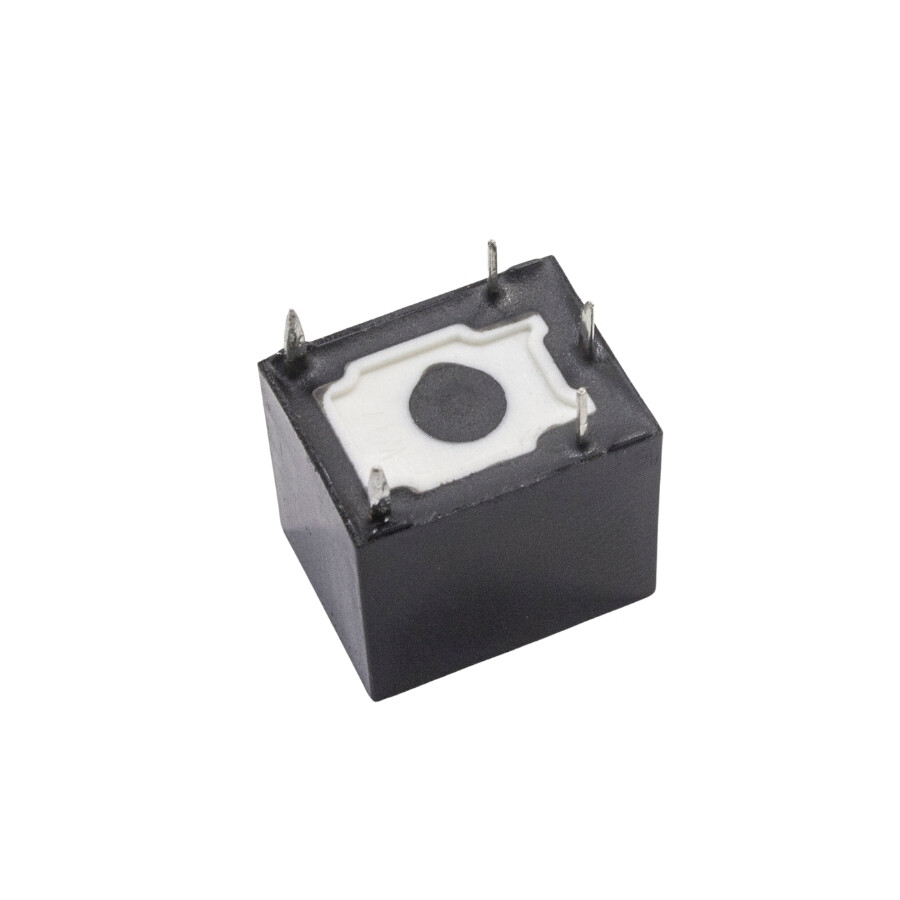

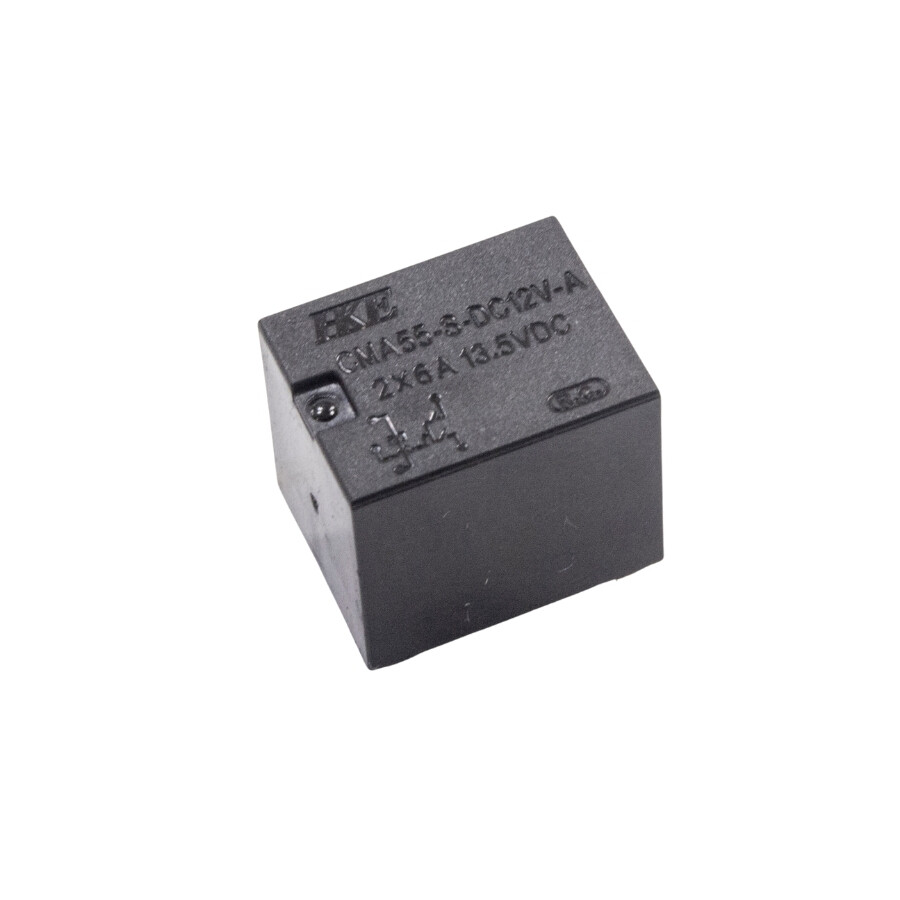

CMA55-S 12V 2X6A Relay 5-Pin
CMA55-S 12V 2X6A Relay 5-Pin. It is the preferred relay in various electronic applications and almost all models with relays.
Features:
- Coil nominal voltage: 12VDC
- Maximum switching current: 6A 250VAC / 6A 13.5VDC
- Maximum switching voltage: 250VAC / 30VDC
- Coil Power: 0.8W
- Coil Resistance: 180ohm
- Dimensions: 15.6x12.2x13.7mm
