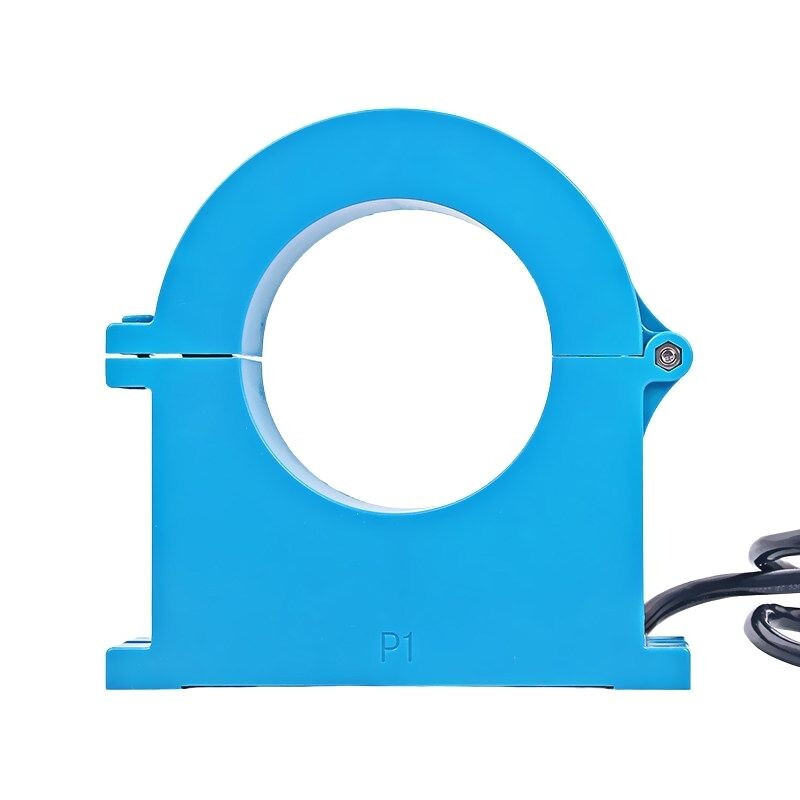

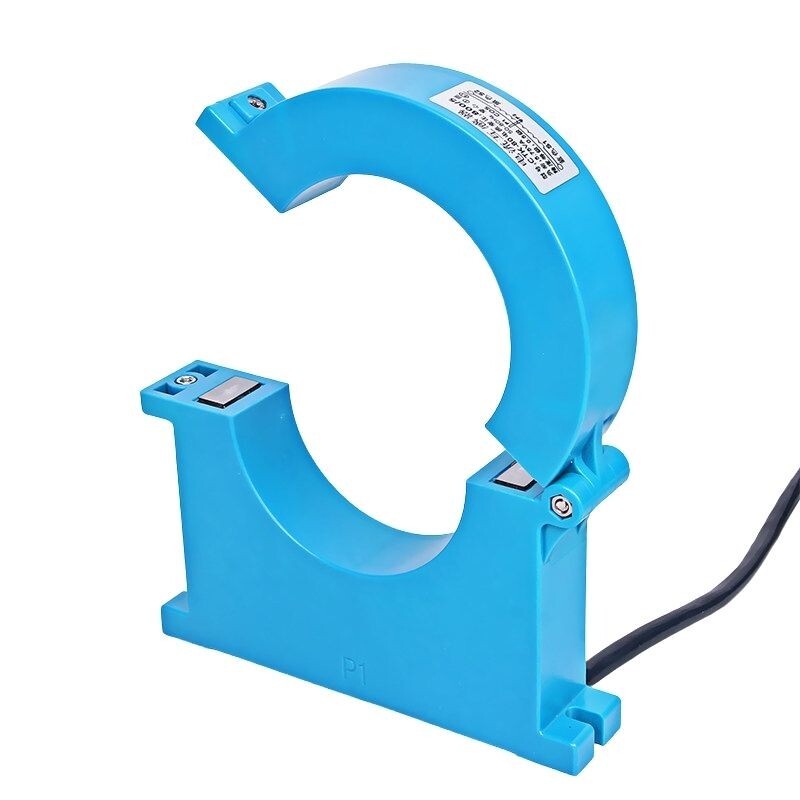

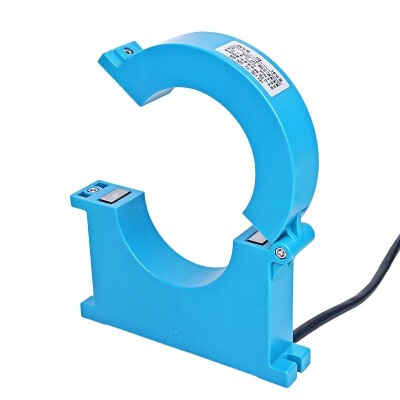

CTK-38 150/5A 2.5-5VA Hall Current Sensor - Current Transformer

CTK-38 150/5A 2.5-5VA Hall Current Sensor - Current Transformer

CTK-38 150/5A 2.5-5VA Hall Current Sensor - Current Transformer, Open design allows easy installation and maintenance, making it ideal for a variety of applications. It provides reliable and precise measurements and provides valuable data for power quality analysis and equipment protection. Its high-quality structure and advanced technology make it a reliable solution for businesses looking to improve their electrical systems.

The flame retardant performance of the product reaches UL94-VO with a normal insulation resistance ratio of 1000M Ω, a working voltage of 0.66/0.72kV and a withstand voltage of 2kV/50Hz/min. The product operates at a frequency of 50-200KHz and a temperature range of 40 ºC -+85 ºC. This product is used for load current detection, power measurement and microcomputer protection.

Features

• Voltage Level: 0.66 / 0.72KV
• Current Range: 150/5A
• Load: 2.5-5VA
• Cable Length: 50cm
• Inner Diameter: 38mm
• Dimensions: 96x26mm
