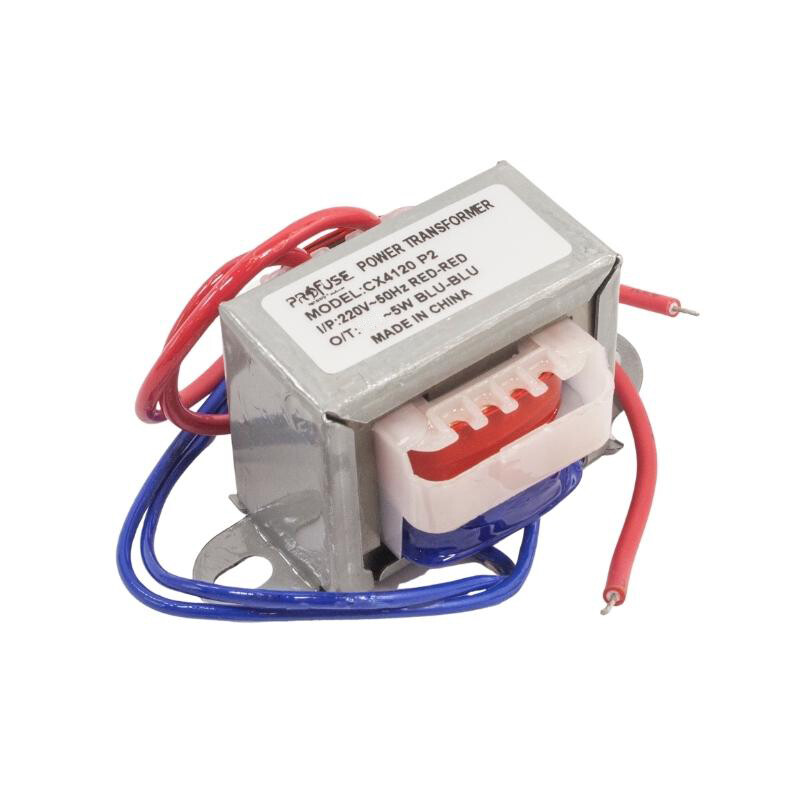

CX-4120 5W 24V AC Power Transformer

CX-4120 5W 24V AC Transformer - Transformator

Transformer or in short transformer is an electrical device that connects two or more electrical circuits together by electromagnetic induction. It transfers energy from one electrical circuit to another via the electromagnetic field. Transformers are machines that make the desired change in the values ​​of voltage and current at a certain power of electrical energy

Profuse brand transformers are made of high quality silicone and steel sheet. They are single-phase circuit elements used to obtain the desired voltage and current value in AC circuits. For product connection, the supply is made from red cables and the output is made from blue cables.

Features

• Model: CX-4120
• Supply Voltage: 220V AC
• Output Voltage: 24V AC
• Maximum Output Current: 0.208A
• Output Power: 5W
• Frequency: 50 Hz
• Connection;
  • Input: Red Wire
  • Output: Blue Wire
• Single Phase
• Material: High Quality Silicone and Steel Sheet
• Coil Material: Copper Enameled Wire
• Weight: 215g
