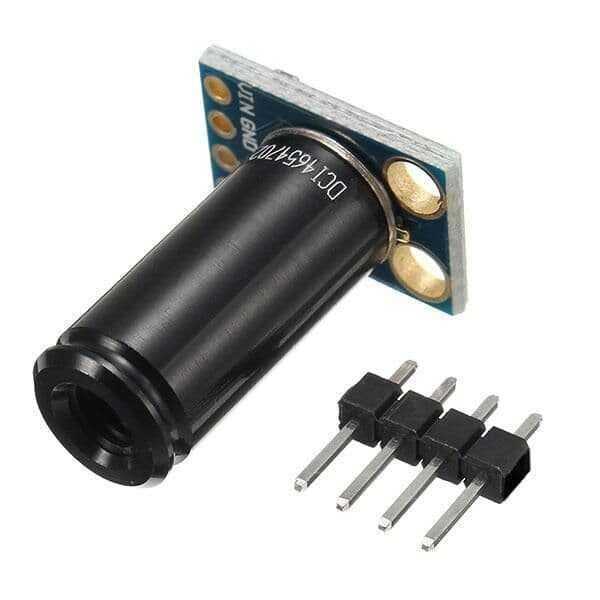

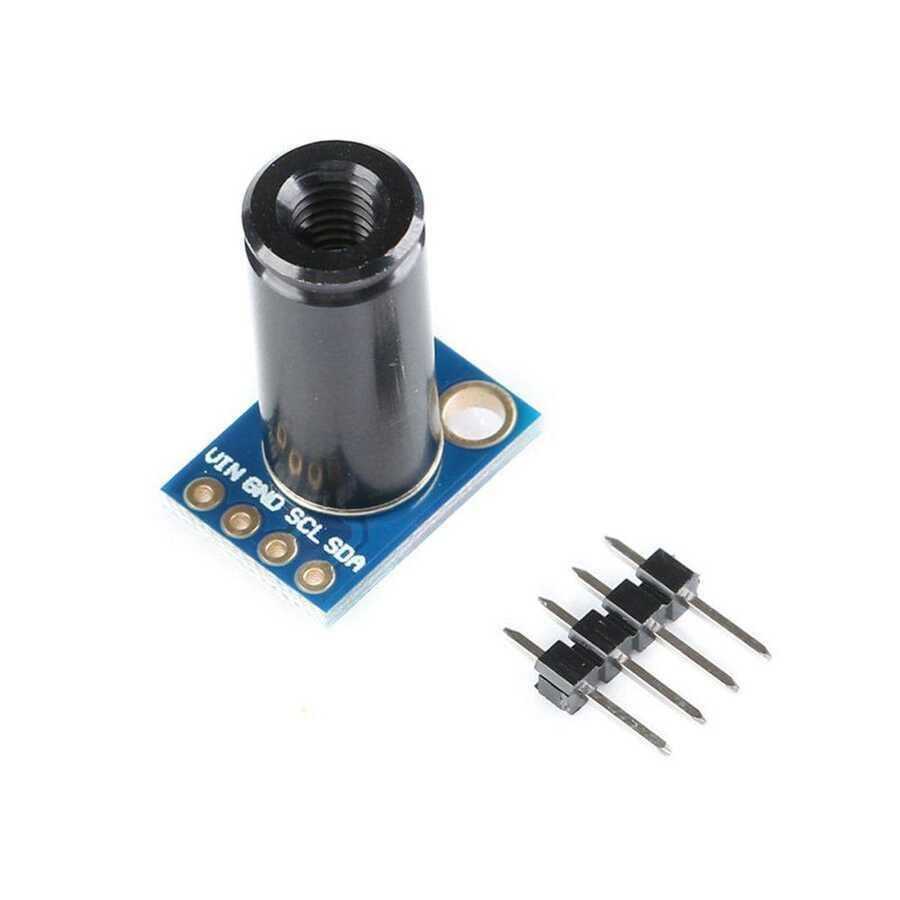

DCI MLX90614ESF Non-Contact Infrared Temperature Meter Sensor Module GY-906
GY-906 MLX90614ESF - BCC Non-Contact Temperature Sensor Module, communication via Arduino or I2C interface It is an infrared thermometer suitable for use with any microcontroller that can be installed.
This product is an infrared thermometer designed for non-contact temperature detection. A built-in 17-bit ADC and a powerful DSP contribute to the high accuracy and resolution of the MLX90614. It can be used in a multitude of applications, including body temperature measurement and motion detection. The sensor has a 5-degree field of view and can measure the average temperature of all objects in this field of view.
Areas of Use:
- High precision non-contact temperature measurements
- Thermal Comfort sensor for Mobile Air Conditioning control system
- Temperature sensing element for residential,
- commercial and industrial building air conditioning Windshield defogging
- Automotive blind angle detection
- Industrial temperature control of moving parts
- Temperature control in printers and photocopiers
- Temperature controlled home appliances
- Livestock monitoring
- Motion detection
- Thermal relay/alert
- Body temperature measurement
- Data control
Specifications:
- Input Voltage (V): 3.3
- Detection Range: 25 - 60 cm
- Field of View: 5°
- Sensor Temperature: -40 to +85°C
