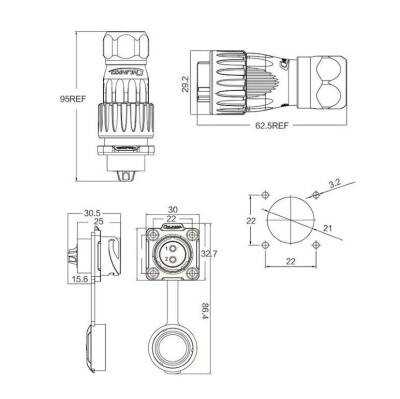

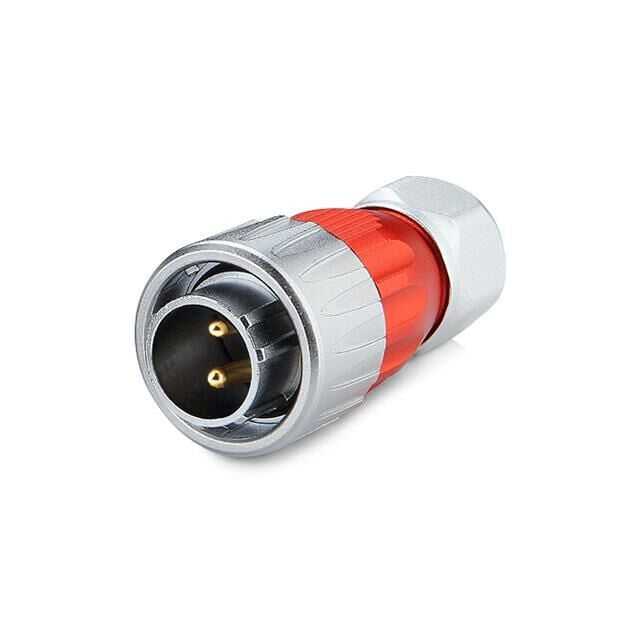

DH-20-C02PE-03-001 2-Pin Waterproof Connector - Male
DH-20 series waterproof connectors, unique wave spring design to meet customer's demand It offers standard card slot, rotary locking type and stylish design. Widely used in LED display, industrial equipment, stage lighting equipment and other fields.
Usage Areas
- LED tri-proof lighting/outdoor lighting
- LED display
- Test measurement
- Industrial control system
- Control system
- Power equipment
Technical Specifications
- Alloy external protective material
- Military standard three-point spiral locking
- IP65/67 rating when connected
-
Cable specifications: 12-14 AWG
-
Diameter range: Φ8mm～Φ12mm
-
Contact diameter × number: Φ2.7×2
-
Rated Current (A): 20A
-
Operating voltage (AC.V.rms): 500V
-
Contact resistance: <1mΩ
-
Withstand Voltage (AC.V) 1 minute: 2500V
-
Insulation resistance:＞500MΩ
-
Protection level: IP65/IP67
-
Operating temperature: -40℃～80℃
- Connection mode: 1/4 Bayonet Connection Type
-
Mounting Cable: Soldering / Crimping
-
Copper pins : Copper alloy (gold-plated 4U)
-
Flammability rating: UL94-V0
