Notify me when its in stock| FEATURES | RANGE | BEST ACCURACY | |

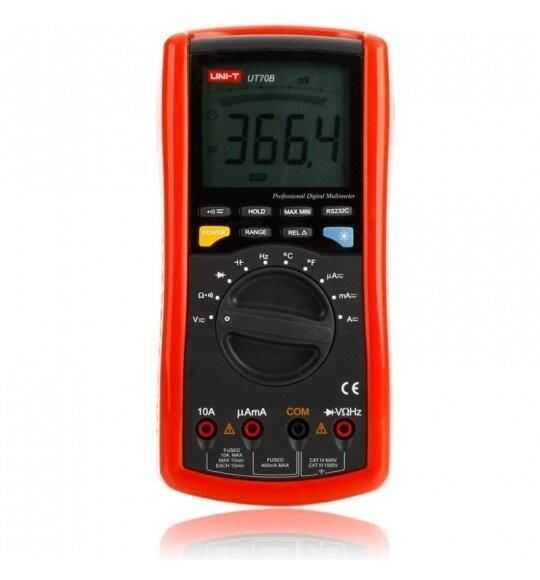

| MODEL | UT70A | UT70B | |
| DC VOLTAGE (V) | 200MV / 2V / 20V / 200V / 1000V | ± (0.5% + 1) | |
| 400MV / 4V / 40V / 400V / 1000V | ± (0.8% + 1) | ||
| AC VOLTAGE (V) | 200MV / 2V / 20V / 200V / 750V | ± (0.8% + 3) | |
| 4V / 40V / 400V / 750V | ± (1% + 5) ) | ||
| DC CURRENT (A) | 20MA / 2MA / 200MA / 10A | ± (0.8% + 1) | TD> |
| 400MA / 4000MA / / 40MA 400MA / 10A | ± (1 + 2%) | ||
| AC CURRENT (A) | 20MA / 2MA / 200MA / 10A | ± (1 + 3%) | |
| 400MA / 4000MA / / 40MA 400MA / 10A | ± (1.5% + 5) | ||
| RESISTANCE (Ω) | 200Ω / 2KΩ / 20KΩ / 200MΩ / PER 2M / 20M / 200MΩ | ± (0.8% +1) | |
| 400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ | ± (1 + 2%) | ||
| CAPACITANCE (F) | 20NF / 200 NF / 2ΜF / 100ΜF | < TD>± (2.5+5%)||
| 4NF / 40NF / 400NF / 4ΜF / 40ΜF / 400ΜF / 4ΜF / 40ΜF | ± (4 +% 3) | ||
| INDUCTANCE | 2MH / 20MH / 200MH / 20H | ± (2% + 10) | < /TR>|
| FREQUENCY | 2KHZ ~ 10MHZ | ± (0.1% + 3) | |
| 4KHZ / 40KHZ / 400KHZ / 4MHZ / 40MHZ / 400MHZ | ± (0.1% + 3) | ||
| TEMPERATURE (°C) | - 40 ℃ ~ 1000 ℃ | ± (1 + 3%) | ± (1 + 3%) |
| TEMPERATURE (° C) | -40 ℉ ~ 1832 ℉ | ± (1 + 4%) | ± (1 + 4%) |
| RPM | 40KRPM | ± (0.1% + 3) | |
| FUSED 10A RANGE | √ | √ | |
| DIODE | √ | √ | |
| TRANSISTOR | √ | ||
| CONTINUITY BUZZER | √ | √< /TD> | |
| RELATIVE MEASUREMENT | √ | ||
| RELATIVE MODE | TTL | √ | |
| SLEEP MODE | √ | √ | |
| LOW BATTERY DISPLAY | √ | √ | |
| INPUT IMPEDANCE FOR DC VOLTAGE MEASUREMENT | 10 MQ | √ | √ |
| DATA HOLD | √ | √ | |
| MAX. DISPLAY | 1999 | 3999 | |
| RS232 | √ | ||
| ANALOG BAR GRAPH | 41 | √ | POWER | 9V BATTERY (6F22) |
| LCD SIZE | 62MM × 53MM | ||
| PRODUCT COLOR | RED AND GRAY | ||
| PRODUCT NET WEIGHT | 600G (INCLUDED CASE)< /TD> | ||
| PRODUCT SIZE | 195MM X 90MM × 40MM | ||
