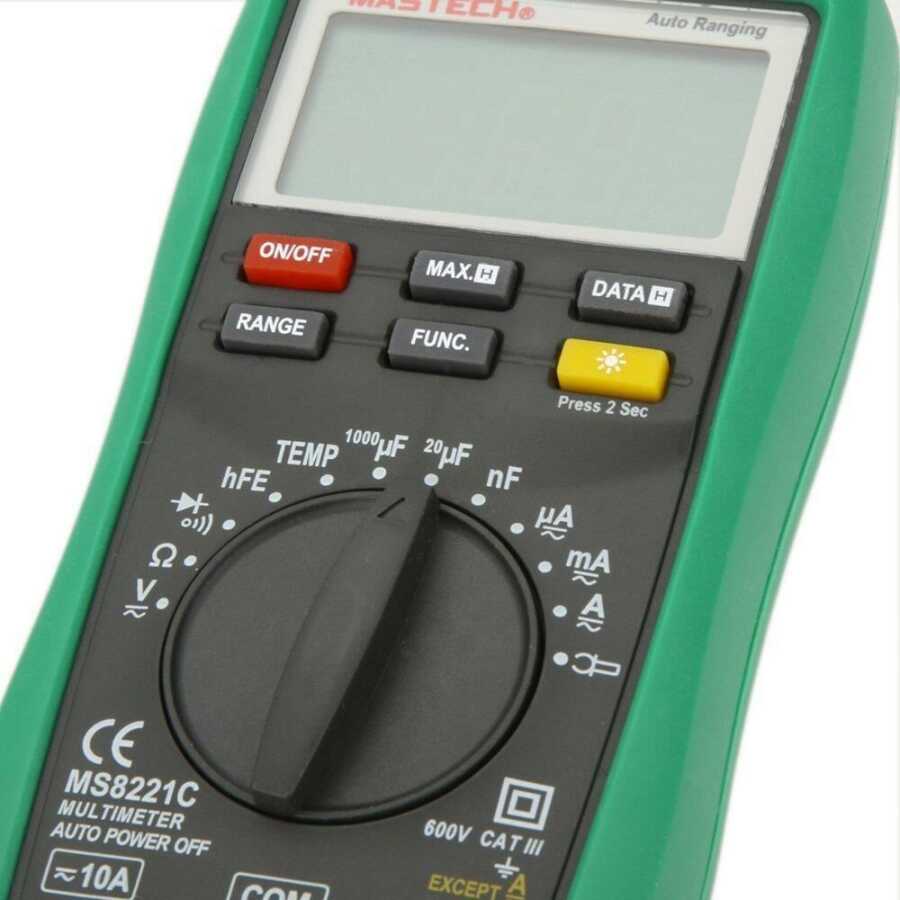

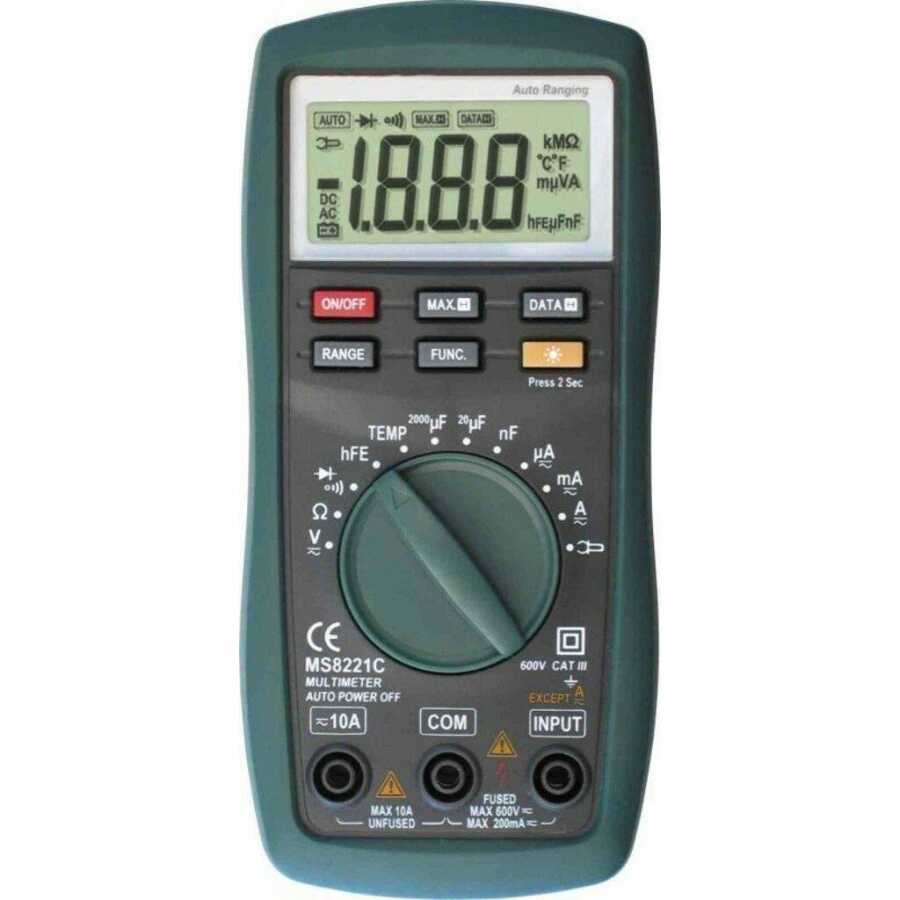

MS8221C Digital Meter Specifications
DCV: 0-200mV-2V-20V-200V-600V, ±0.7%, input impedance: 10 M Ohm
ACV: 0-200mV-2V-20V-200V-600V, ±0.7%, input impedance: 10 M Ohm
DCA: 200uA-2000uA-200mA-2.0A-10.00 A±2.0%
ACA:200uA-2000uA-200mA-2.0A-10.00A±3.0%
R:1.0±0-200-2k-20k-200k -2M-20M
Temperature: -20ºC - 0ºC; 0ºC - 400ºC; 400ºC - 1000ºC;
0ºF - 50F; 50ºF - 750ºF, 750ºF - 1800ºF, C / F selectable
CAP: 20nF-200 nF-2uF-200uF-1000uFf 4.0 ±%
Maximum value hold, data hold, manual selection menu.
Audio persistence: <50ohm
Transistor: hFE: 0-1000
Diode test: 25uA, 3.0V
Batt : 1.5Vx3 AAA
