| FEATURES | RANGE | BEST ACCURACY |

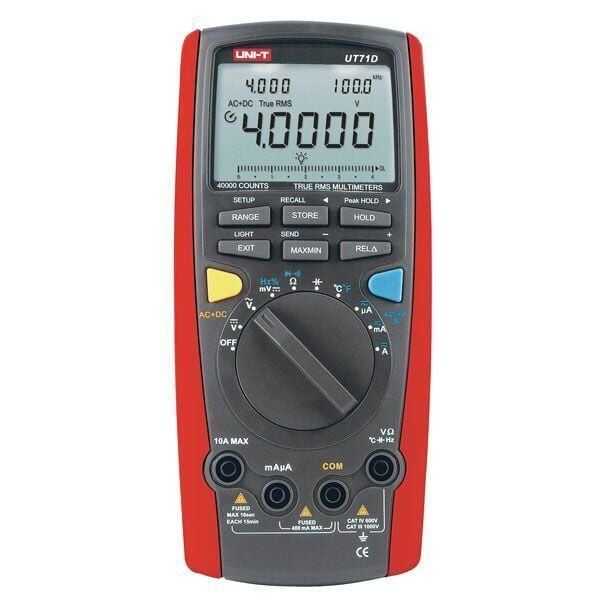

| MODEL | UT71D | |
| DC VOLTAGE (V) | 400MV / 4V / 40V / 400V / 1000V | ± (0.025 +% 5) |
| AC VOLTAGE (V) | 4V / 40V / 400V / 1000V | ± (0.4% + 30) |
| DC CURRENT (A) | 400ΜA / 4000ΜA / / 40MA 400MA / 10A | ± (0.1 +% 15) |
| AC CURRENT (A ) | 400ΜA / 4000ΜA / / 40MA 400MA / 10A | ± (0.7% + 15) |
| RESISTANCE (Ω) | 400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ | ± (0.3% + 8) |
| CAPACITANCE (F) | 40NF / 400NF / 4ΜF / 40ΜF / 400ΜF / 4MF / 40MF | ± (1 +% 20) |
| FREQUENCY (HZ) | 40HZ-400MHZ | < TD class=xl65> ± (0.01% + 8)|
| TEMPERATURE (° C) | -40 ° C ~ 1000 ° C | ± (1 + 30%) |
| TEMPERATURE (° C) | < TD class=xl65>-40 ° F ~ 1832 ° F± (1.5% + 50) | |
| POWER (W ) | 2500W | |
| FEATURES | IMAGE COUNT | 39999 |
| AUTOMATIC RANGE | √ | |
| TRUE RMS | √ | |
| BANDWIDTH (HZ) | 100KHZ | √ |
| DUTY CYCLE | ~ 90% 10% | < TD class=xl65>± (1 +% 30)|
| DIODE | √ | |
| AUTOMATIC OFF | √ | < /TR>|
| CONTINUITY BUZZER | √ | |
| LOW BATTERY INDICATOR | √ | |
| DATA HOLD< /TD> | √ | |
| RELATIVE MODE | √ | |
| MAX / MIN | √ | |
| DATALOG | 9999< /TD> | |
| USB INTERFACE | √ | DUAL BACKLIGHT | √ |
| ANALOG BAR GRAPH | √ | |
| ICON FULL SCREEN | √ | |
| INSTALLATION | √ | |
| INPUT IMPEDANCE FOR DCV | DC 400MV: SURROUNDINGS 2.5 GΩ, ALL OTHER RANGE: 10 MQ | √ |
| 4 - 20MA CYCLE | 0 ~ 100% | ± (1 +% 50) |
| INSURED 10 A | √ | |
| CURRENT MEASUREMENT ALARM | √ | |
| VOLTAGE AND CURRENT AC + DC MEASUREMENT | √ | |
| GENERAL CHARACTERISTIC | ||
| POWER | 9V BATTERY (6F22) | |
| LCD SIZE | 73MM x 50MM TD> | |
| PRODUCT NET WEIGHT | 384G | |
