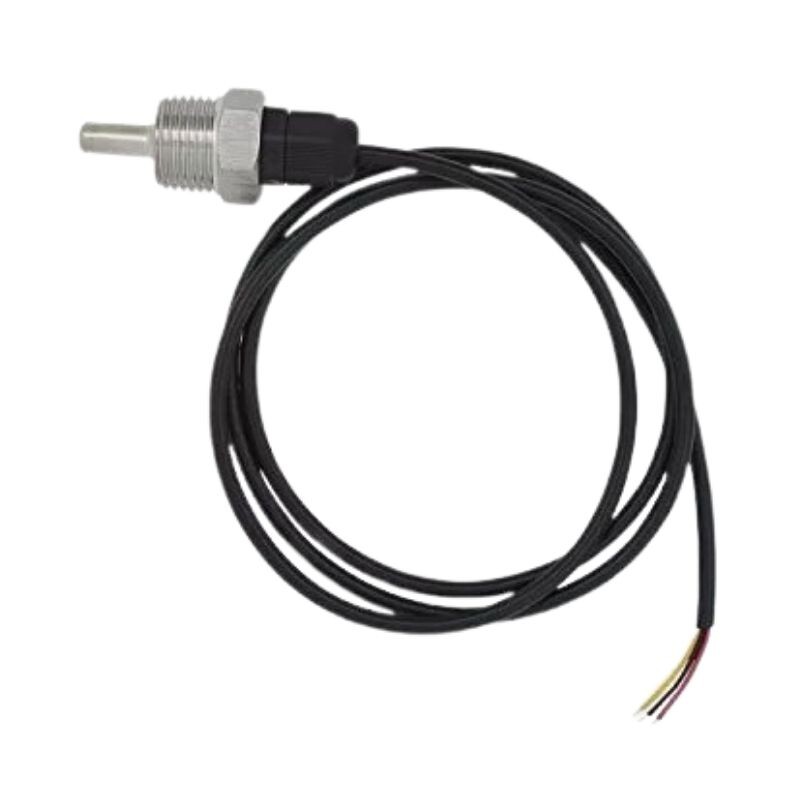

DS18B20 M22 Digital Temperature Sensor - 1 Meter

DS18B20 M22 Digital Temperature Sensor - 1 Meter

DS18B20 M22 Digital Temperature Sensor - 1 Meter, Since it is a digital sensor, the temperature at deep distances can be easily measured with the help of its 1-meter cable and there is no disruption in data transfer. 9 or configurable 12-bit reading can be performed over a single cable (1-wire) interface. Temperature measurements of various interior buildings, equipment, machinery and liquid pools can be easily performed.

Features

• Working Voltage: 3.0 - 5.5VDC
• Measuring Temperature Range: -55 ~ 125°C
• Accuracy:
  • ±0.5°C error between -10 ~ 85°C
  • ±2°C error between -55 ~ 125°C
• Pinout;
  • Red: VCC
  • Black: GND
  • Yellow: DATA
• Measuring Speed: 750ms
• Thread Diameter: M22
• Cable Length: 1m
