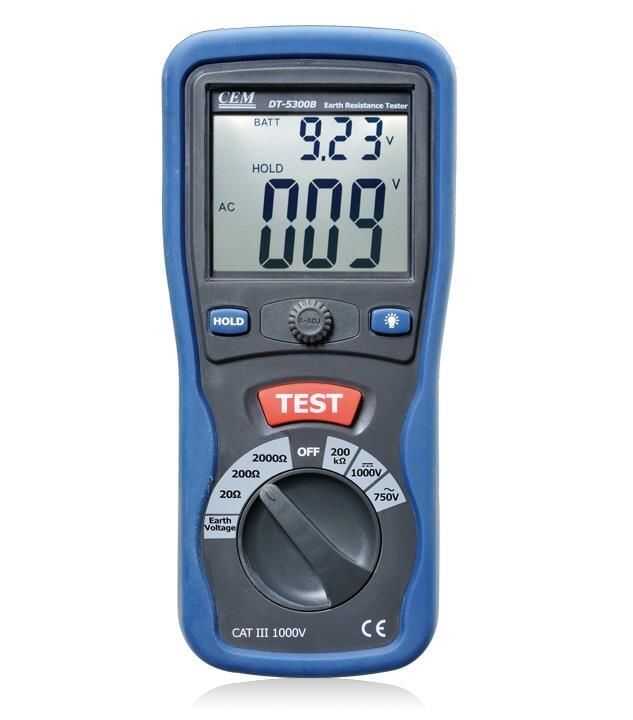

DT5300B Digital Earth Tester
This device has a wide range of applications for testing grounding installations in power-based industries, telecommunications networks, and electric traction systems.
Technical Specifications
EARTH RESISTANCE
- Range 20Ω - Resolution 0.01Ω
- Accuracy ±% 2.0 rdg + 10 digits
- Range 200Ω - Resolution 0.1Ω
- Accuracy ±% 2.0 rdg + 3 digits
- Range 2000Ω - Resolution 1Ω
- Accuracy ±% 2.0 rdg + 3 digits
EARTH VOLTAGE
- Range 200V - Resolution 0.1V
- Accuracy ±% 3.0 rdg + 3 digits
RESISTANCE
- Range 200kΩ - Resolution 0.1kΩ
- Accuracy ±% 1.0 of reading + 2 digits
- Protection 250V rms
AC VOLTAGE (40Hz - 400Hz)
- Range 750V - Resolution 1V - Accuracy ±% 1.5 + 10 digits
- Input Impedance 10MΩ - Protection 750V rms
DC VOLTAGE
- Range 1000V - Resolution 1V - Accuracy ±% 1.0 + 5 digits
- Input Impedance 10MΩ - Protection 1000V rms
POWER SUPPLY
DIMENSIONS / WEIGHT
ACCESSORIES
- No.3 wire cables
- No.2 probes
- Test leads
- Carrying case
