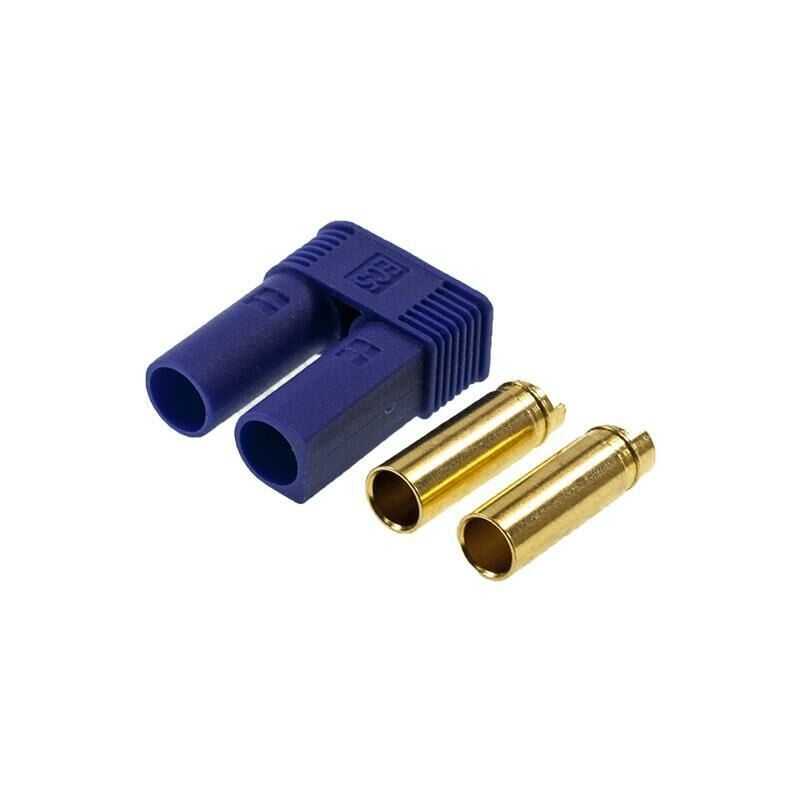

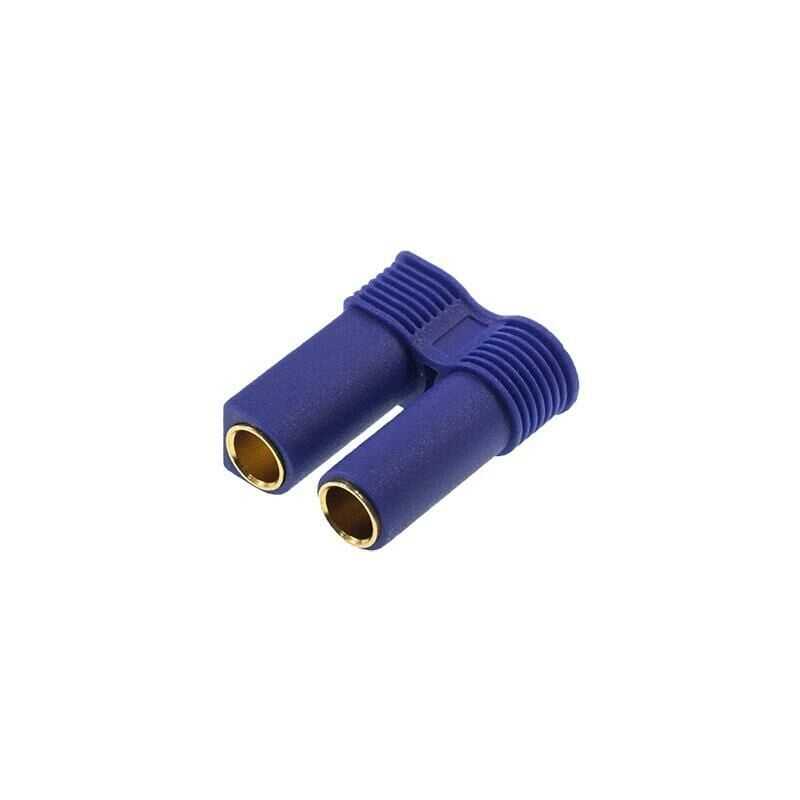

EC5 Connector Female
Female connector that can carry high current and can be used in drone, RC vehicle projects and various applications. Click here for EC5 Male Connector.
Technical Specifications:
- Connector: Plug
- Connector type: DC supply
- Connector series: EC5
- Connector type : Female
- Number of pins: 2
- Mechanical mounting: For cable
- Electrical mounting: Soldered
- Contact plating: Gold flash
- Color: blue
- Current rating: 90A
- Rated voltage: 500V
- Flammability rating: UL94V-0
- Operating temperature: -20 ... 120 ° C
- Spatial orientation: Straight
- Contact material: Brass
- Wire size: 10AWG
- Housing material: polyamide
- Mechanical durability: 1000 cycles
