Encoder Disk and Speed Sensor Pair HC-020K

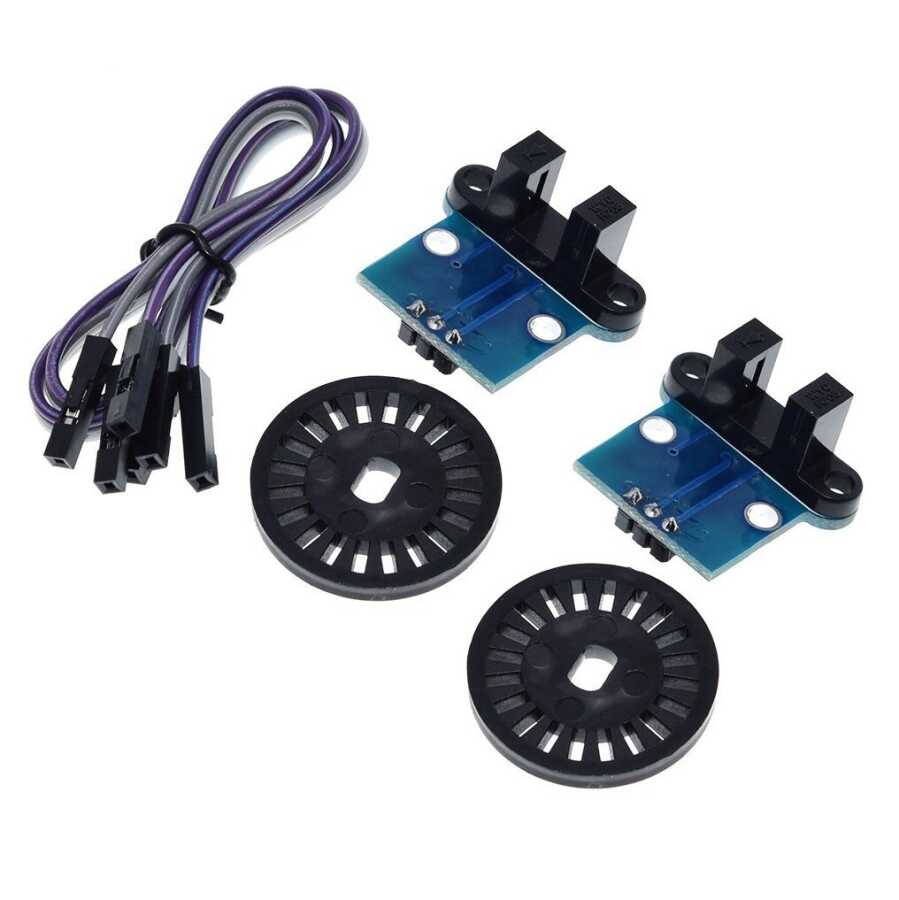

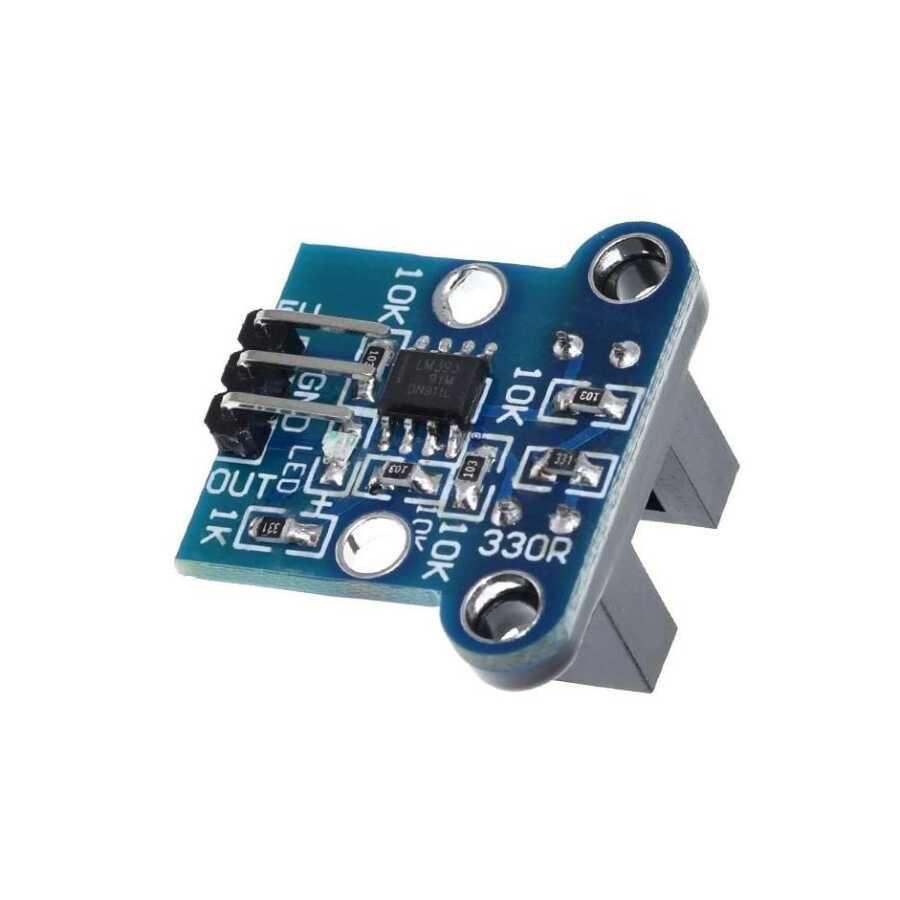

HC-020K Speed Measurement Module Pair is a measurement module with high resolution and short response time. It can measure the engine speed with an encoder disk. The product includes two encoder disks and a photoelectric speed sensor. When measurements are made by connecting sensors to two wheels on the same plane, data can be compared and more precise results can be obtained.
Technical Specifications:
- Operating voltage: 4.5V - 5.5 V
- Conduction tube pressure drop: Vf = 1.6 V
- Conduction tube current: 20 mA
- Signal output: A, B two directional; TTL level
- Distinguishing sensitivity: 0.01 mm
- Measurement frequency, 100 KHZ

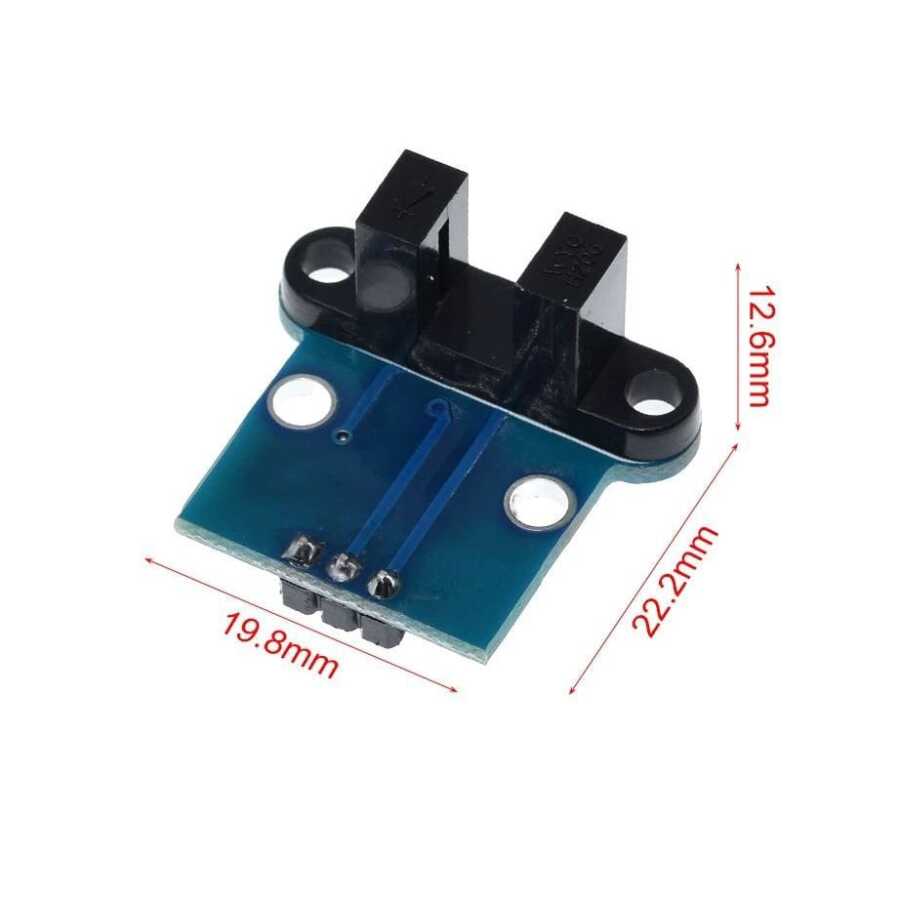

- Encoder diameter: 24 mm
- Encoder D type hole diameter: 4 mm
- Encoder resolution: 20 lines
